Front Side Door Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

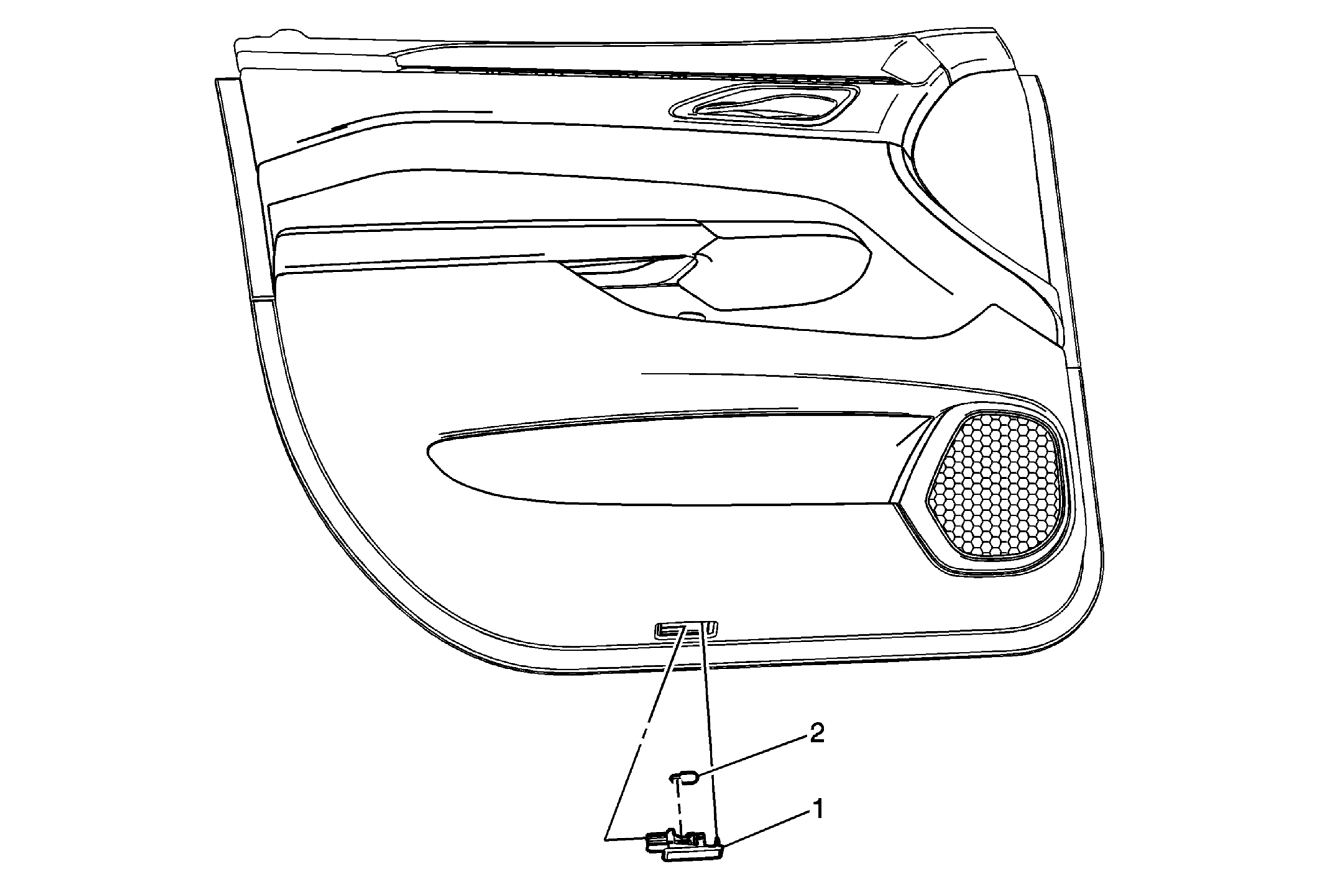

Fig 1: Identifying Front Side Door Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Courtesy Lamp Procedure Depress the clips and use a flat-bladed tool to remove the door courtesy lamp from the door trim panel. Disconnect the electrical connectors.
2	Front Side Door Courtesy Lamp Bulb

Callout

Component Name

Front Side Door Courtesy Lamp

Procedure

Depress the clips and use a flat-bladed tool to remove the door courtesy lamp from the door trim panel.
Disconnect the electrical connectors.

Front Side Door Courtesy Lamp Bulb
