Heater and Blower and Air Conditioning Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

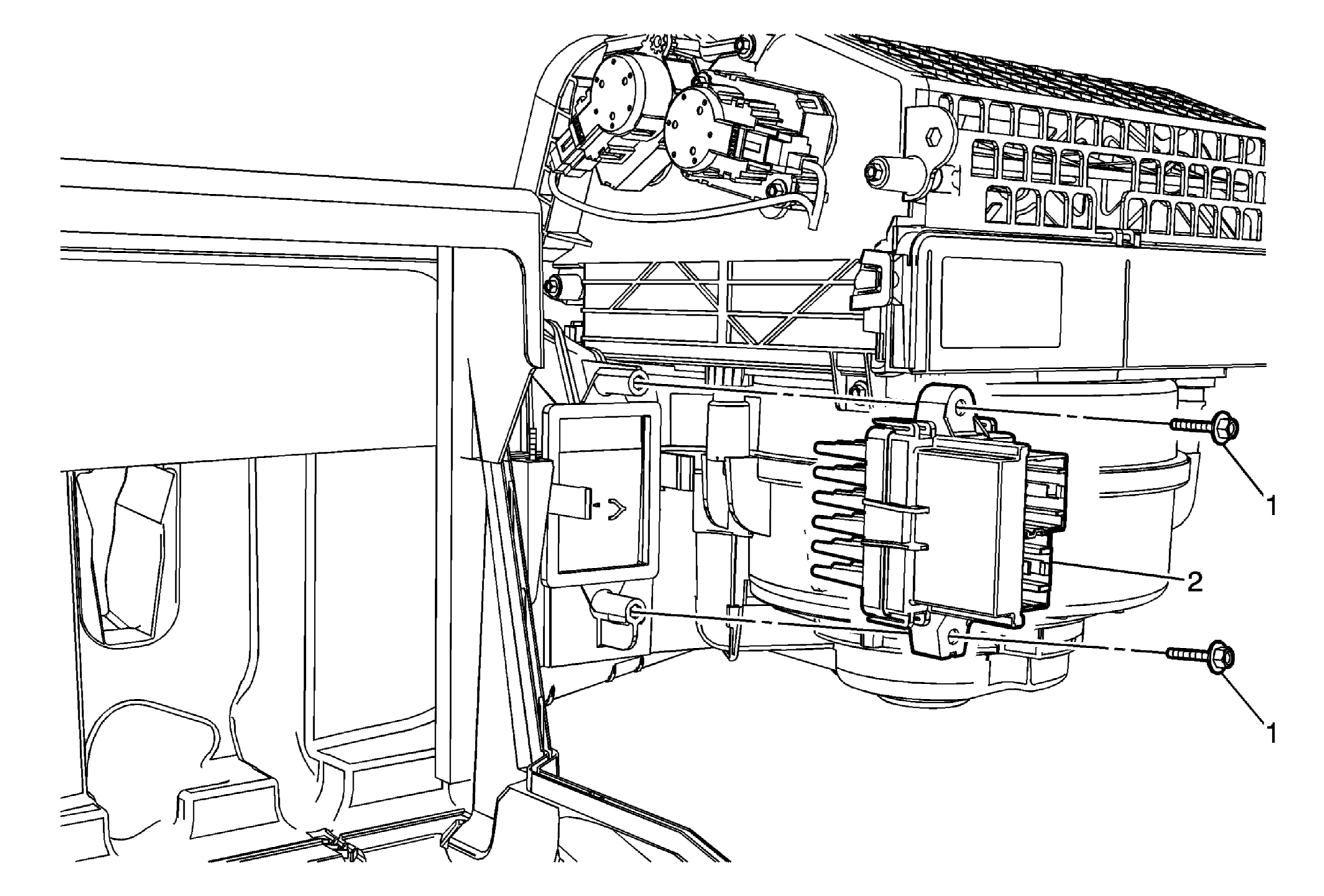

Fig 1: Identifying Heater & Blower & Air Conditioning Control Module & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Disconnect the heater and blower and air conditioning control module electrical connectors.
1	Heater and Blower and Air Conditioning Control Module Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Heater and Blower and Air Conditioning Control Module

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Disconnect the heater and blower and air conditioning control module electrical connectors.

Heater and Blower and Air Conditioning Control Module Screws (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Heater and Blower and Air Conditioning Control Module
