Front Fog Lamp Bulb Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

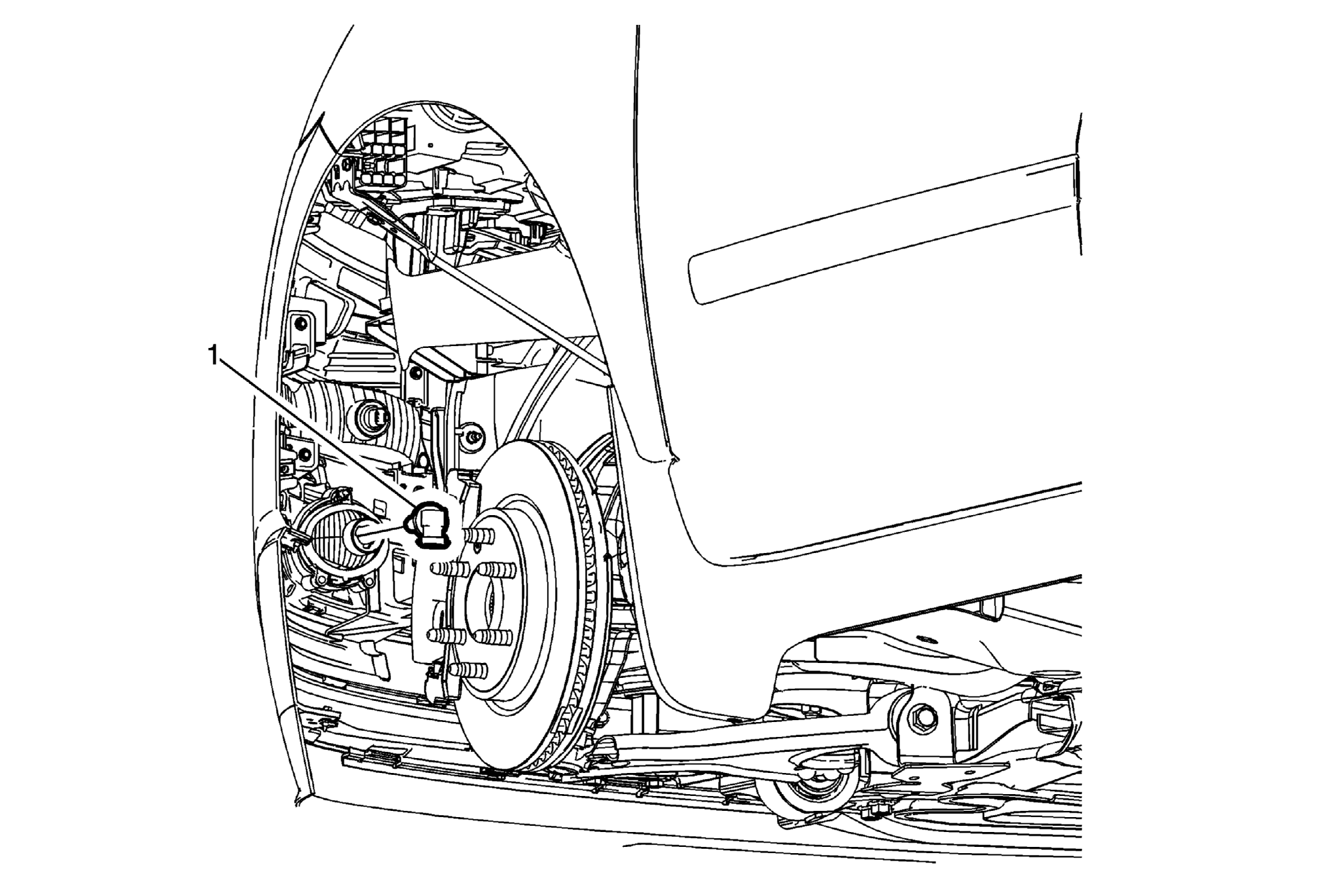

Fig 1: Front Fog Lamp Bulb (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector. Twist the front fog lamp bulb counter-clockwise and remove the front fog lamp.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .

Front Fog Lamp Bulb

Procedure

Disconnect the electrical connector.
Twist the front fog lamp bulb counter-clockwise and remove the front fog lamp.
