Front Floor Console Compartment Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

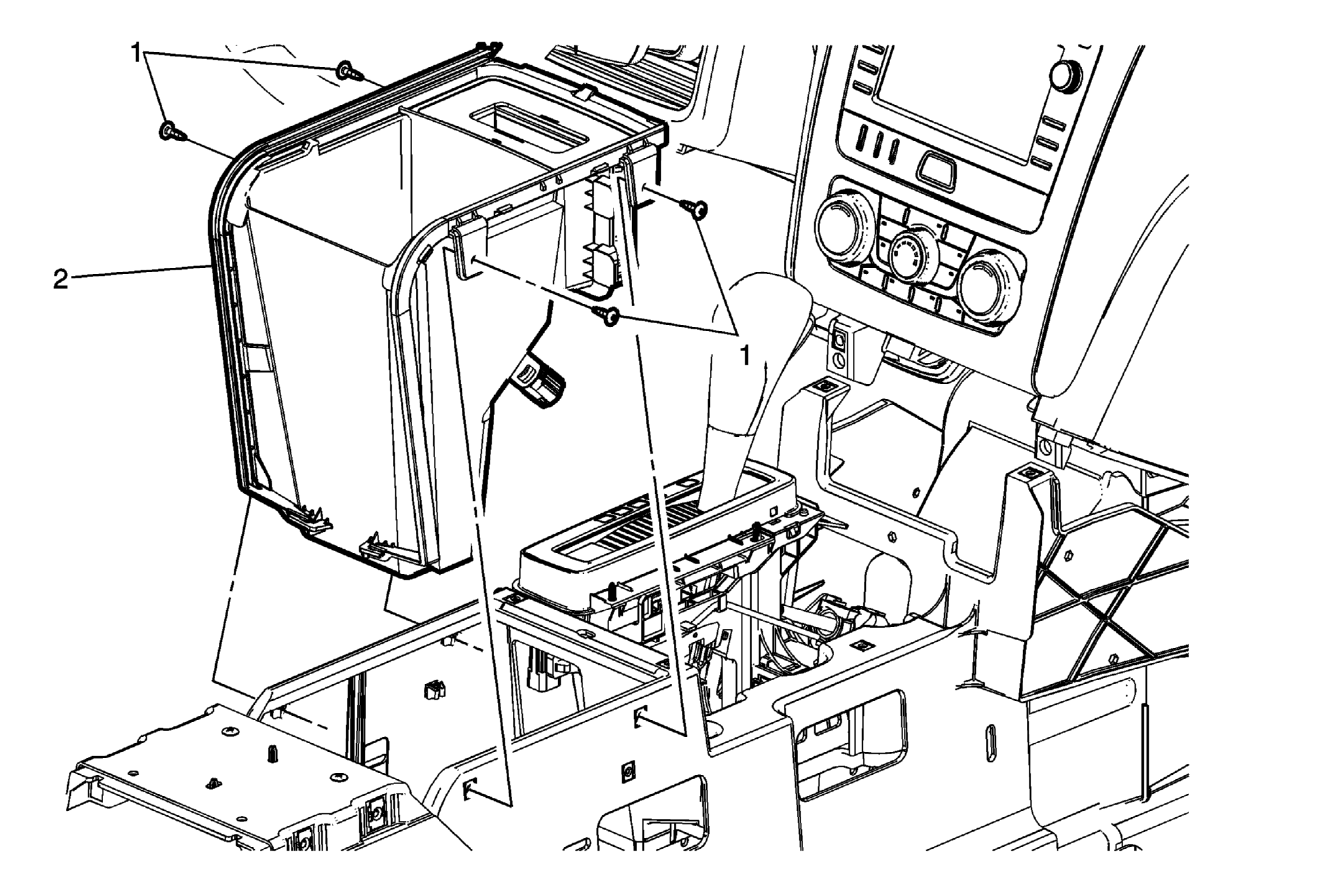

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console cover. Refer to Front Floor Console Cover Replacement . |
|
| 1 | Front Floor Console Compartment Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Floor Console Compartment Procedure Disconnect all electrical connectors. |
