Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

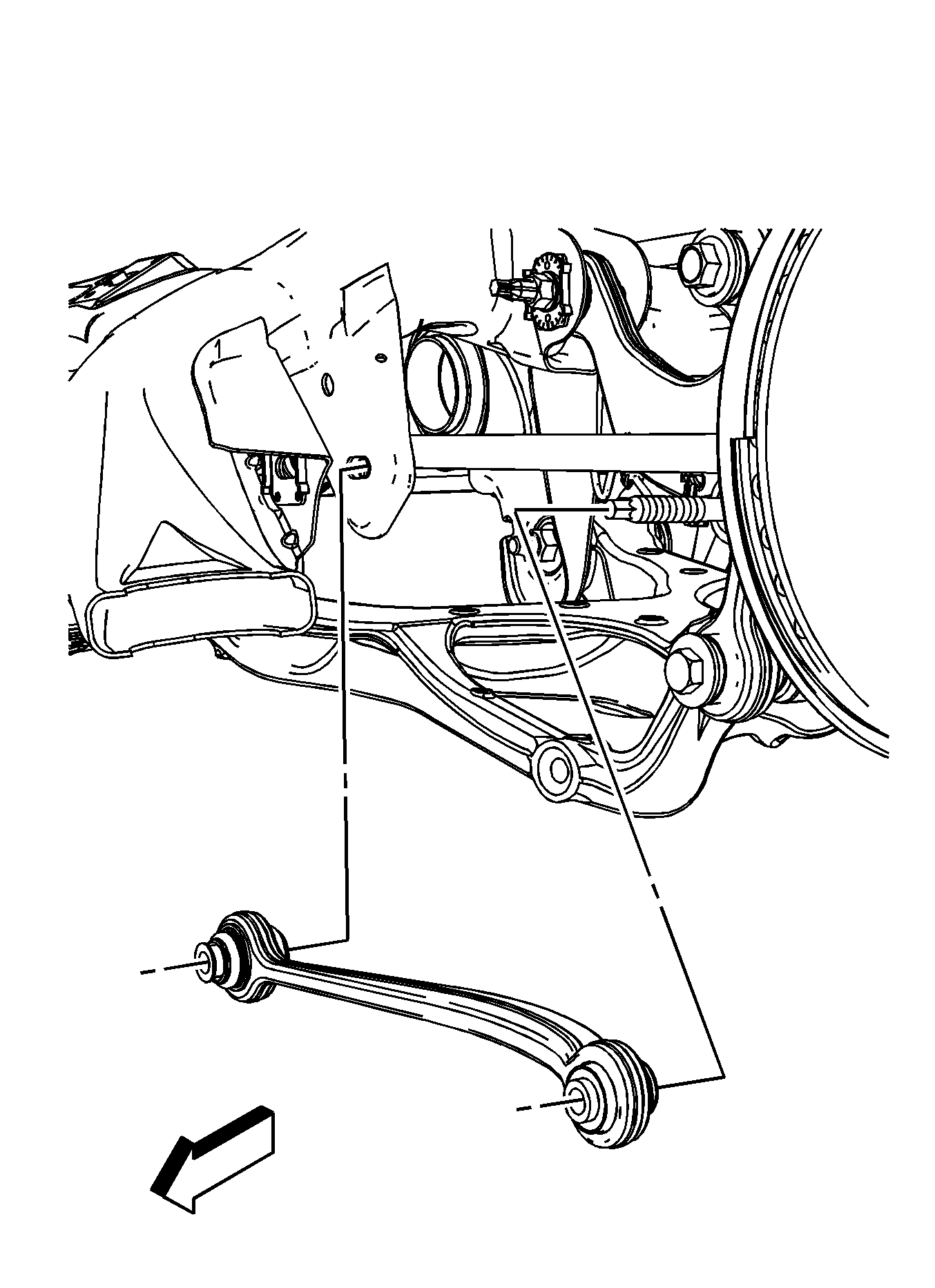

Fig 1: Identifying Adjuster Link

Courtesy of GENERAL MOTORS COMPANY

Install the adjuster link on the knuckle and in the mounting bracket.

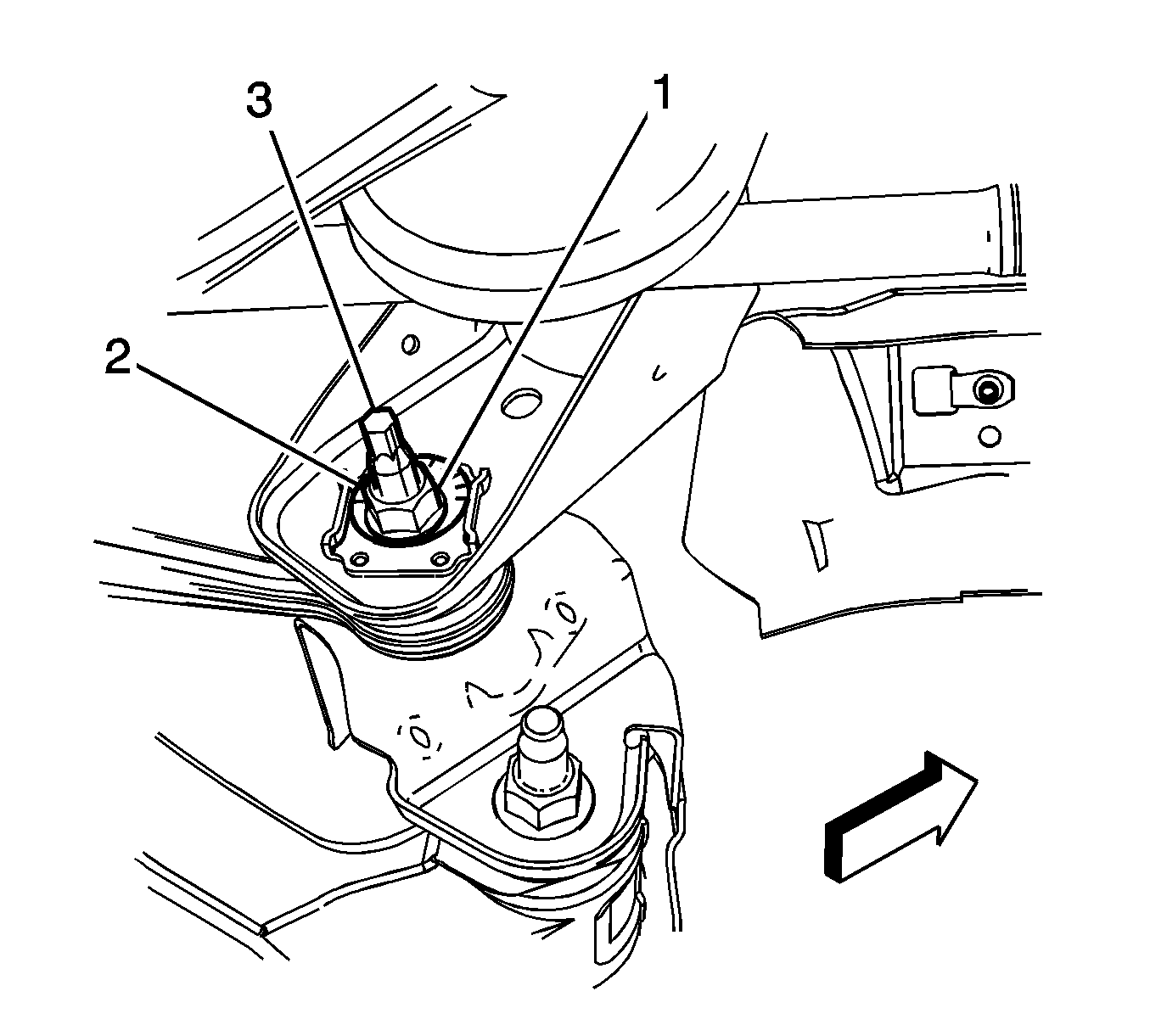

Fig 2: Identifying Adjuster Bolt In Mounting Bracket & Adjuster Link

Courtesy of GENERAL MOTORS COMPANY

Install the adjuster bolt (3) in the mounting bracket and adjuster link.
Install the rear adjuster cam (2) and adjuster nut (1). Finger tighten the nut at this time.

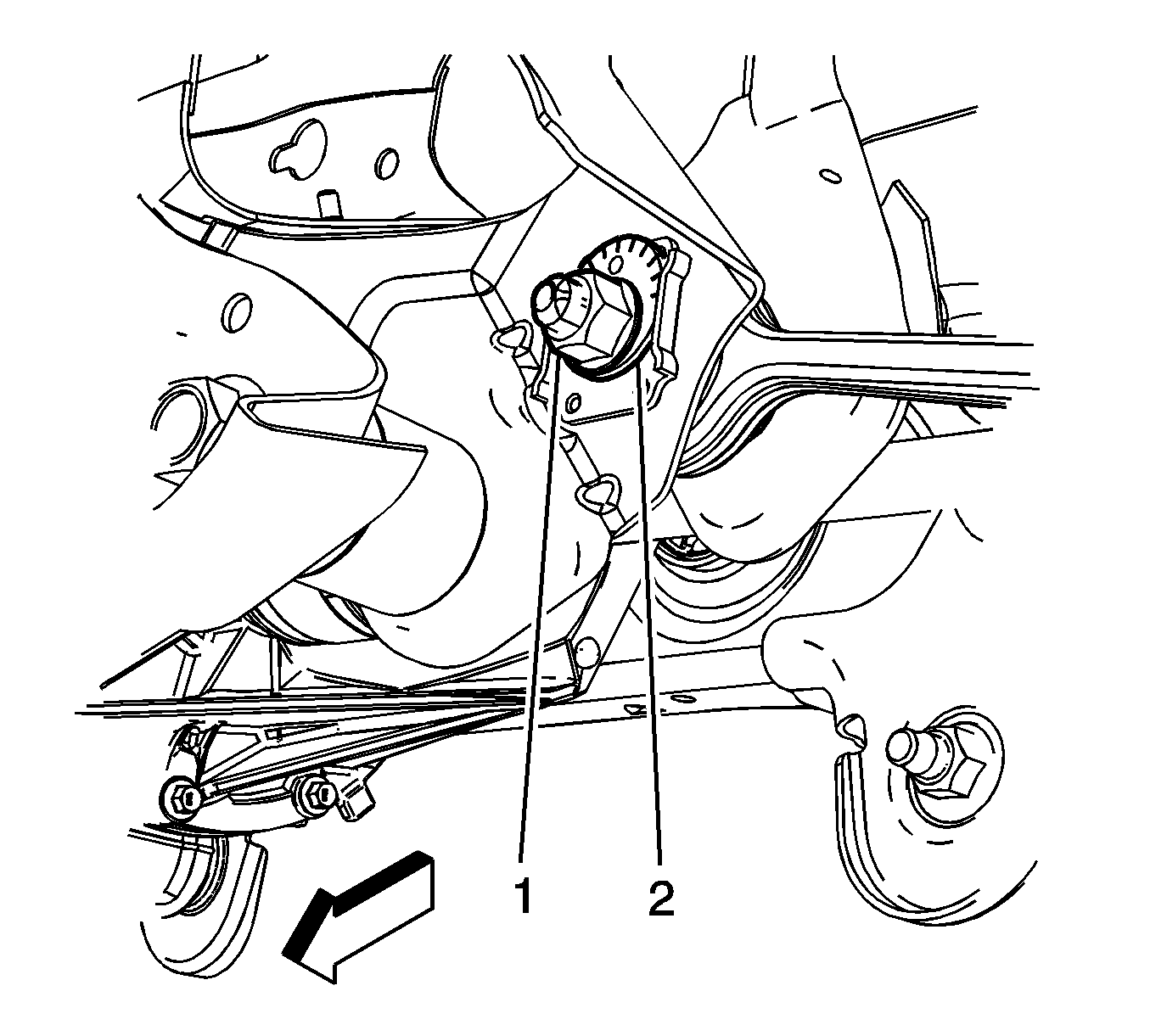

Fig 3: Identifying Front Adjuster Nut & Adjuster Cam

Courtesy of GENERAL MOTORS COMPANY

Install the front adjuster cam (2) and the adjuster nut (1). Finger tighten the nut at this time.

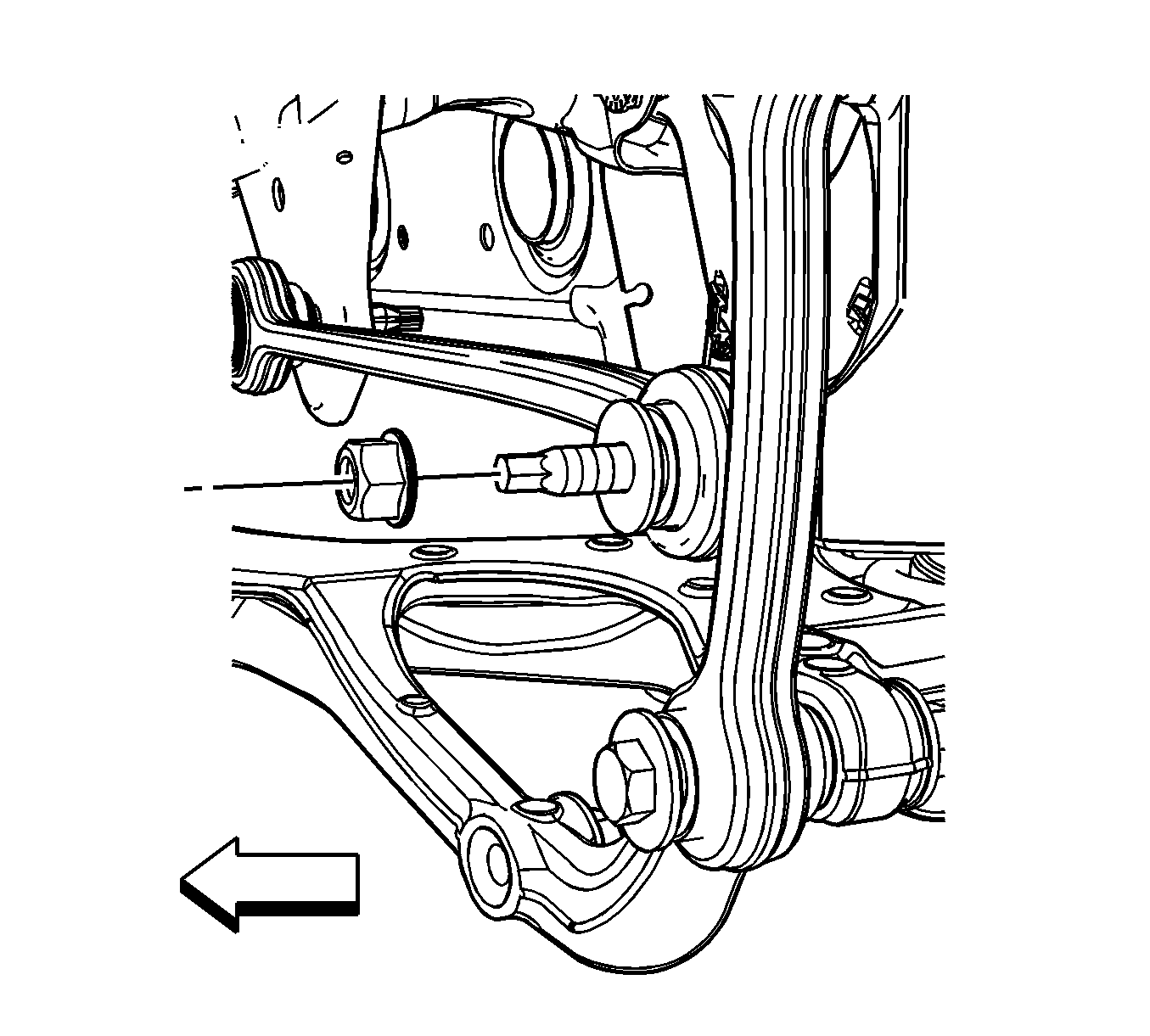

Fig 4: Identifying Retaining Nut From Adjuster Link To Knuckle

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the retaining nut for the adjuster link.
Tighten

Tighten the retaining nut to 75 N.m (55 lb ft) plus 60 degrees.
Install the rear shock absorber. Refer to Shock Absorber Replacement .

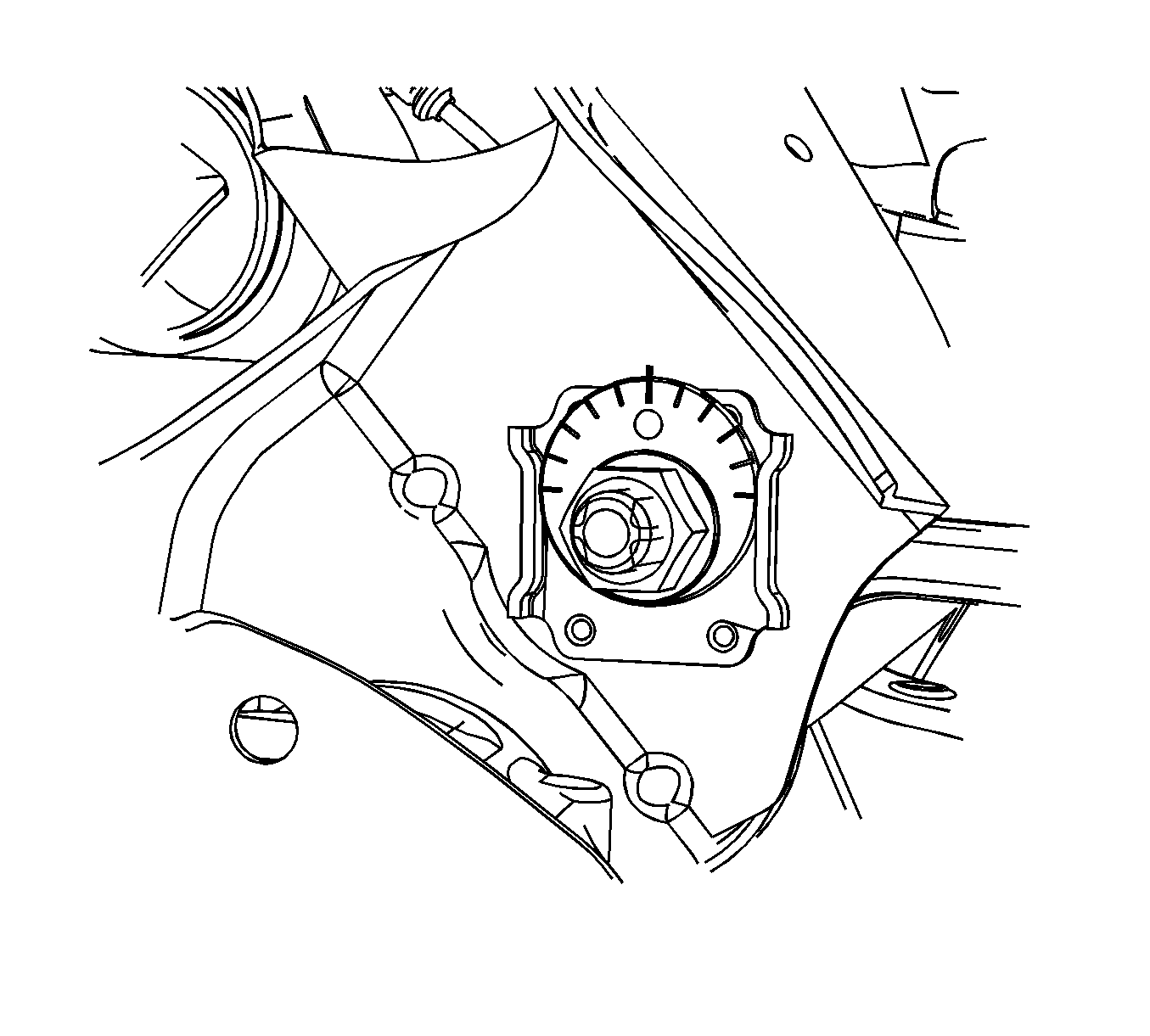

Fig 5: Identifying Reference Marks On Adjuster Cam & Mounting Bracket

Courtesy of GENERAL MOTORS COMPANY

NOTE:

If servicing other suspension components, align the relationship marks on the adjuster cam and the mounting brackets to aid in the re-installation of the adjustment link.

Align the reference marks on the adjuster cam and the mounting bracket.

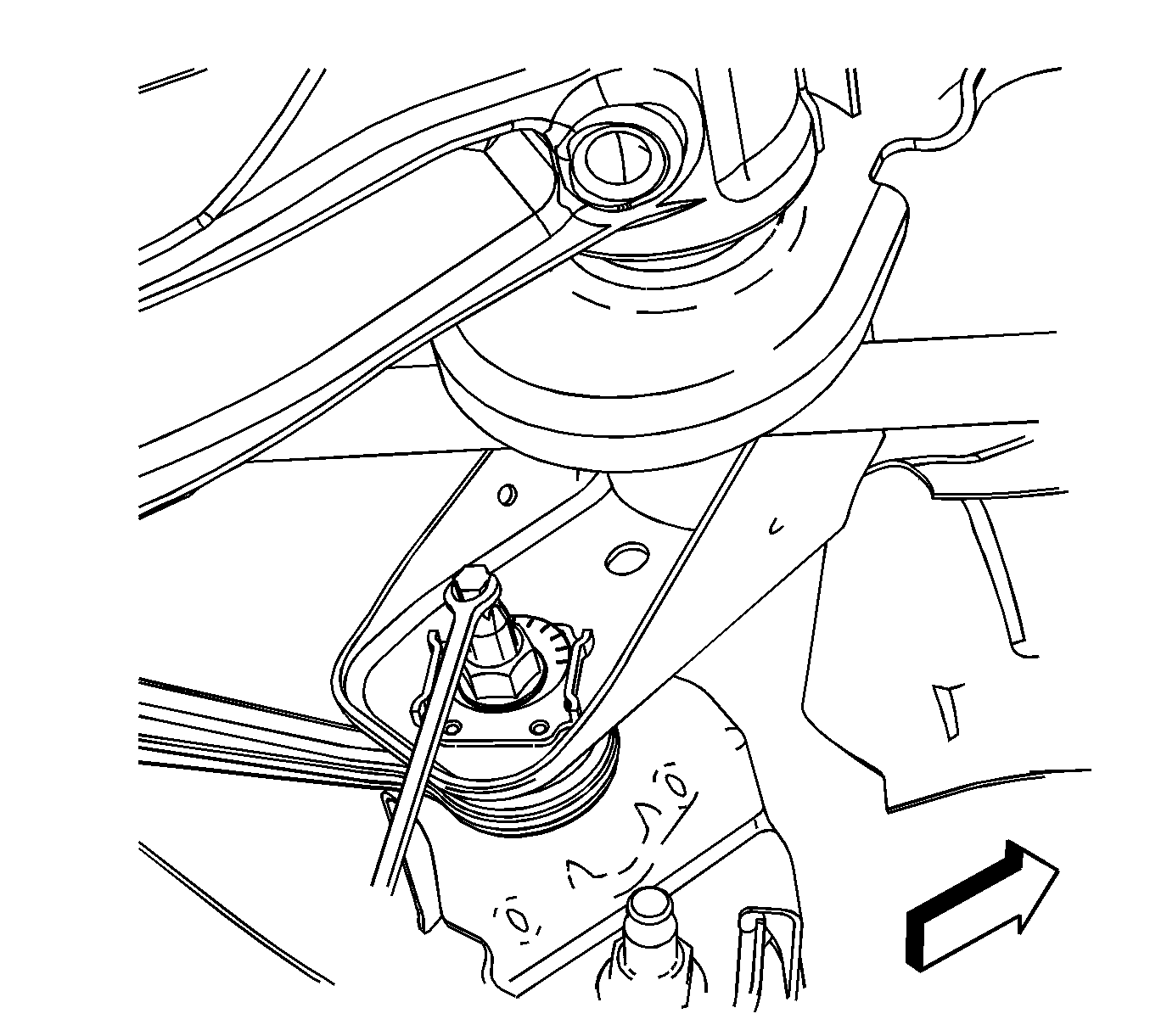

Fig 6: Identifying Adjuster Cam Bolt

Courtesy of GENERAL MOTORS COMPANY

Install a wrench to hold the adjuster cam bolt.
Tighten the adjuster cam nuts.
Tighten

Tighten the adjuster cam nuts to 140 N.m (103 lb ft).
Remove the support and lower the vehicle.
Align the rear suspension. Refer to Wheel Alignment Specifications .
