Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

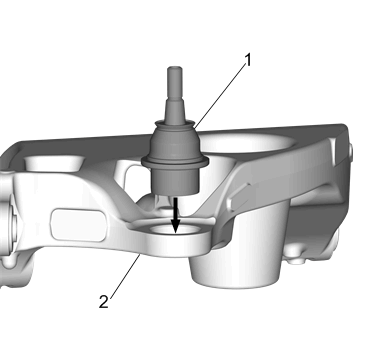

Fig 1: Pressing Ball Joint Into Lower Control Arm

Courtesy of GENERAL MOTORS COMPANY

Using a hydraulic press and the appropriate sized cup, push the ball joint (1) into the lower control arm (2).

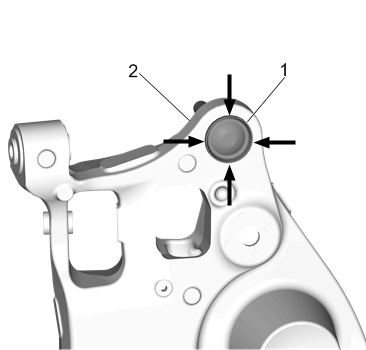

Fig 2: 4 Tabs Holding Ball Joint

Courtesy of GENERAL MOTORS COMPANY

Using a hammer and a chisel, create 4 tabs on the bottom of the ball joint (1) to help secure it to the lower control arm (2).
Rear Axle Lower Control Arm - Install Rear Axle Lower Control Arm Replacement
Install the rear tire and wheel assembly.
