Steering Knuckle Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

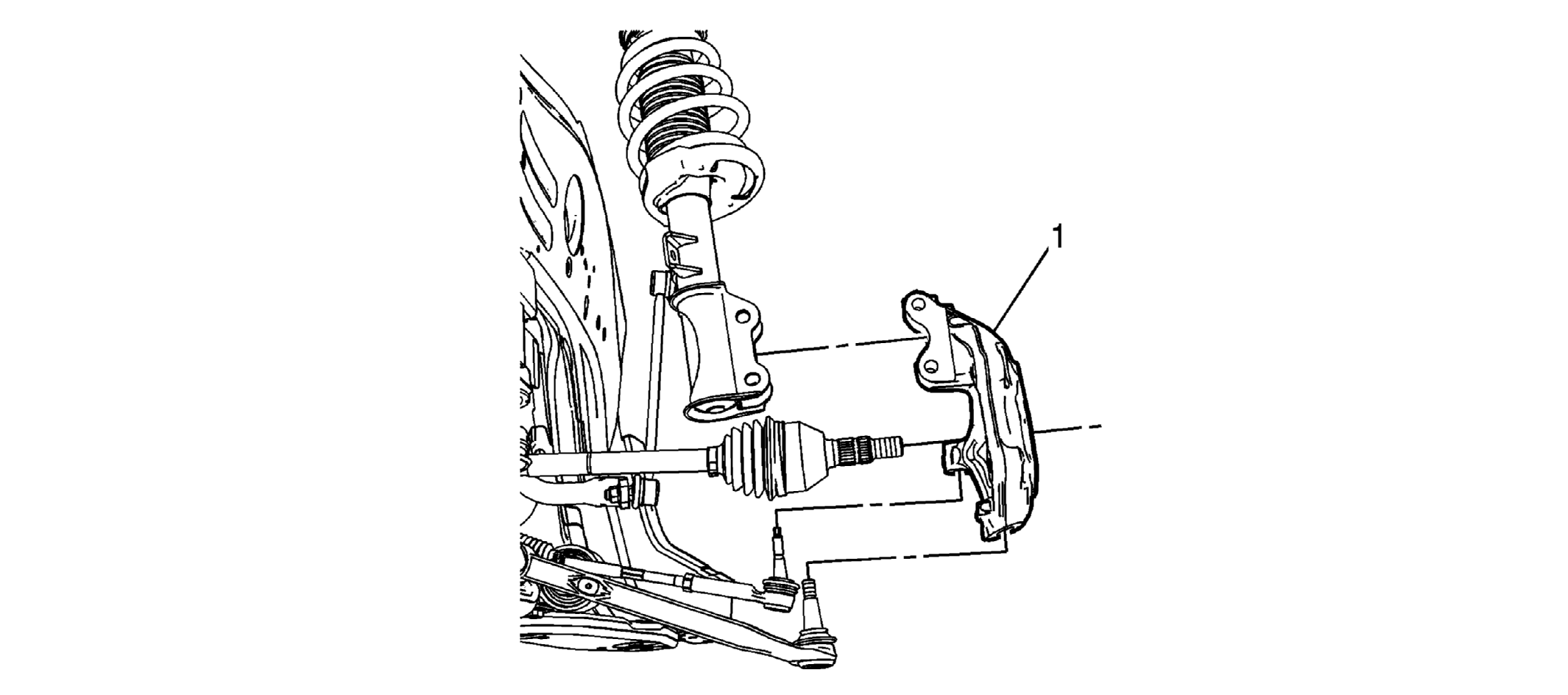

Fig 1: Identifying Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Separate the outer tie rod end from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement . Remove the wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement . Remove the front wheel bearing from the steering knuckle. Refer to Front Wheel Bearing and Hub Replacement . Separate the lower control arm from the steering knuckle. Refer to Lower Control Arm Replacement . Remove the front suspension strut mounting bolts from the steering knuckle. Refer to Strut Assembly Replacement .
1	Steering Knuckle Procedure: Check the front end alignment. Refer to Wheel Alignment Specifications

Callout

Component Name

Preliminary procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Separate the outer tie rod end from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
Remove the wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement .
Remove the front wheel bearing from the steering knuckle. Refer to Front Wheel Bearing and Hub Replacement .
Separate the lower control arm from the steering knuckle. Refer to Lower Control Arm Replacement .
Remove the front suspension strut mounting bolts from the steering knuckle. Refer to Strut Assembly Replacement .

Steering Knuckle
Procedure:
Check the front end alignment. Refer to Wheel Alignment Specifications
