Secondary and Configurable Controls

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

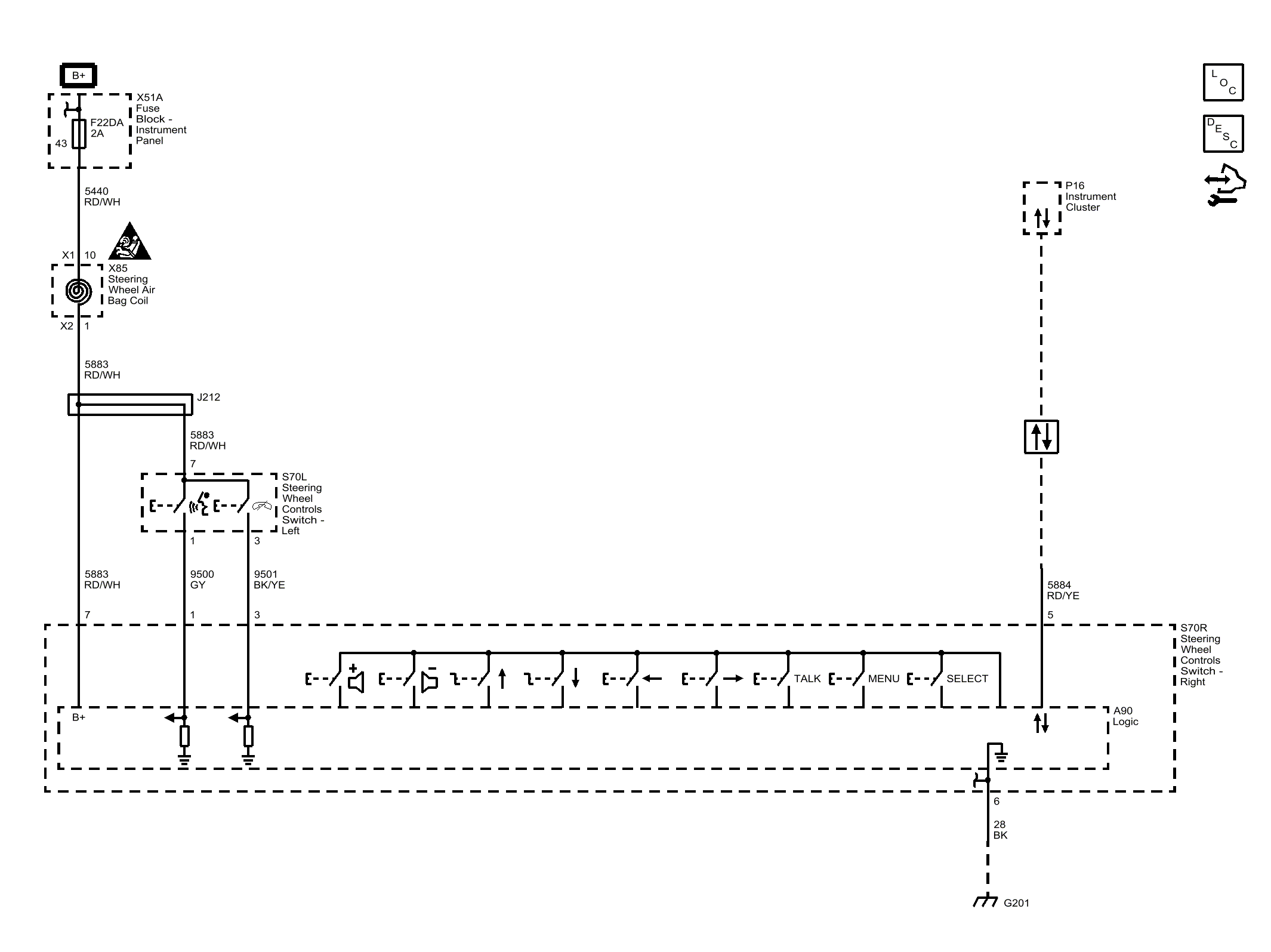

Fig 1: Secondary and Configurable Controls
GM3754801Courtesy of GENERAL MOTORS COMPANY
