Front Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

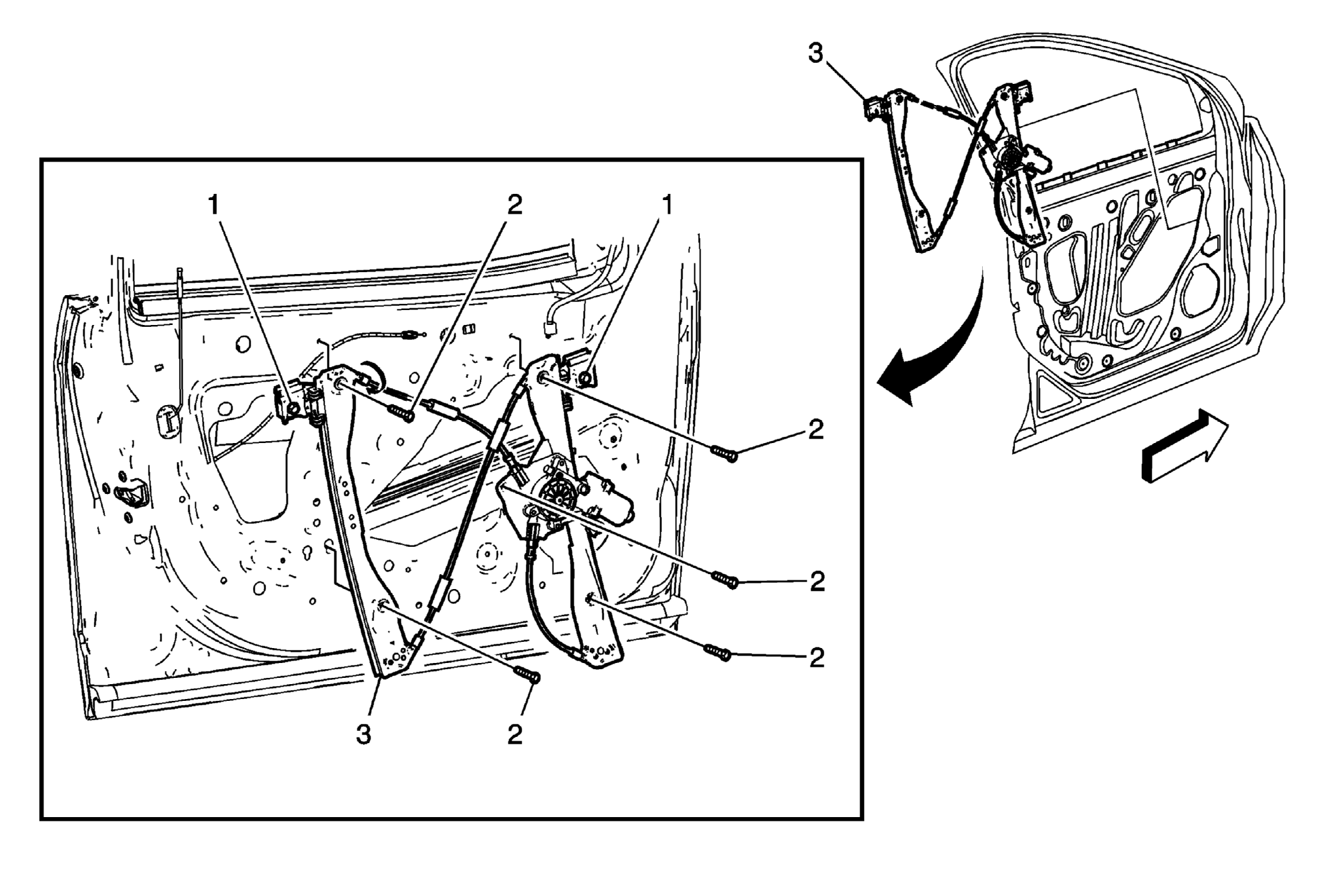

Fig 1: Identifying Front Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front side door trim panel. Refer to Front Side Door Trim Replacement
1	Front Side Door Window Regulator Guide Nuts to Window (Qty: 2) CAUTION: Refer to Fastener Caution Procedure: Remove the front side door water deflector. Tighten: 11 N.m (98 lb in)
2	Front Side Door Window Regulator Bolts (Qty: 5) Procedure Position window to access the front side door window regulator guide bolts. Loosen the nuts on the window regulator guide. Raise the window to the fully up position, tape in place. Tighten: 10 N.m (89 lb in)
3	Front Side Door Window Regulator Procedure Disconnect the electrical connector from the motor. The window regulator motor is not serviceable. When installing a new window regulator, remove the two window regulator guides bolts. The window regulator guides must be raised to meet the window before installing the window regulator guides bolts.
