Windshield Multifunction Sensor Mount Bracket Cover Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

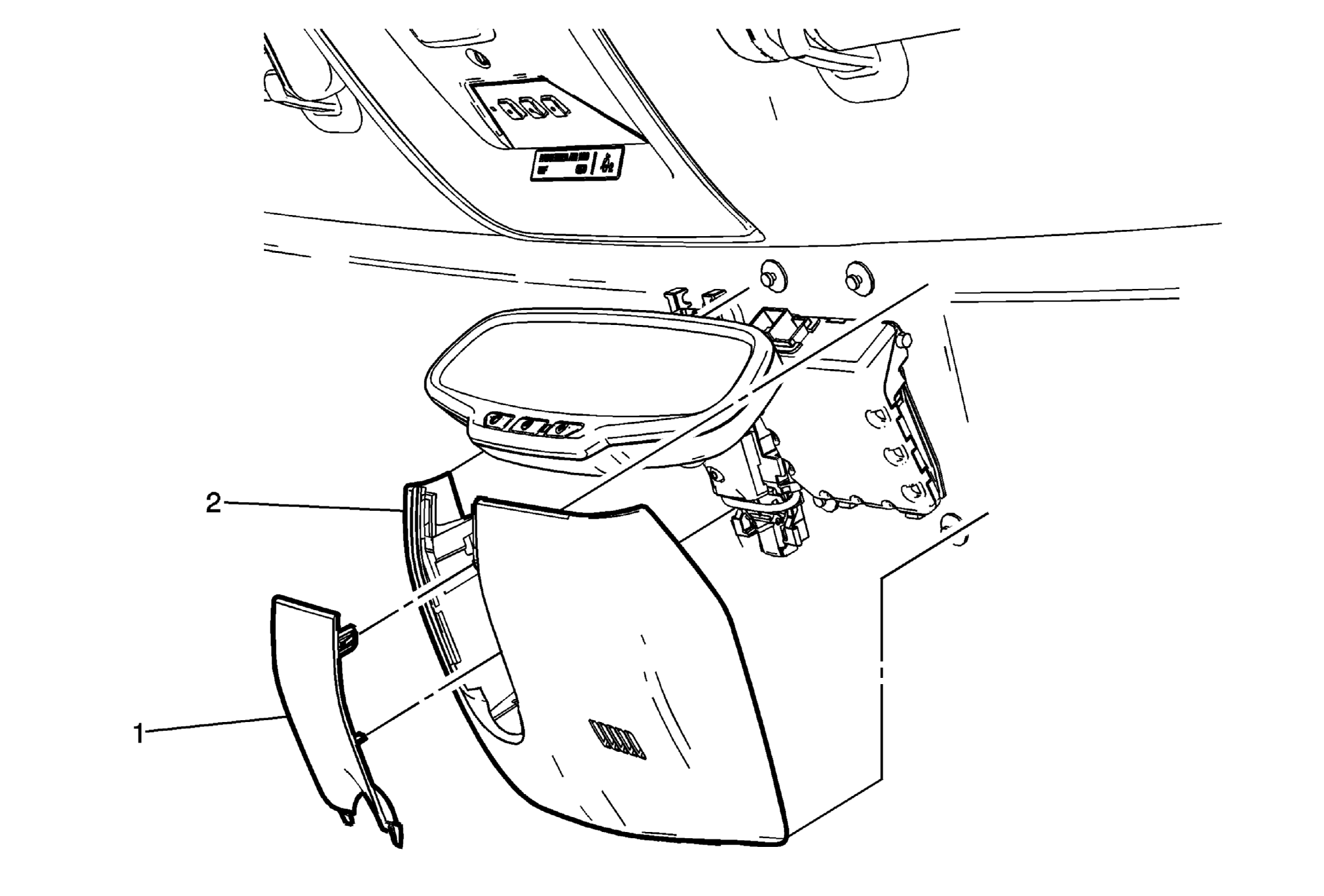

| Callout |
Component Name |
| 1 |
Windshield Multifunction Sensor Mount Bracket Cover
Procedure
Remove the small piece by gently pulling at the mirror opening. |
| 2 |
Windshield Multifunction Sensor Mount Bracket Cover
Procedure
Grasp the cover on both sides and gently slide downward. |
