Body Side Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

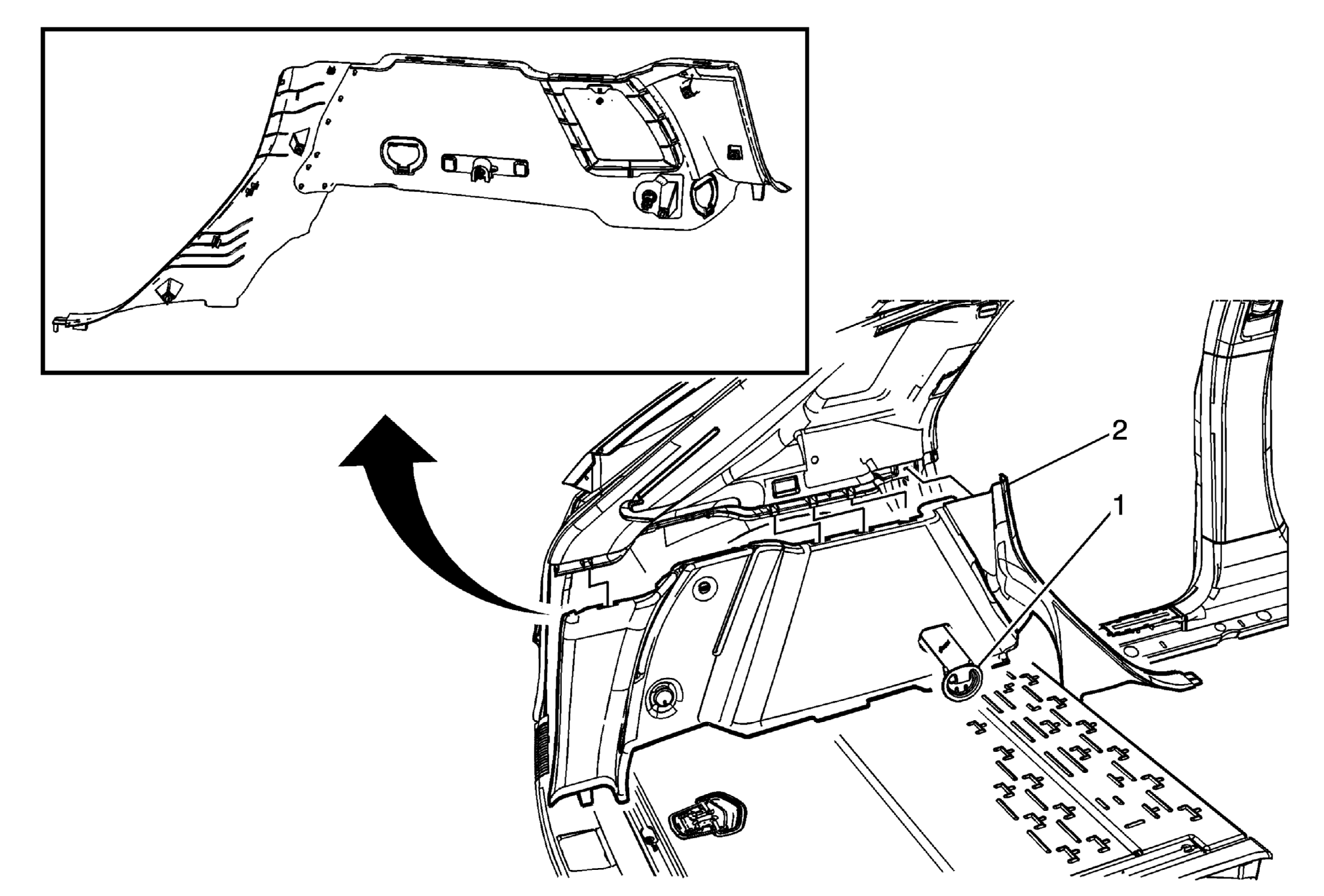

Fig 1: Identifying Body Side Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Move the rear seat to the full forward position. Remove the load floor panel rear extension panel. Refer to Load Floor Panel Rear Extension Panel Replacement . Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement . Reposition the center pillar lower trim panel to allow body side trim to pass. Refer to Center Pillar Lower Trim Panel Replacement .
1	Cargo Tie Down Loop Bezel
2	Trim Panel Assembly Procedure Pull outward to disengage the trim panel retainers. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Move the rear seat to the full forward position.
Remove the load floor panel rear extension panel. Refer to Load Floor Panel Rear Extension Panel Replacement .
Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .
Reposition the center pillar lower trim panel to allow body side trim to pass. Refer to Center Pillar Lower Trim Panel Replacement .

Cargo Tie Down Loop Bezel

Trim Panel Assembly

Procedure

Pull outward to disengage the trim panel retainers.
Disconnect the electrical connectors.
