Rear Window Wiper Arm Replacement (Traverse)

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

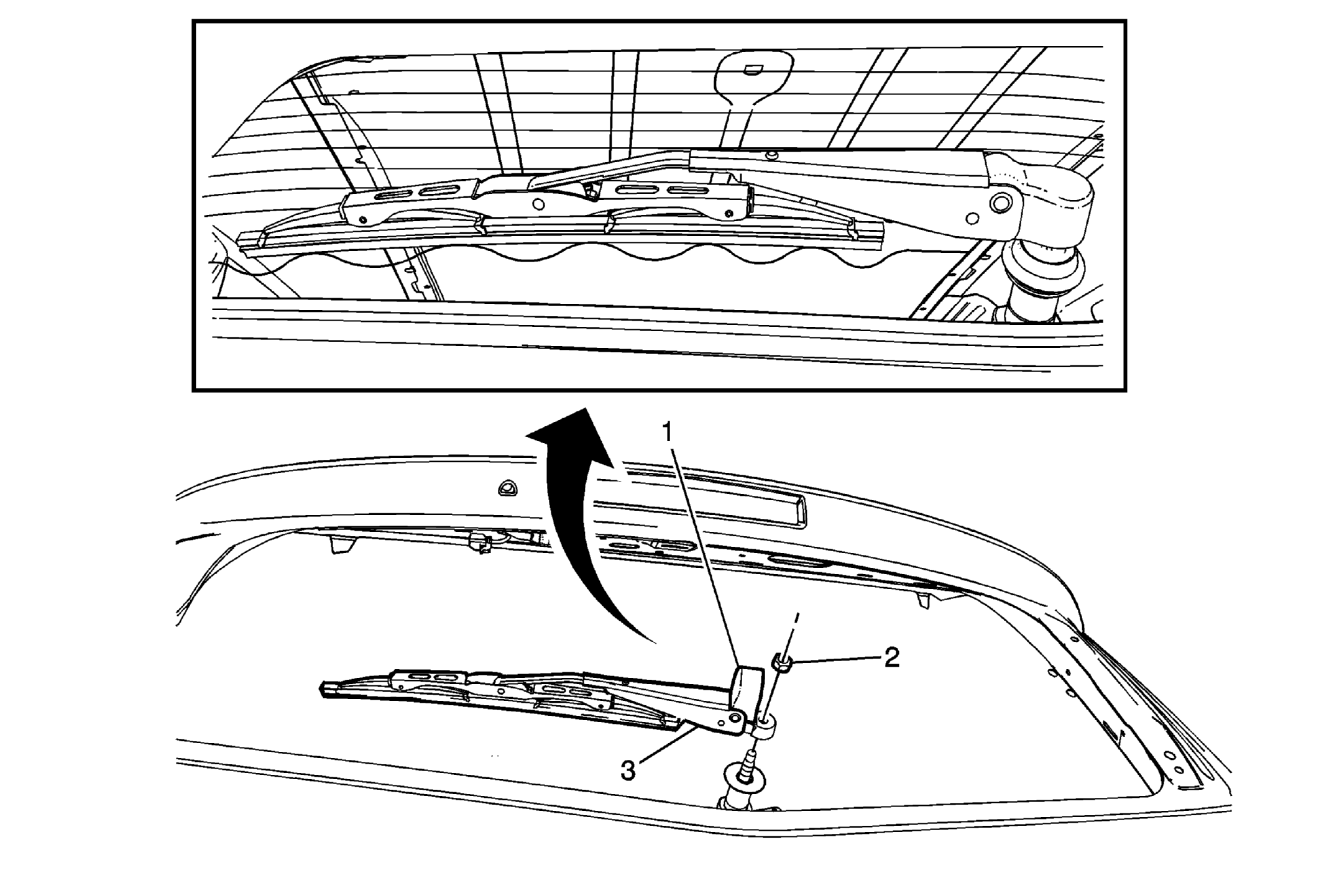

Fig 1: Rear Window Wiper Arm (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Arm Nut Cap TIP: Lift up on rearward end of cap to disengage from rear wiper arm.
2	Rear Window Wiper Arm Nut CAUTION: Refer to Fastener Caution . Procedure Remove the rear window wiper arm nut. Pivot the wiper arm in order to remove. Clean the knurls on the pivot shaft prior to installing the arm to the pivot shaft. Position the arm on the pivot shaft and the wiper blade to the center of the wavy defroster grid line. Hold the wiper arm in position while securing the rear window wiper arm nut. Tighten 9 (80 lb in)
3	Rear Window Wiper Arm Assembly

Callout

Component Name

Windshield Wiper Arm Nut Cap
TIP: Lift up on rearward end of cap to disengage from rear wiper arm.

Rear Window Wiper Arm Nut

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the rear window wiper arm nut.
Pivot the wiper arm in order to remove.
Clean the knurls on the pivot shaft prior to installing the arm to the pivot shaft.
Position the arm on the pivot shaft and the wiper blade to the center of the wavy defroster grid line.
Hold the wiper arm in position while securing the rear window wiper arm nut.

Tighten
9 (80 lb in)

Rear Window Wiper Arm Assembly
