Backup Lamp Applique Replacement (Traverse)
WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Backup Lamp Applique Replacement (Traverse)

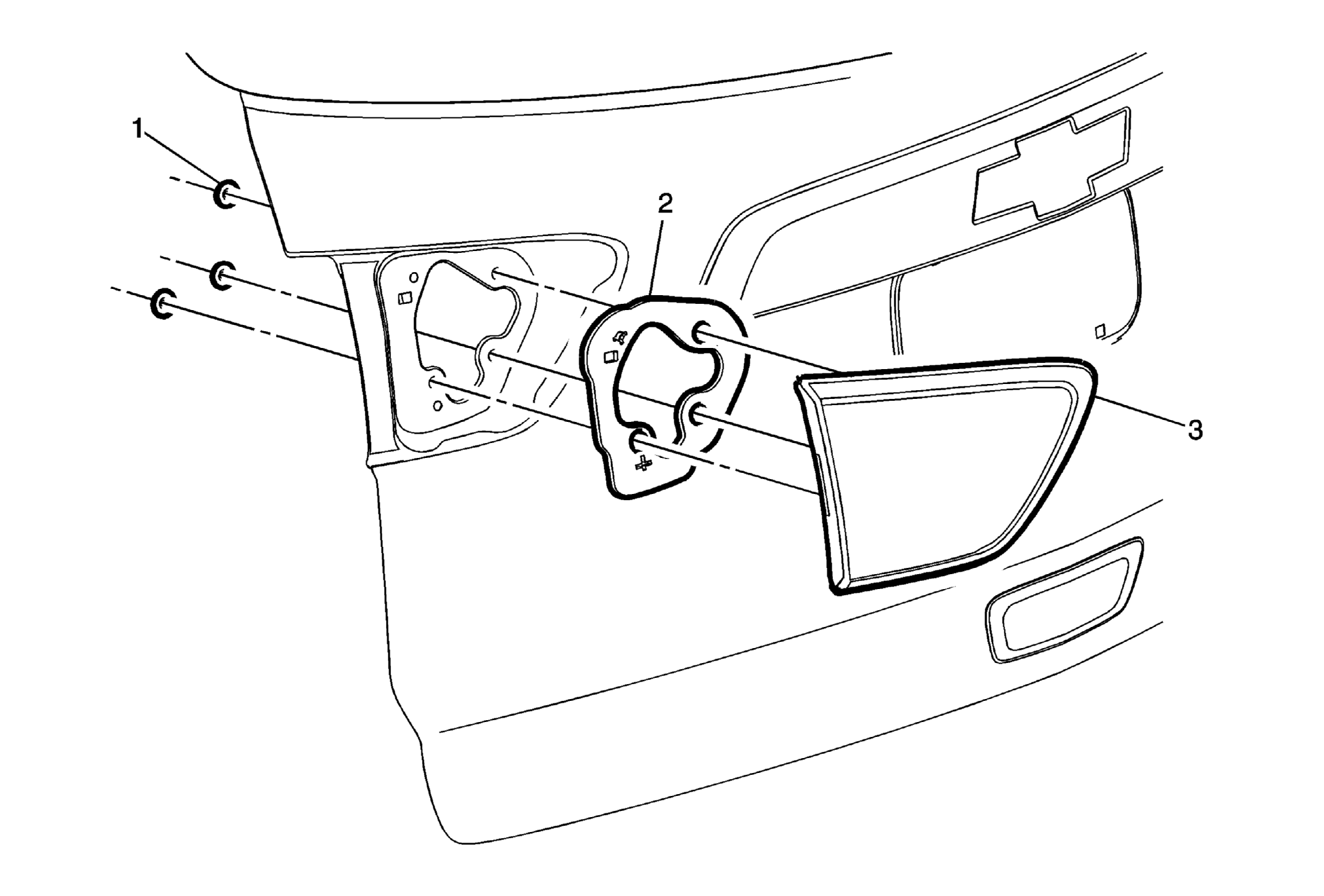

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) . |
|
| 1 | Backup Lamp Applique Nuts (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Backup Lamp Applique Seal |
| 3 | Backup Lamp Applique Procedure Disconnect the liftgate wiring harness connector. |
