SIR Schematics
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

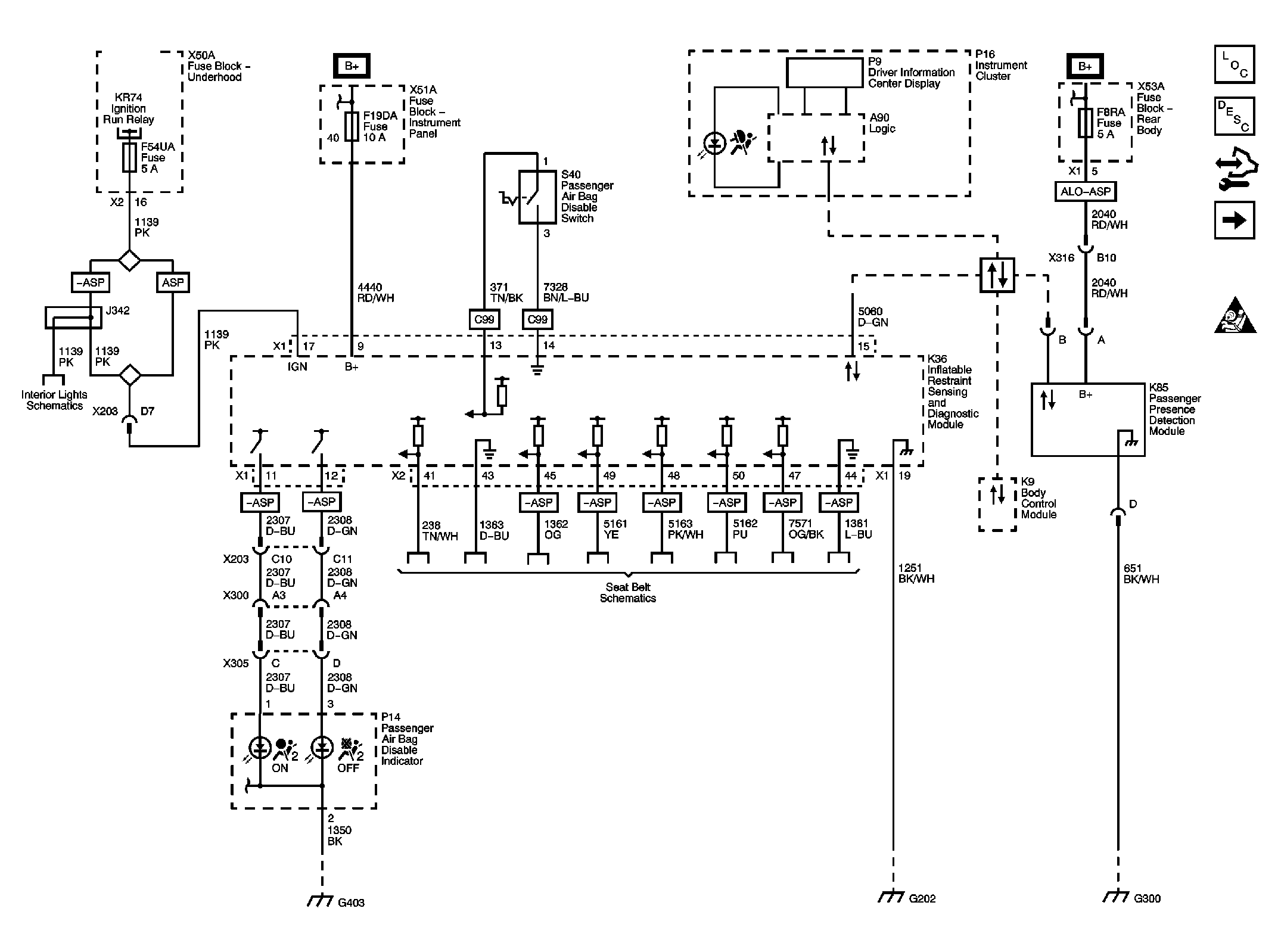

Fig 1: Power, Ground, Serial Data & Passenger Presence System Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

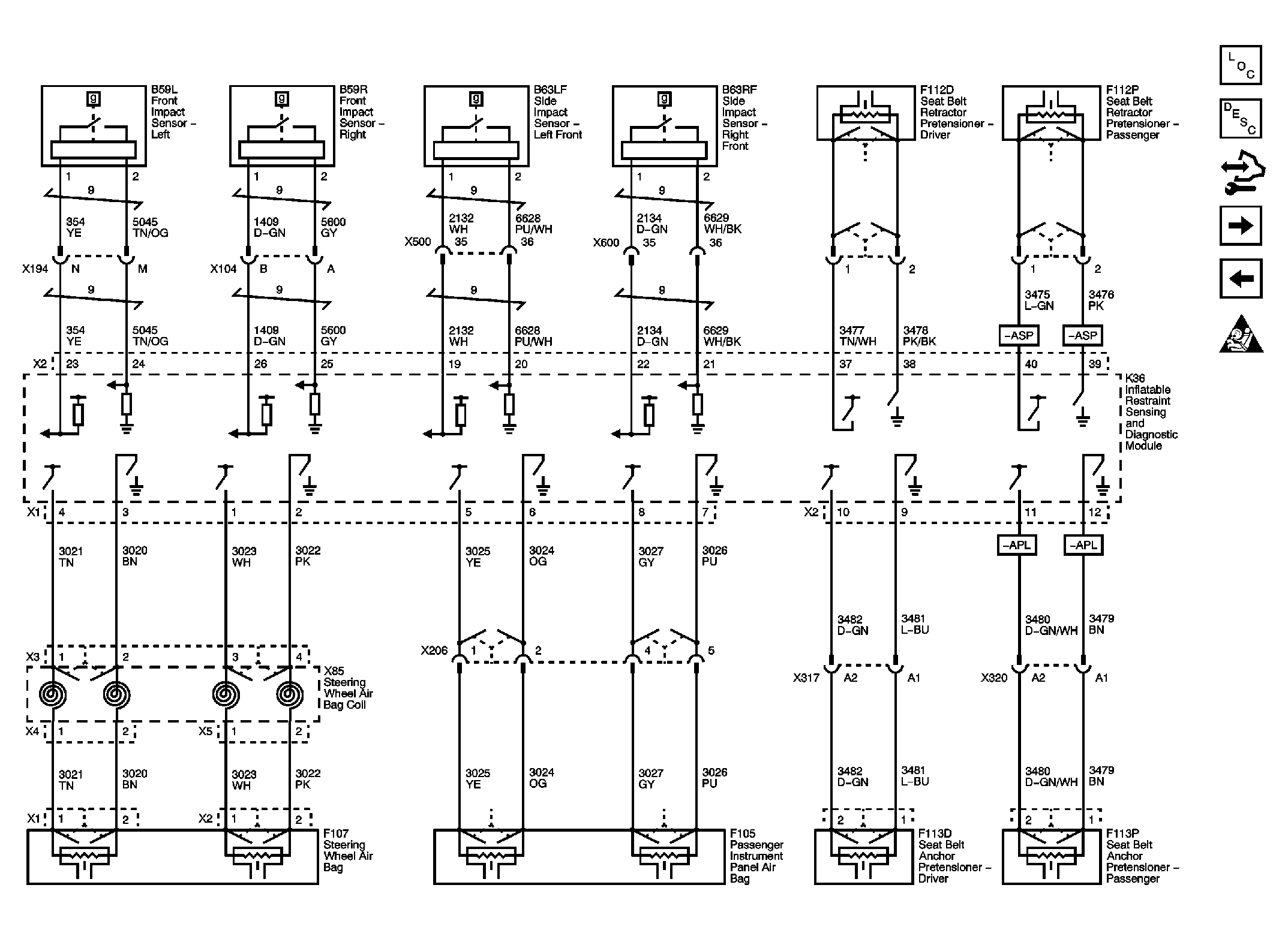

Fig 2: Front Impact Sensors & Seat Belt Pretensioners Circuit Schematic
