Driver Information Display Switch Replacement (Traverse)
Courtesy of GENERAL MOTORS COMPANY Driver Information Display Switch Replacement (Traverse)

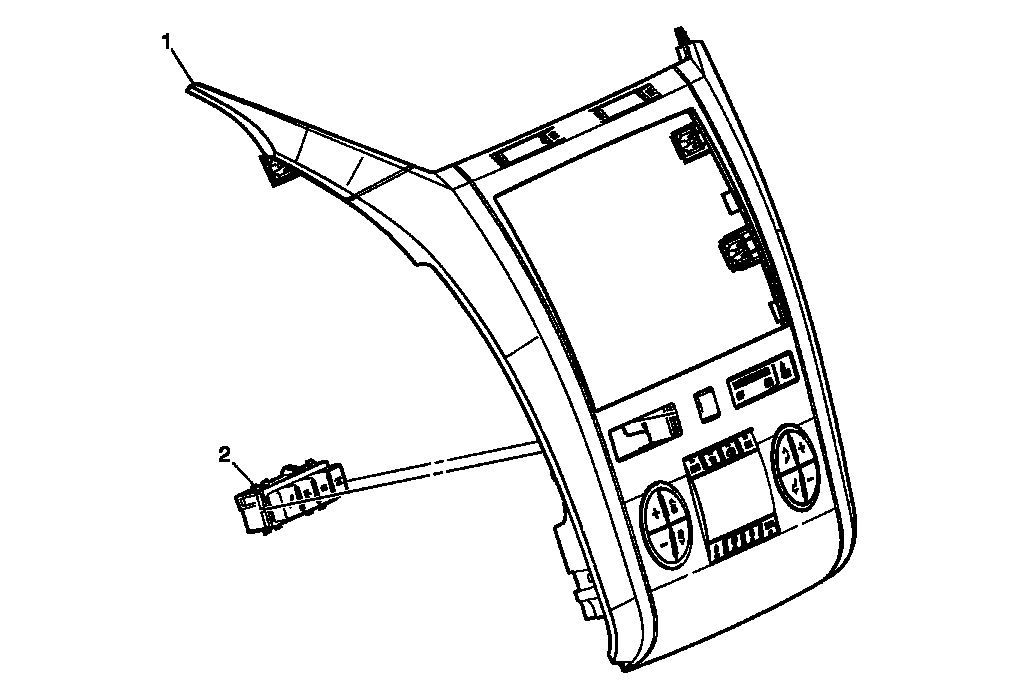

| Callout |
Component Name |
| 1 |
Instrument Panel Accessory Trim Plate
Refer to Instrument Panel Accessory Trim Plate Replacement (Traverse) |
| 2 |
Drivers Information Center Switch Assembly Procedure
- Unsnap the switch assembly from the trim plate.
- Once the switch is replaced, remove the instrument panel cluster fuse for a few seconds then reinstall the fuse.
|
