Passenger Seat Adjuster Switch Replacement

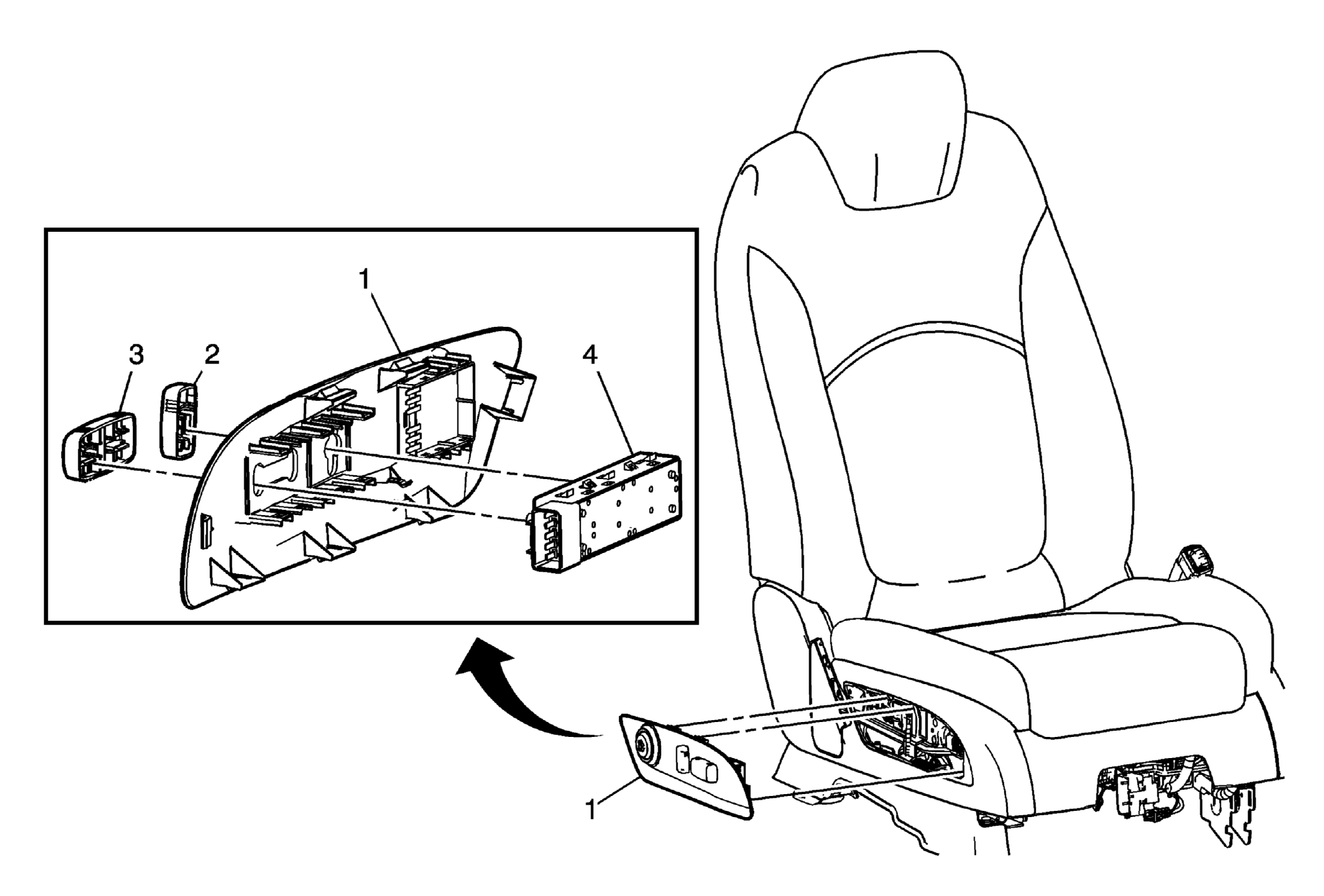

Fig 1: Passenger Seat Adjuster Switch
GM2380973Courtesy of GENERAL MOTORS COMPANY
Passenger Seat Adjuster Switch Replacement

Callout Component Name
1 Passenger Seat Adjuster Switch Mounting Plate

Procedure

  1. Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate.
  2. Disconnect the electrical connectors from the switch assemblies.
2 Passenger Seat Recliner Knob
TIP:  Use a flat-bladed tool to release the knob from the mounting plate.
3 Passenger Seat Adjuster Knob
TIP:  Use a flat-bladed tool to release the knob from the mounting plate.
4 Passenger Seat Adjuster and Recliner Switch
TIP:  Use a flat-bladed tool to release the switch from the mounting plate.
