Immobilizer Wiring Schematics: Immobilizer

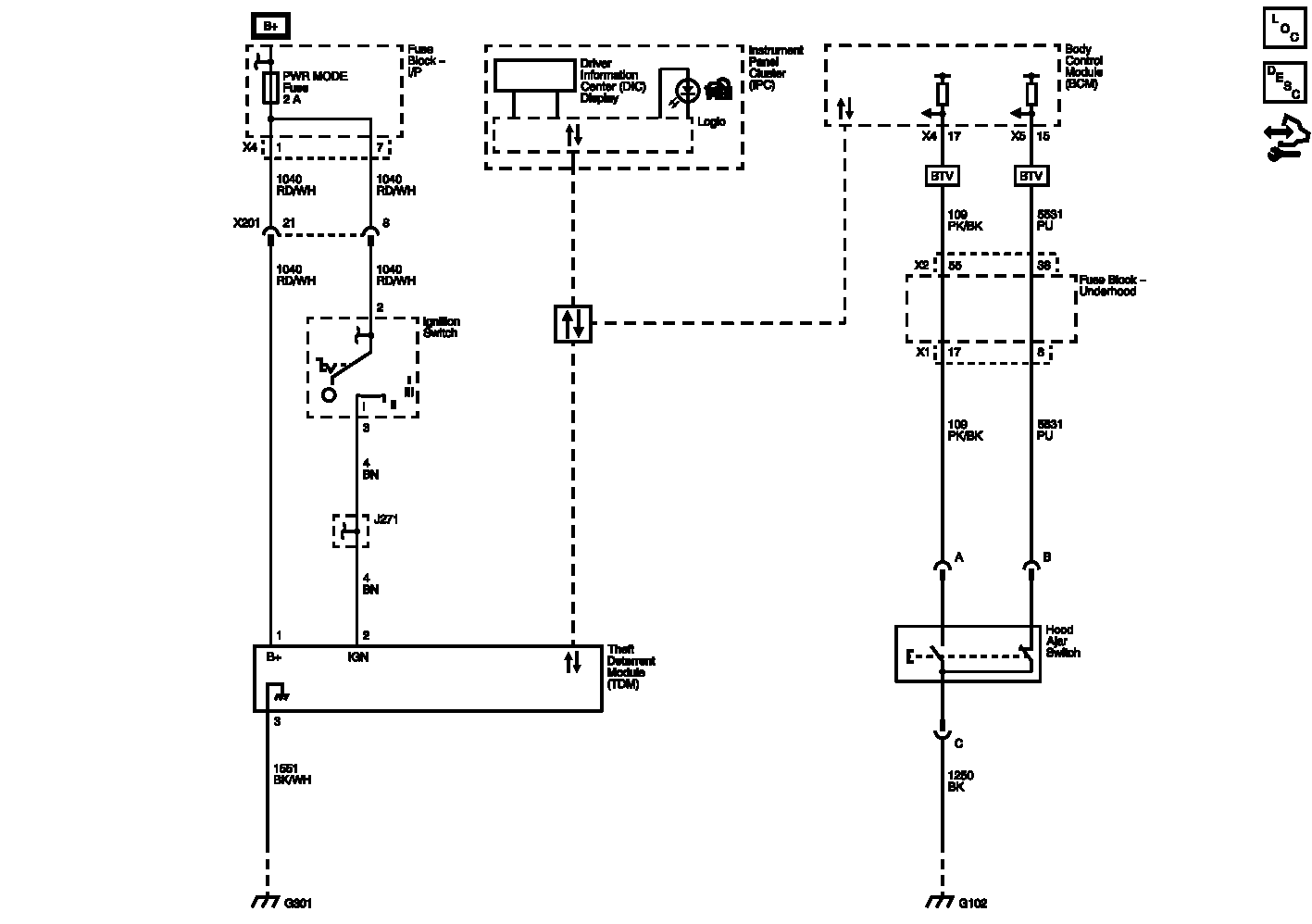

Fig 1: Immobilizer Wiring Schematic

GM2567780

Courtesy of GENERAL MOTORS COMPANY
