Liftgate Components

Luggage Compartment/Rear of Vehicle Component Views

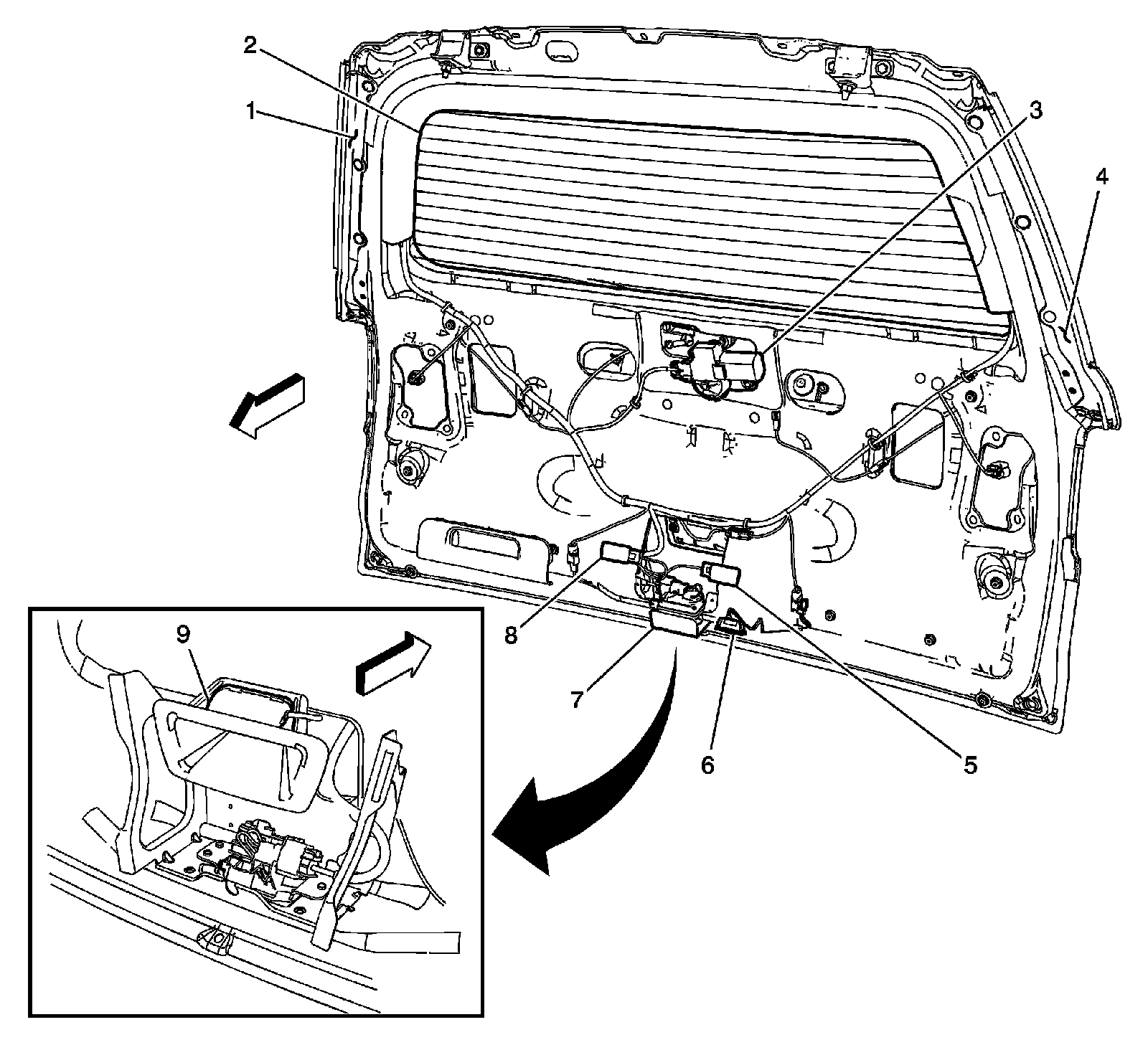

Liftgate Components

1 - Liftgate Object Sensor- Right (TB5)

2 - Rear Window Defogger Grid

3 - Rear Window Wiper Motor

4 - Liftgate Object Sensor- Left (TB5)

5 - Liftgate Courtesy Lamp- Left

6 - Liftgate Control Switch- Interior (TB5)

7 - Liftgate Latch Assembly

8 - Liftgate Courtesy Lamp- Right

9 - Liftgate Control Switch- Exterior
