52. Control Valve Body Assembly Assemble




Control Valve Body Assembly Assemble

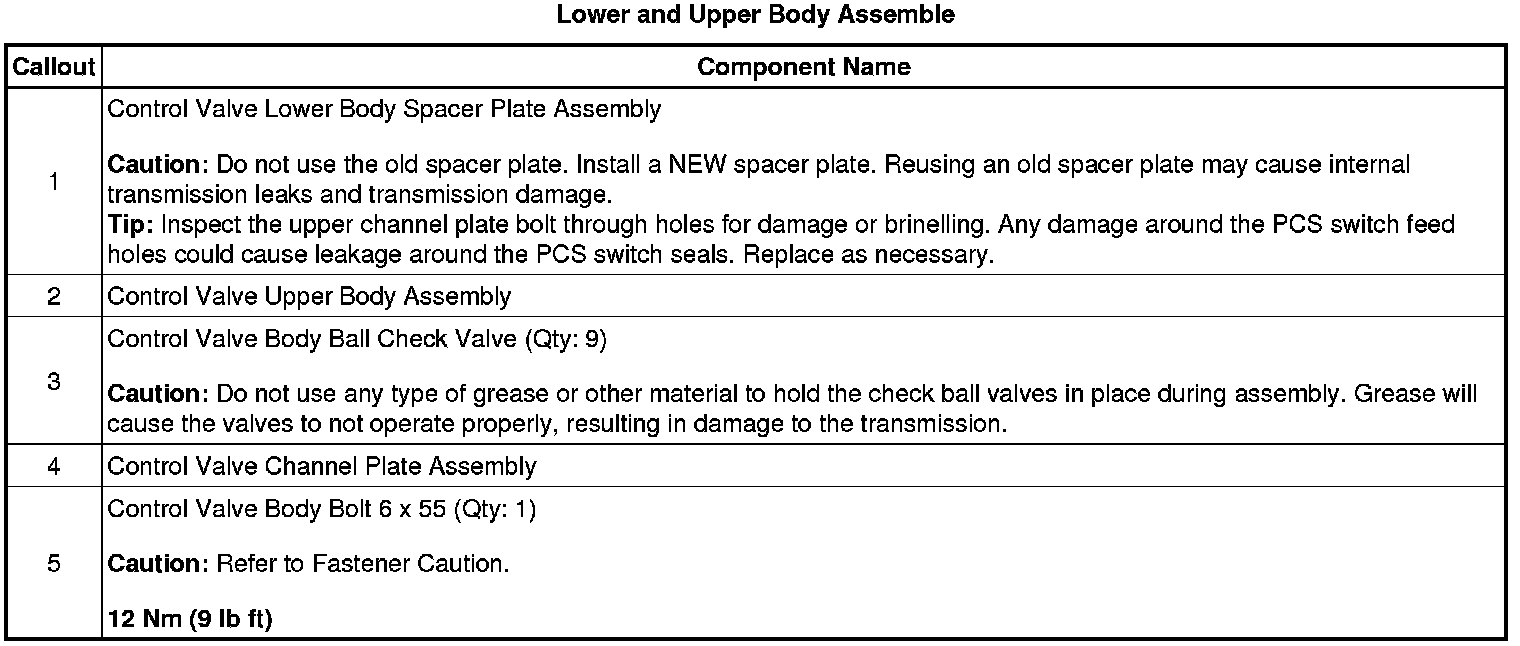

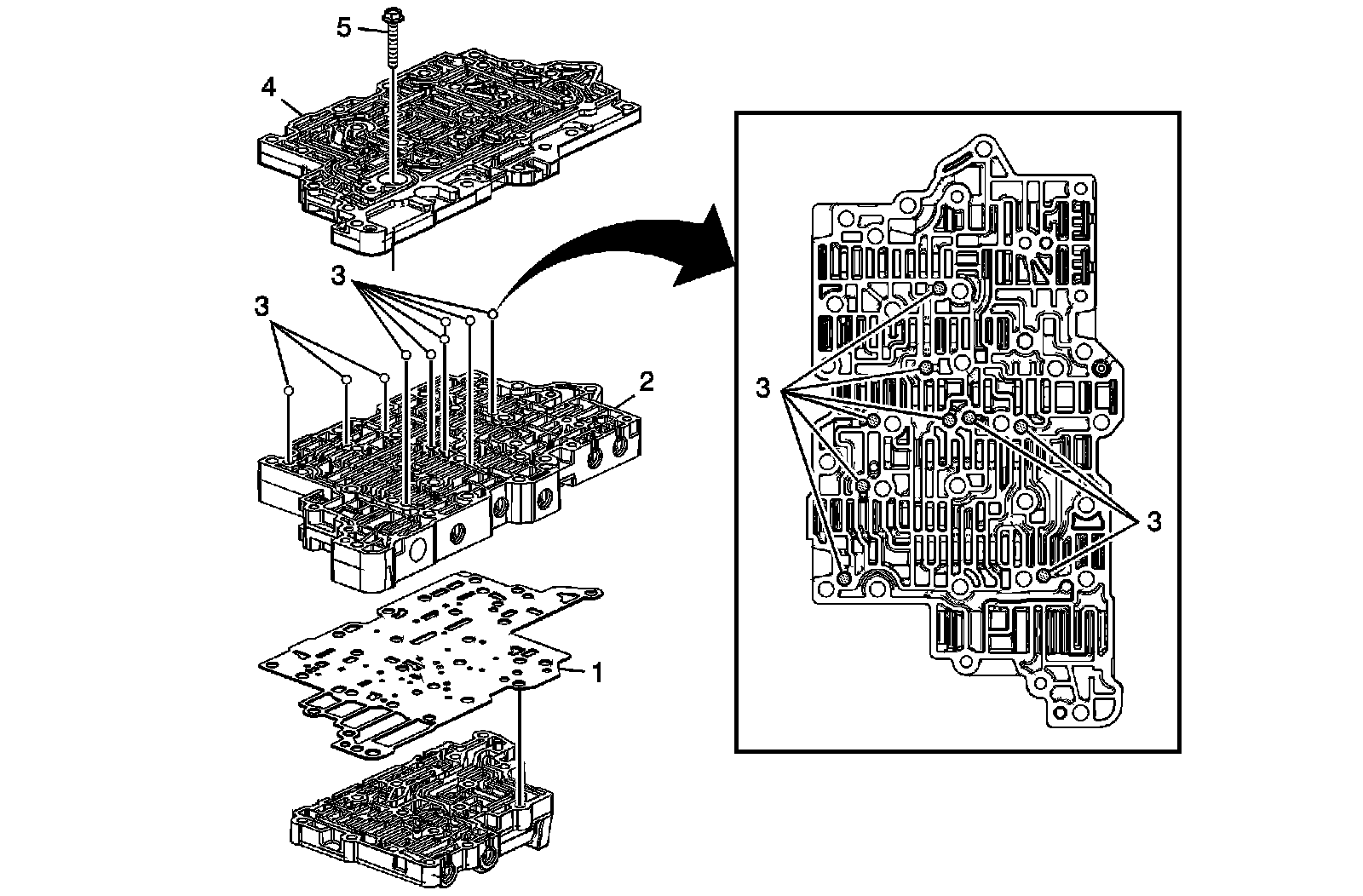

Lower and Upper Body Assemble

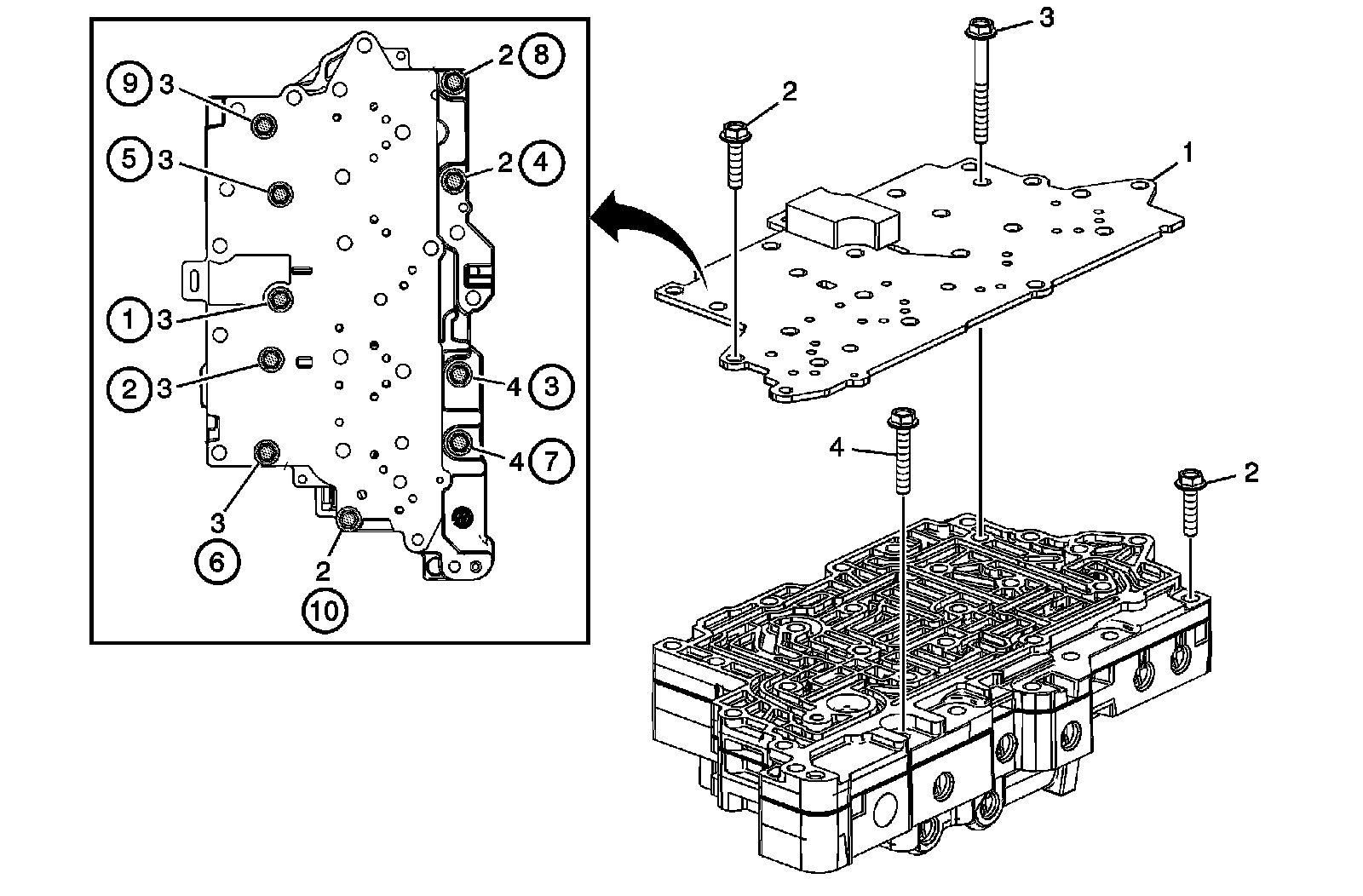

Channel Plate and Upper Channel Plate Assemble
