Air Bag Control Module: Locations

Passenger Compartment/Roof Component Views

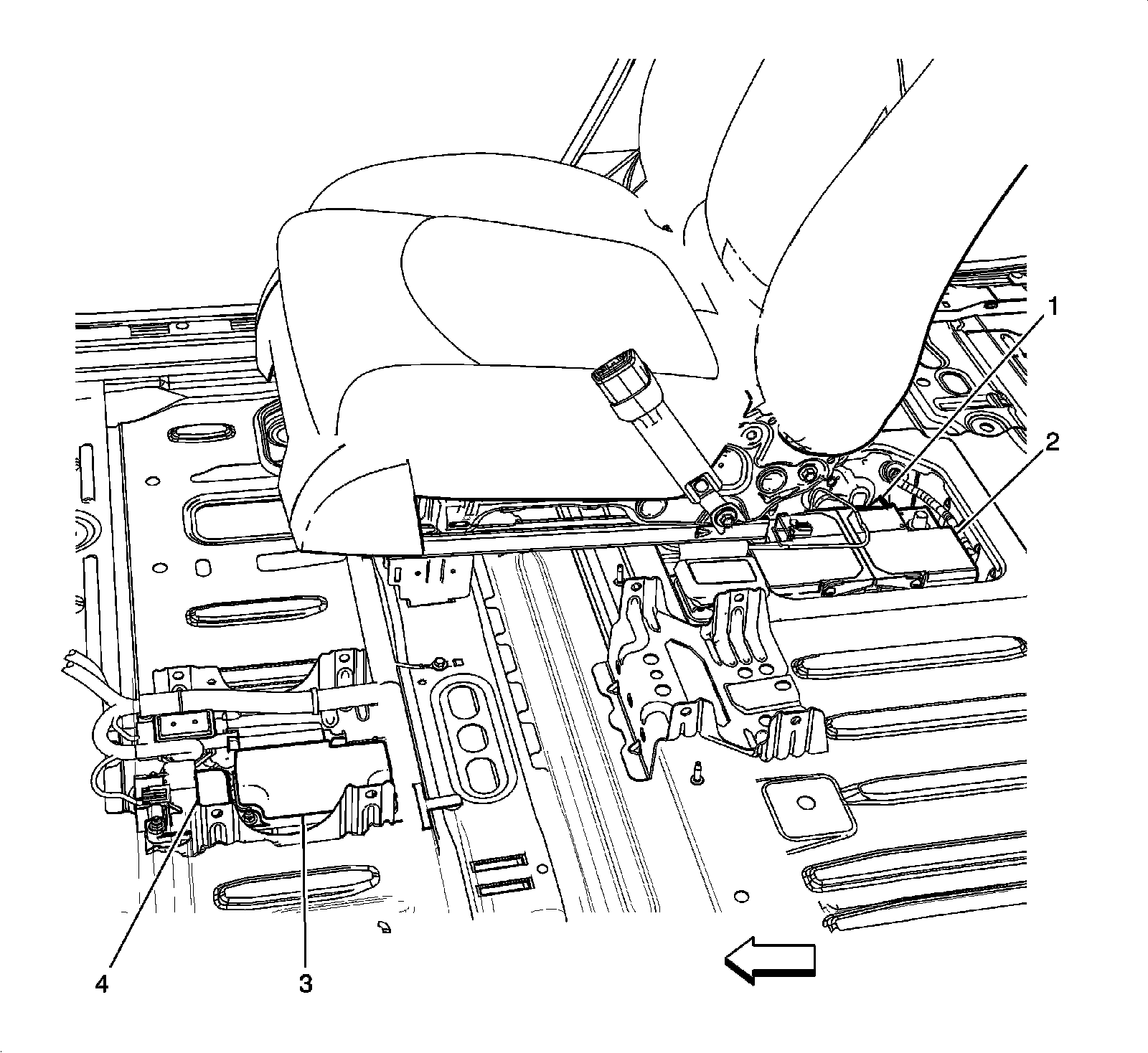

Near the Passenger Seat

1 - Battery Current Sensor

2 - Battery

3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)

4 - Yaw and Lateral Accelerometer Sensor
