Driver Door Harness Routing




Harness Routing Views

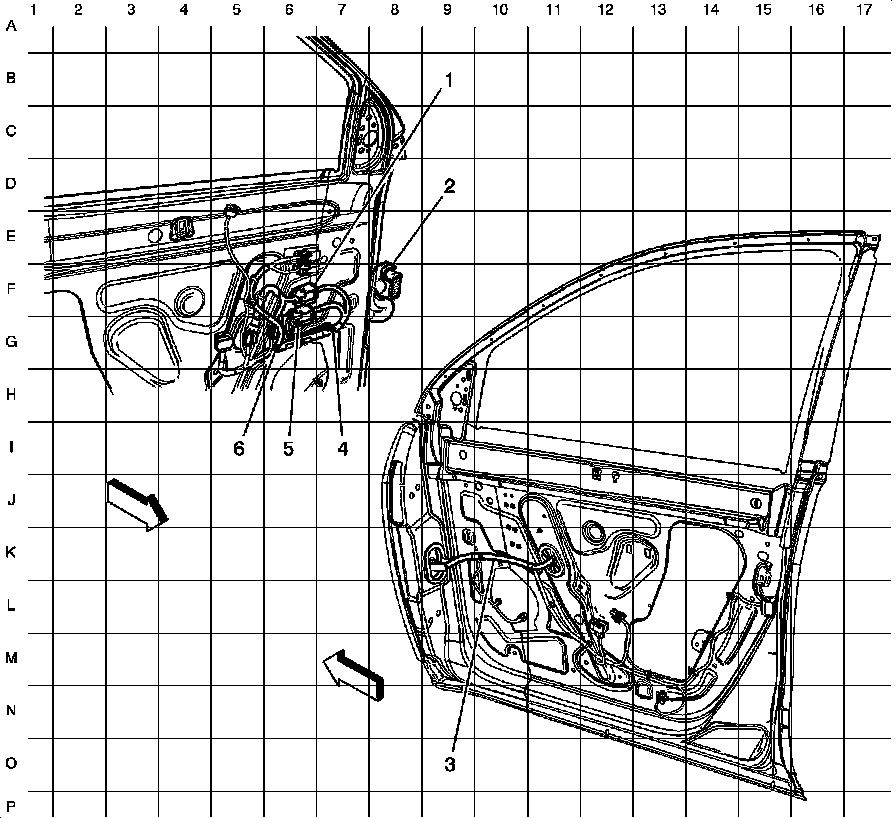

Driver Door Harness Routing





1 - J577 (without AXE)

2 - X553

3 - X500

4 - J555

5 - J575

6 - X555
