System Diagram




Starting and Charging Schematics

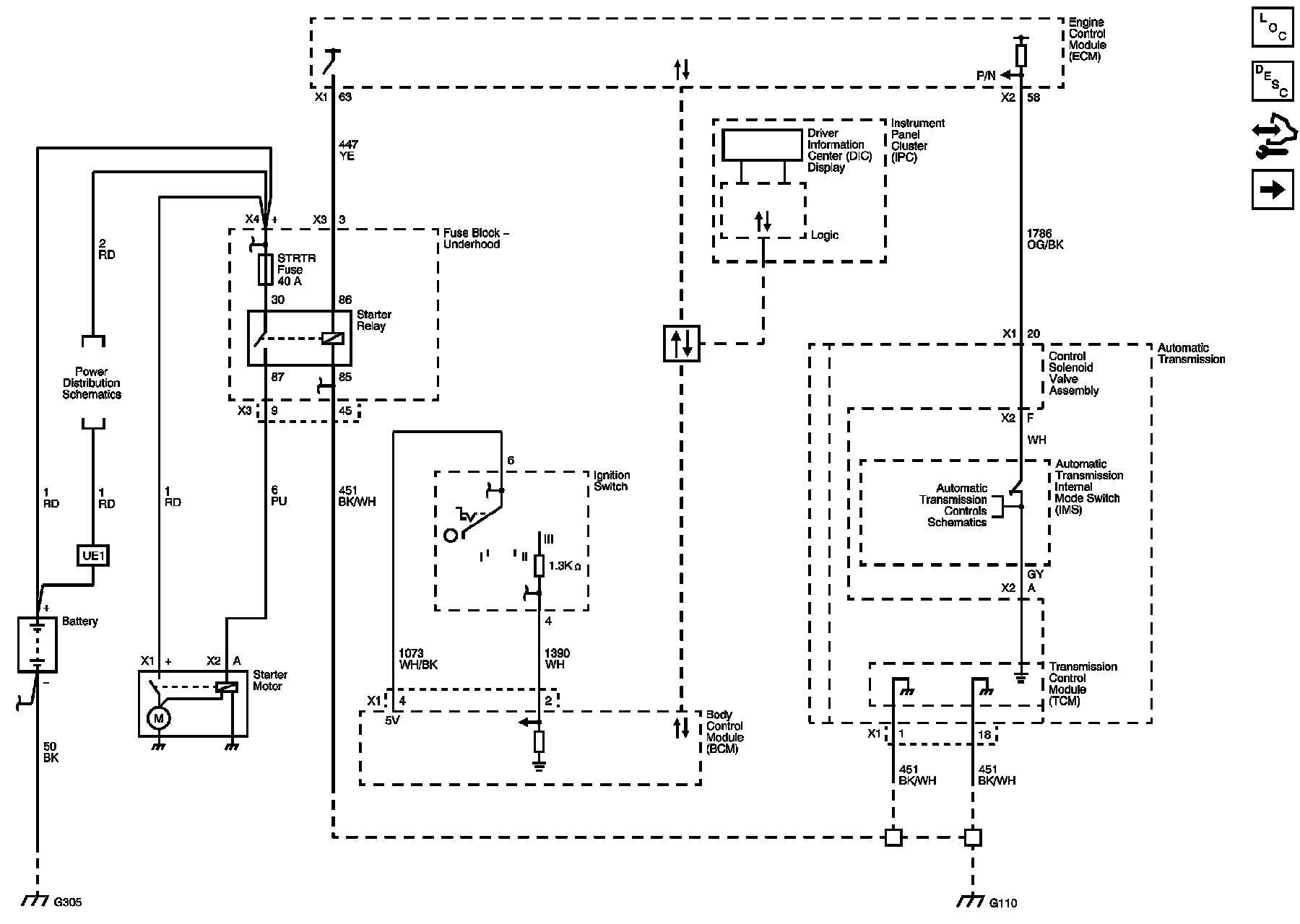

Starting





Master Electrical Component List
Starting System Description and Operation
Control Module References
Charging
B+ Bus 1 of 2
Data Communication Schematics
Electrical Center Identification Views
IMS and Tap Up/Tap Down Switch
G303 (2 of 2), G304, and G305
G105 and G110

Charging





Master Electrical Component List
Charging System Description and Operation
Control Module References
Starting
AFS, AUX POWER, CIGAR LIGHTER, FSCM, HTD MIR, RR DEFOG, RVC SNSR, TRLR BRK, and TRLR PWR Fuses
B+ Bus 1 of 2
Data Communication Schematics
G303 (2 of 2), G304, and G305
