System Diagram




Automatic Transmission Controls Schematics

Power, Ground, and Serial Data

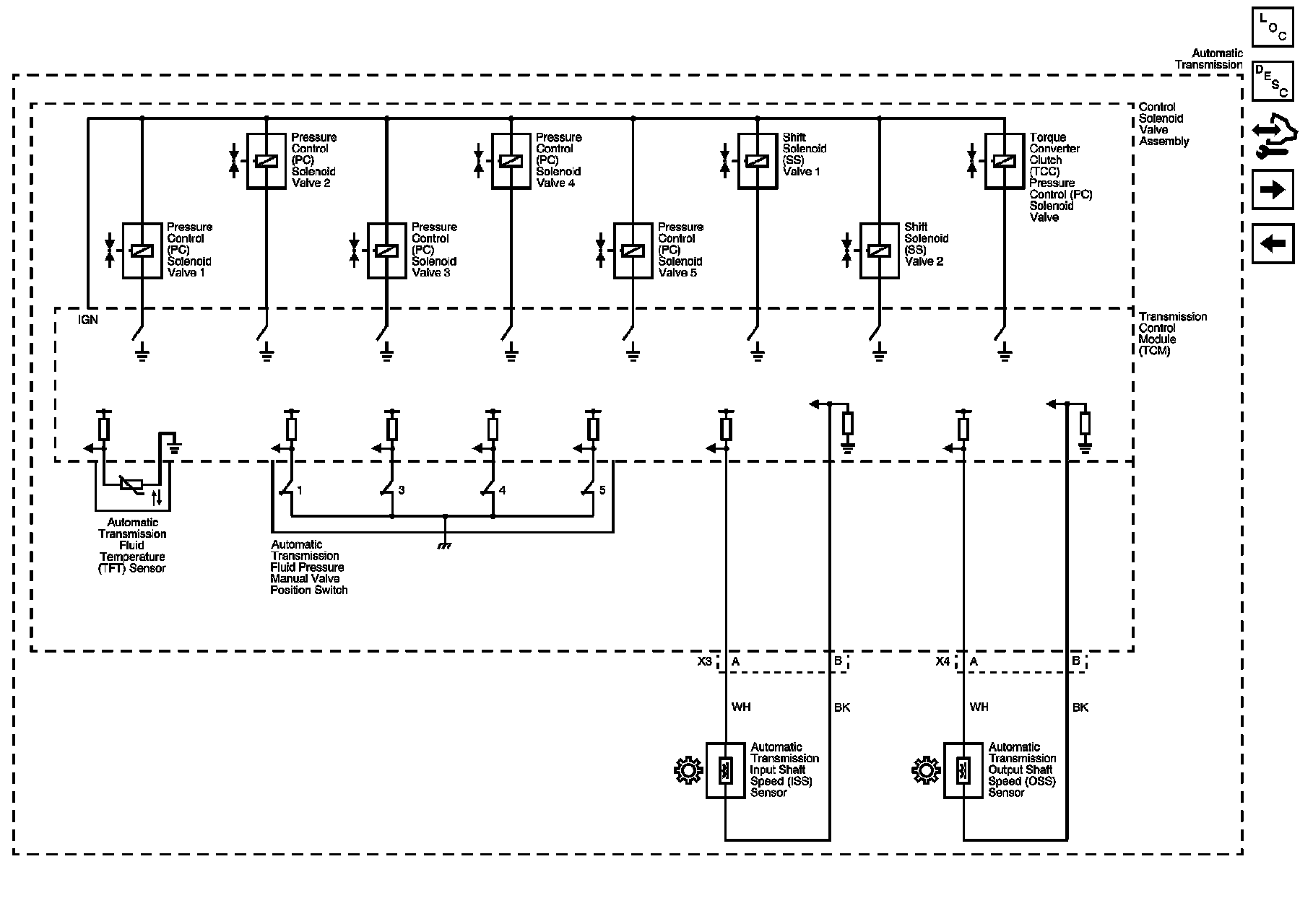

ISS, OSS, TFT Sensors, Valve Position, and Pressure and Shift Controls

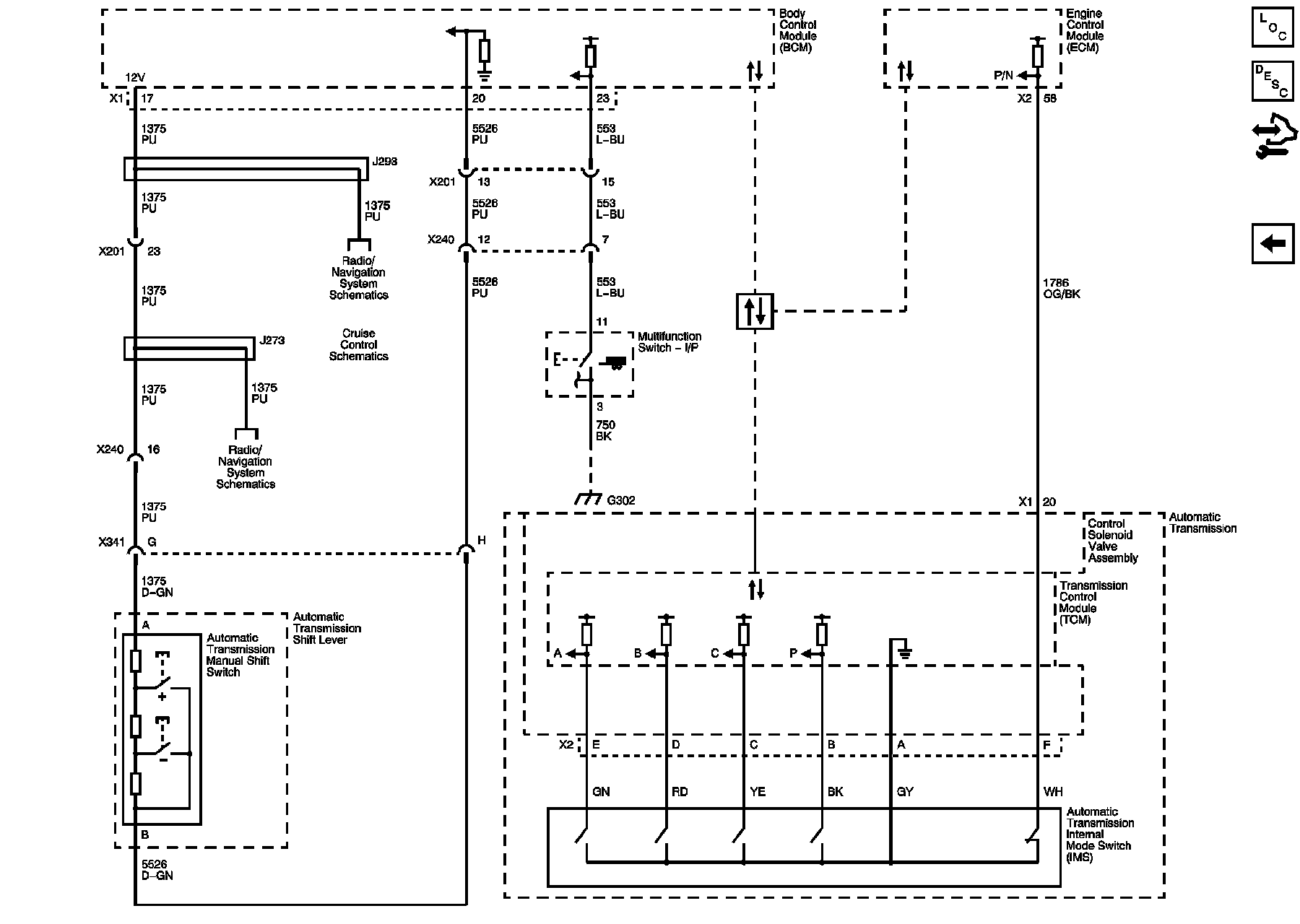

IMS and Tap Up/Tap Down Switch
