Window Switch - Right Rear

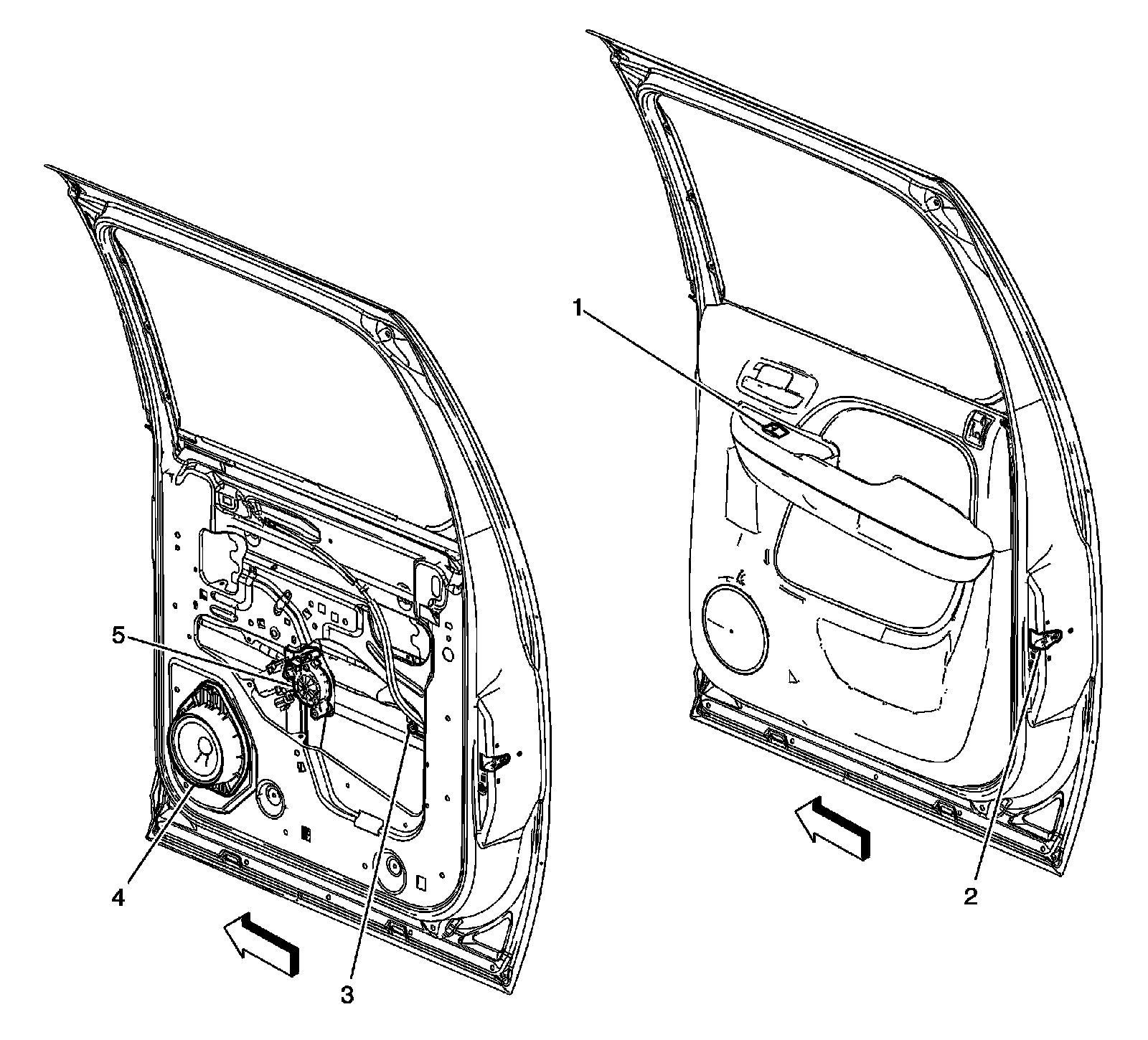

Door Component Views

Right Rear Door Components




1 - Window Switch - Right Rear
2 - Door Latch - Right Rear
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
4 - Speaker - Right Rear
5 - Window Motor - Right Rear
