Fuel Level Sensor Replacement (2500 - 98.4L (26 gal) Tank - Front)

Fuel Level Sensor Replacement (2500 - 98.4L (26 gal) Tank - Front)

Removal Procedure

1. Remove the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (2500 LWB - 98.4L (26 gal) Tank Front) Fuel Tank Fuel Pump Module Replacement (2500 LWB - 98.4L (26 gal) Tank Front)Fuel Tank Fuel Pump Module Replacement (1500 SWB - 98.4L (26 gal) Tank + E85) Fuel Tank Fuel Pump Module Replacement (1500 SWB - 98.4L (26 gal) Tank + E85)Fuel Tank Fuel Pump Module Replacement (1500 Series) Fuel Tank Fuel Pump Module Replacement (1500 Series)Fuel Tank Fuel Pump Module Replacement (1500 LWB - 117.3L (31 gal) Tank + E85) Fuel Tank Fuel Pump Module Replacement (1500 LWB - 117.3L (31 gal) Tank + E85)Fuel Tank Fuel Pump Module Replacement (2500 LWB - 43.5L (11.5 gal) Tank Rear) Fuel Tank Fuel Pump Module Replacement (2500 LWB - 43.5L (11.5 gal) Tank Rear).

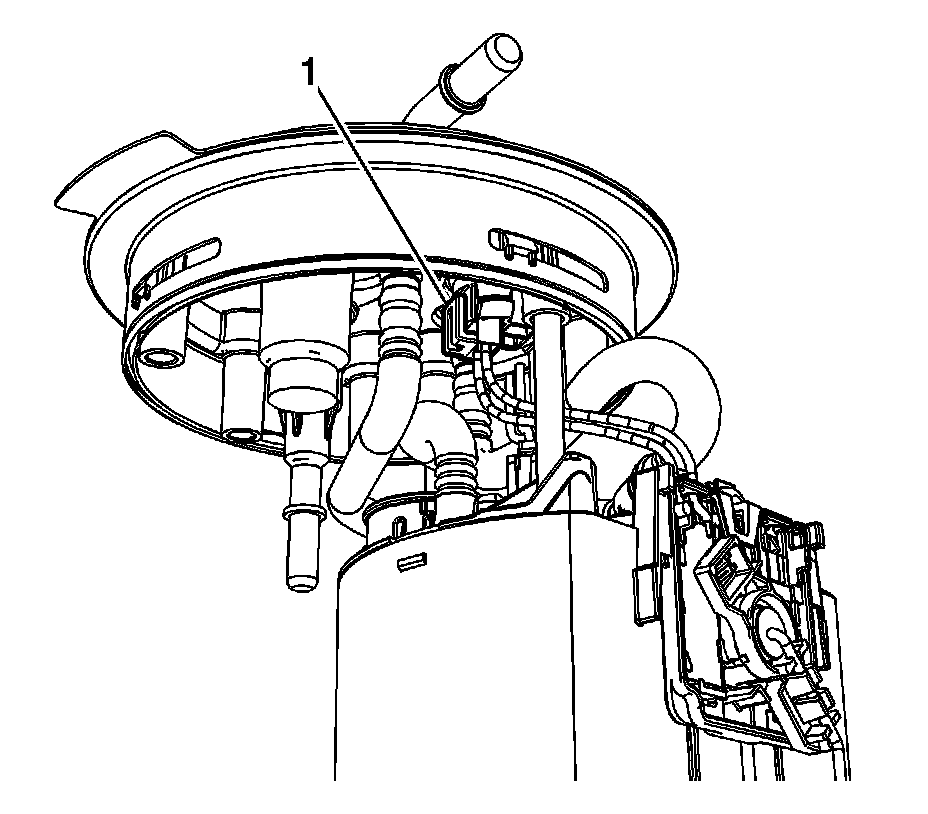

2. Disconnect the fuel level sensor electrical connector (1) from under the module cover.

3. Release the fuel level sensor retaining clip (1).
4. Slide the fuel level sensor down off of the bucket.

Installation Procedure

1. Slide the fuel level sensor up onto the bucket until the sensor engages the retaining tab (1).

2. Connect the fuel level sensor electrical connector (1) under the module cover.
3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (2500 LWB - 98.4L (26 gal) Tank Front) Fuel Tank Fuel Pump Module Replacement (2500 LWB - 98.4L (26 gal) Tank Front)Fuel Tank Fuel Pump Module Replacement (1500 SWB - 98.4L (26 gal) Tank + E85) Fuel Tank Fuel Pump Module Replacement (1500 SWB - 98.4L (26 gal) Tank + E85)Fuel Tank Fuel Pump Module Replacement (1500 Series) Fuel Tank Fuel Pump Module Replacement (1500 Series)Fuel Tank Fuel Pump Module Replacement (1500 LWB - 117.3L (31 gal) Tank + E85) Fuel Tank Fuel Pump Module Replacement (1500 LWB - 117.3L (31 gal) Tank + E85)Fuel Tank Fuel Pump Module Replacement (2500 LWB - 43.5L (11.5 gal) Tank Rear) Fuel Tank Fuel Pump Module Replacement (2500 LWB - 43.5L (11.5 gal) Tank Rear).
