Window Switch - Driver (AXG)

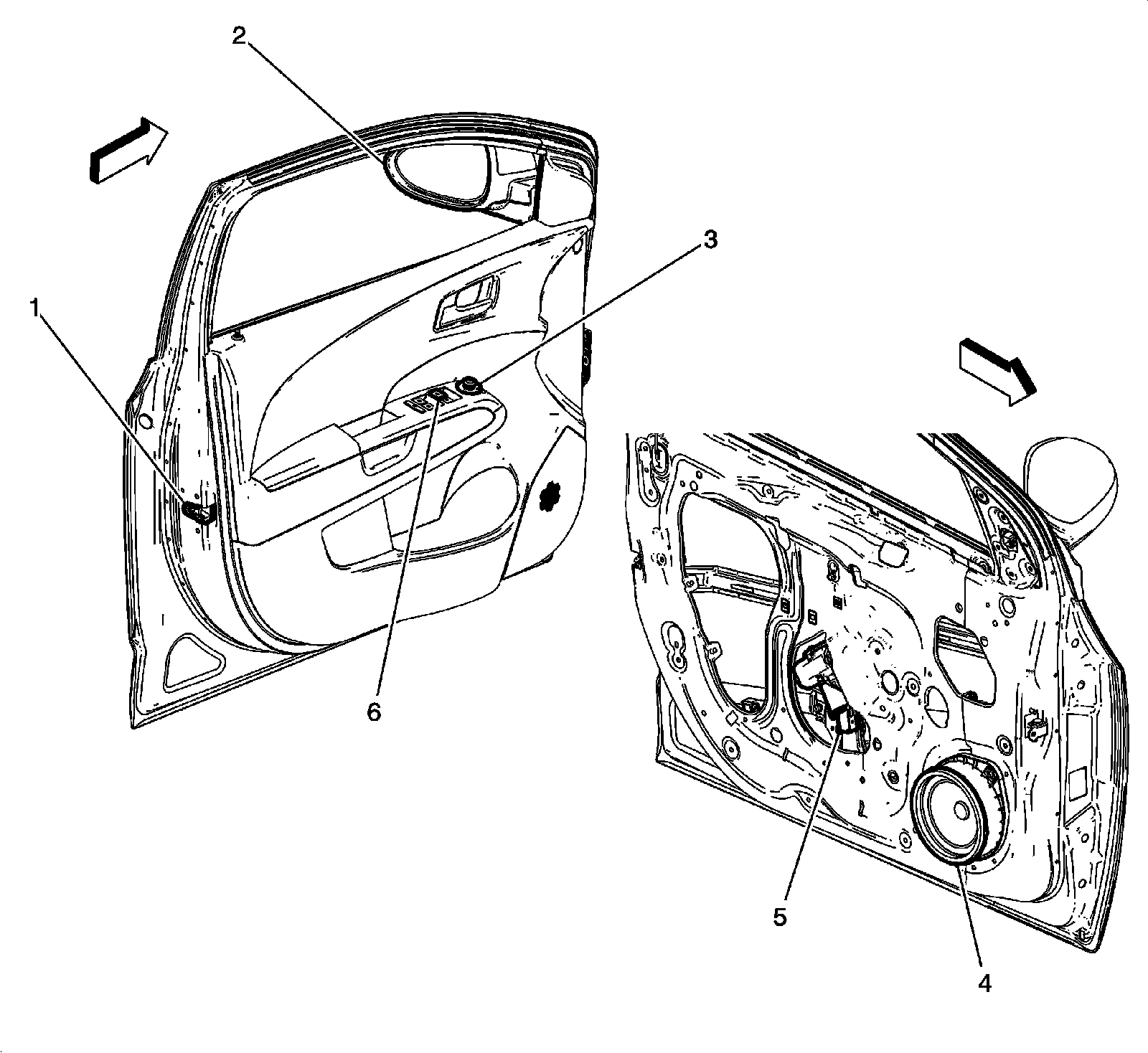

Door Component Views

Driver Door Components

1 - A23D Door Latch Assembly - Driver

2 - A9A Outside Rearview Mirror - Driver (DG6)

3 - S52 Outside Rearview Mirror Switch (DG6)

4 - P19AG Speaker - Left Front Door

5 - M74D Window Motor - Driver (AXG)

6 - S79D Window Switch - Driver (AXG)
