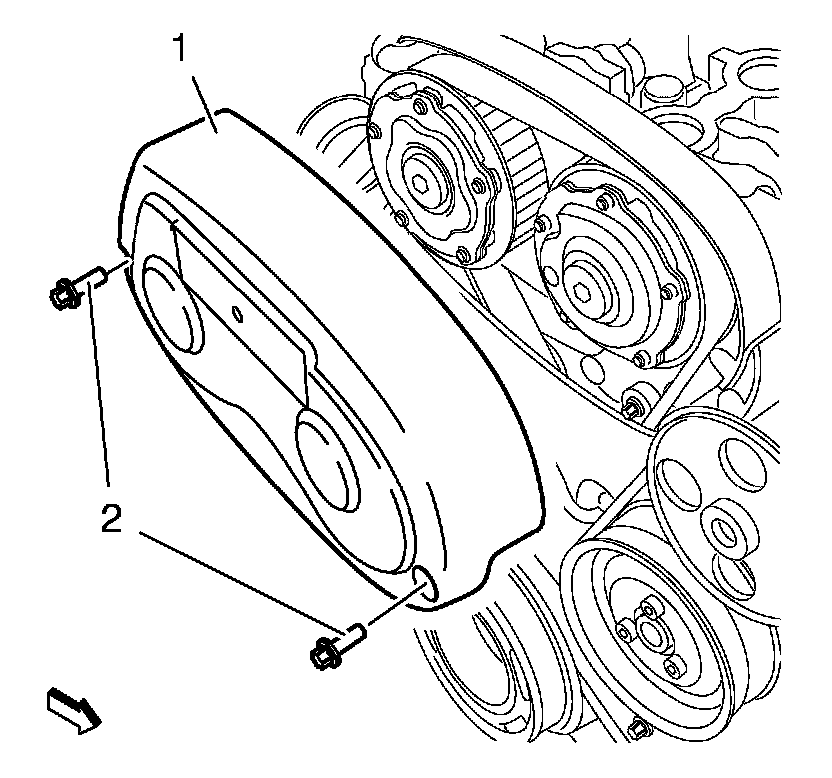

Timing Belt Upper Front Cover




Timing Belt Upper Front Cover





Caution:
Refer to Fastener Caution Fastener Caution.

Timing belt upper front cover bolts (2) 6 Nm (53 lb in)
