4NB

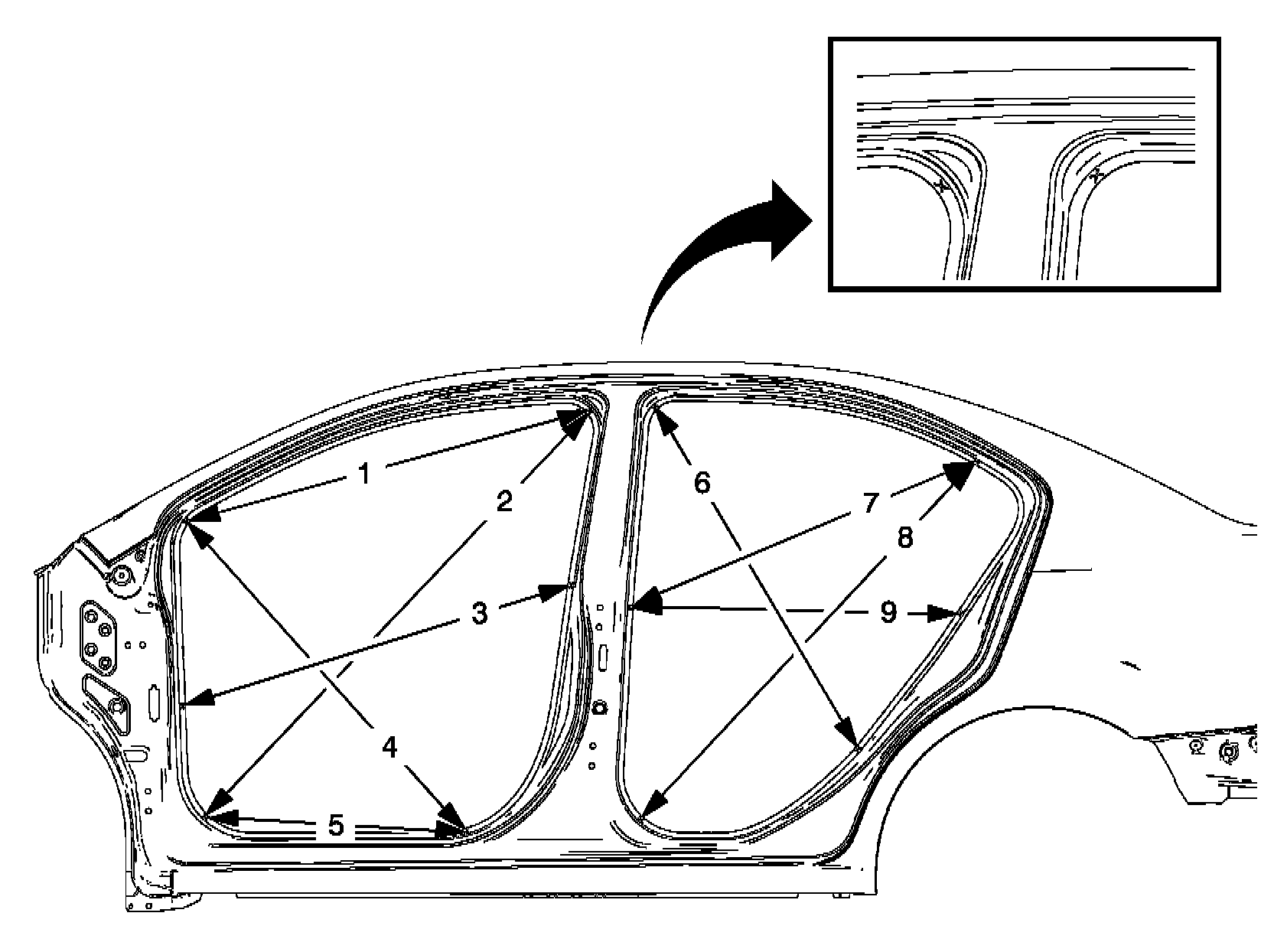

Side

^TE:





(1)985 mm

(2)1319 mm

(3)955 mm

(4)981 mm

(5)611 mm

(6)946 mm

(7)886 mm

(8)1155 mm

(9)776 mm

###
