Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

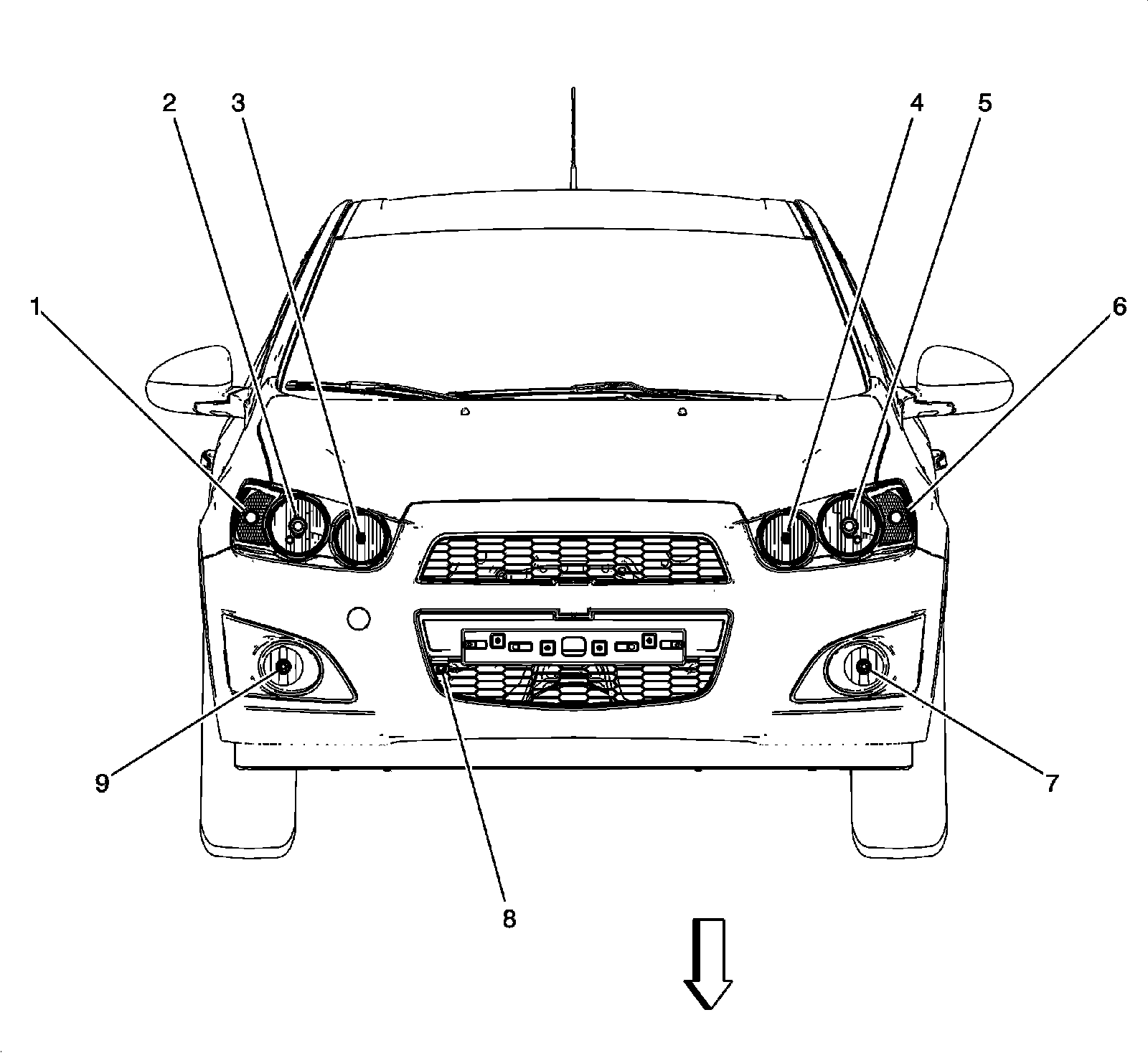

Front of Vehicle Components

1 - E4P Park/Turn Signal Lamp- Right

2 - E4H Headlamp- Right Low Beam

3 - E4F Headlamp- Right High Beam

4 - E4E Headlamp- Left High Beam

5 - E4G Headlamp- Left Low Beam

6 - E4N Park/Turn Signal Lamp- Left

7 - E29LF Fog Lamp- Left Front (T3U)

8 - B9 Ambient Air Temperature Sensor

9 - E29RF Fog Lamp- Right Front (T3U)
