Exhaust Temperature Sensor 1

Powertrain Component Views

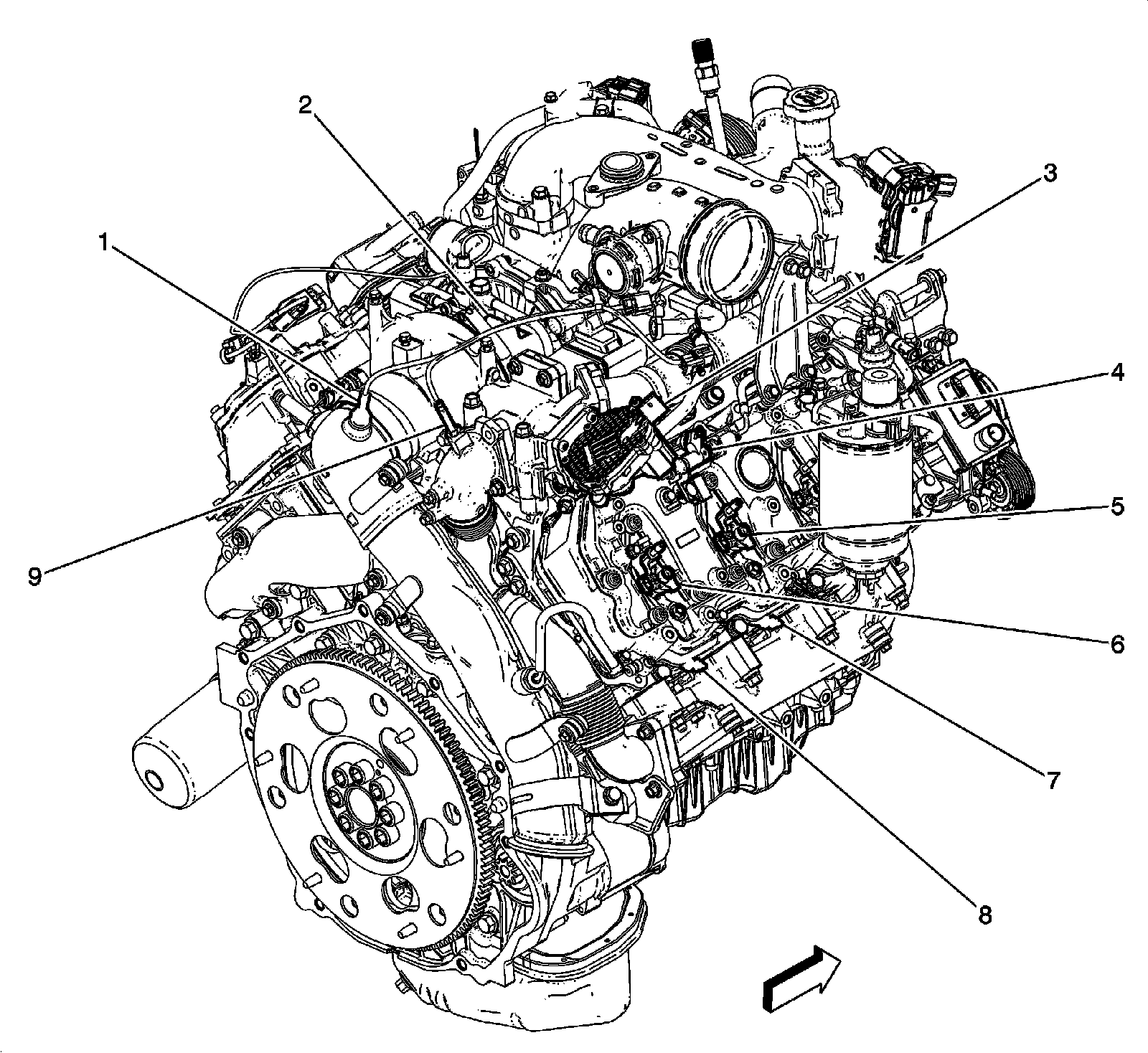

Right Rear Side of the Engine Components (Diesel)




1 - Exhaust Temperature Sensor 1
2 - Turbocharger Vane Position Control Solenoid Valve
3 - Exhaust Gas Recirculation Cooler Bypass Valve (LML)
4 - Exhaust Aftertreatment Fuel Injector
5 - Fuel Injector 5
6 - Fuel Injector 7
7 - Glow Plug 5
8 - Glow Plug 7
9 - Exhaust Gas Recirculation (EGR) Temperature Sensor 1
