Inflatable Restraint Instrument Panel Module Inner Bracket Replacement

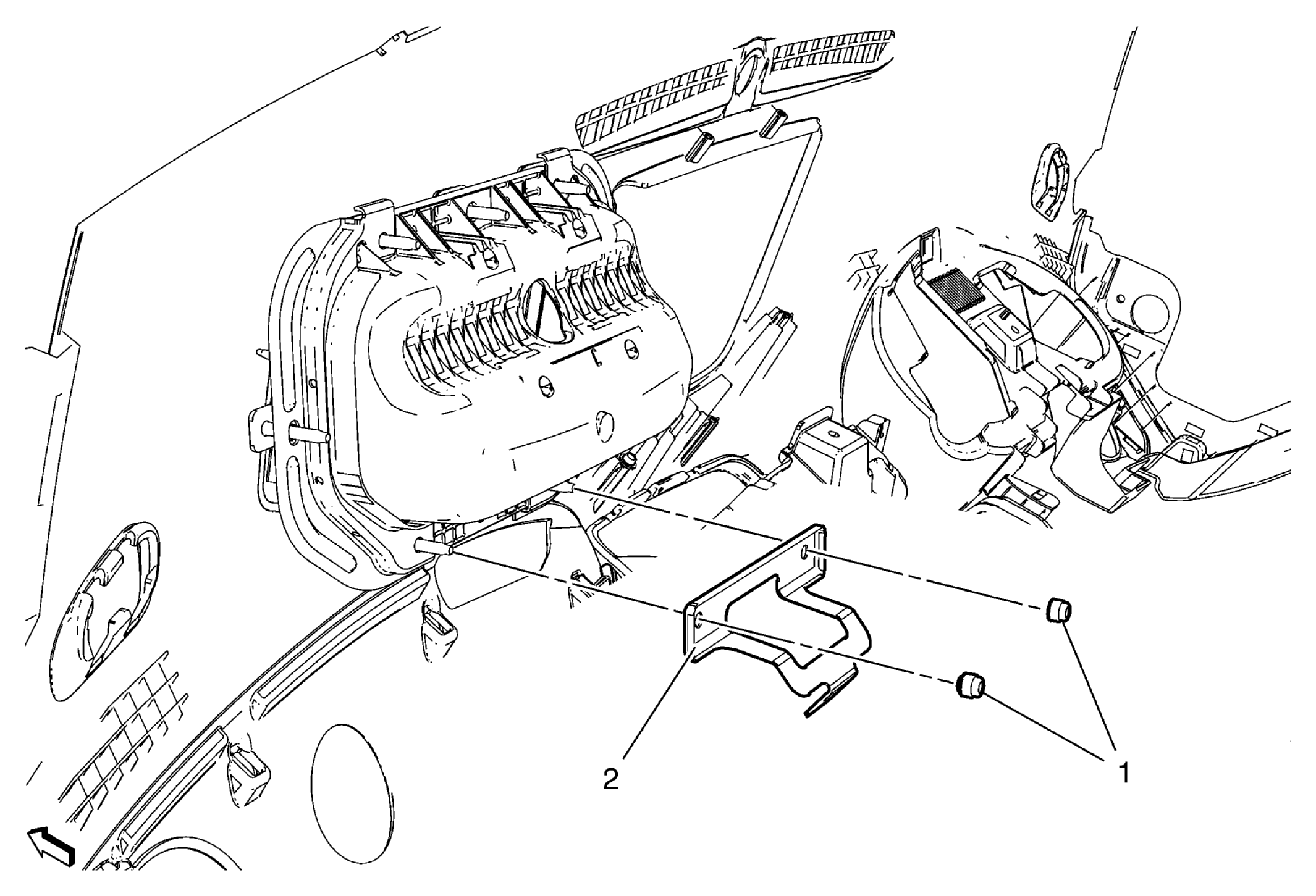

Fig 1: View Of Instrument Panel Inflatable Restraint Module Bracket Assembly And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Inflatable Restraint Instrument Panel Module Inner Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution in the Preface section. Tighten 8 N.m(71 lb in)
2	Inflatable Restraint Instrument Panel Module Inner Bracket
