Ignition and Start Switch Opening Cover Replacement

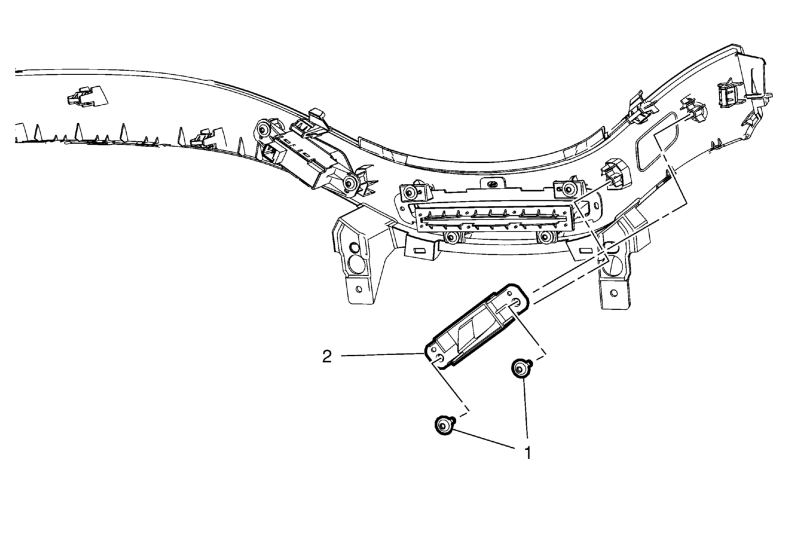

Fig 1: Ignition & Start Switch Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel molding - passenger side. Refer to Instrument Panel Molding Replacement - Passenger Side .
1	Ignition and Start Switch Opening Cover Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Ignition and Start Switch Opening Cover
