Body Control Systems




Body Control System Schematics

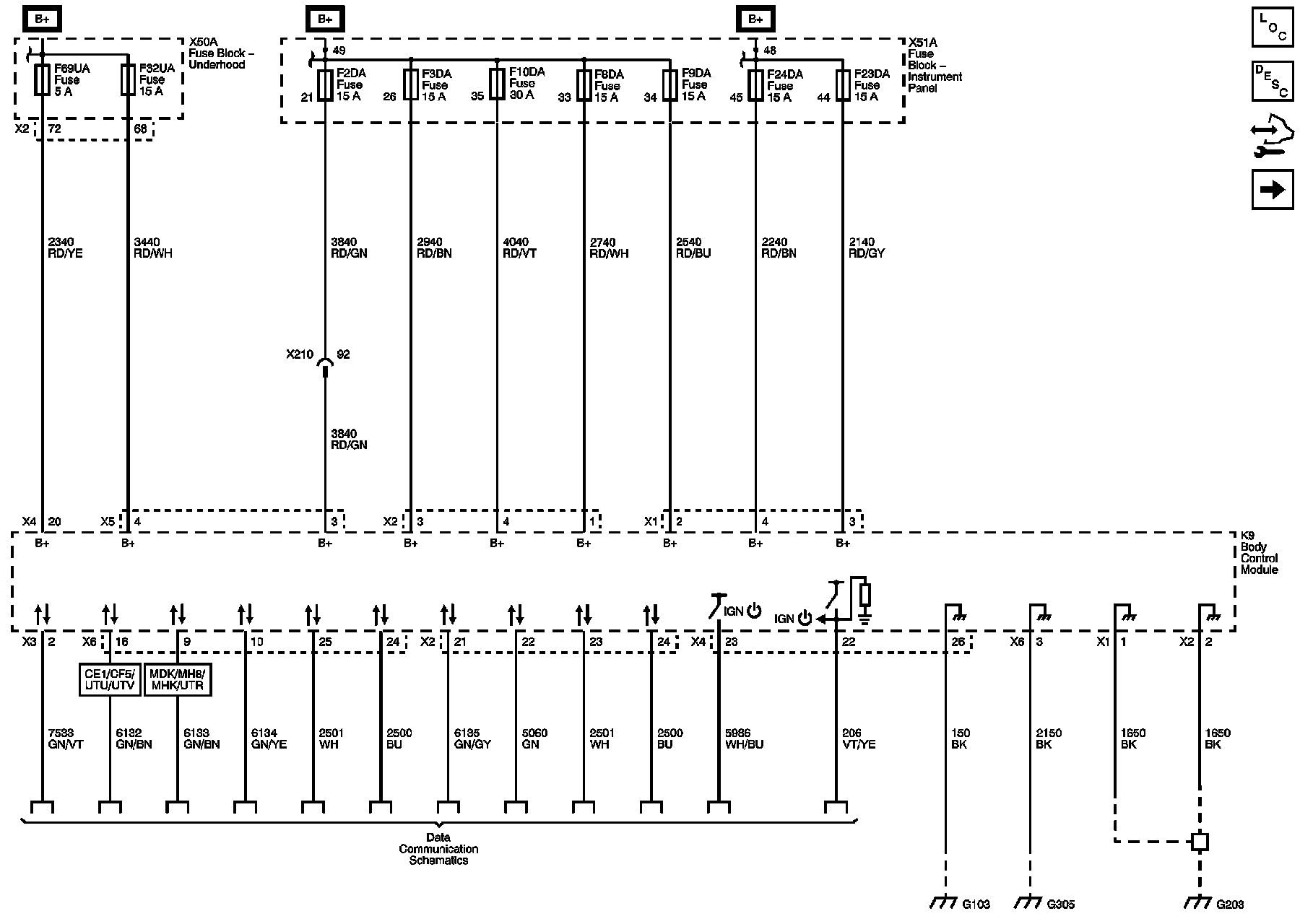

Power, Ground and Data Communication References

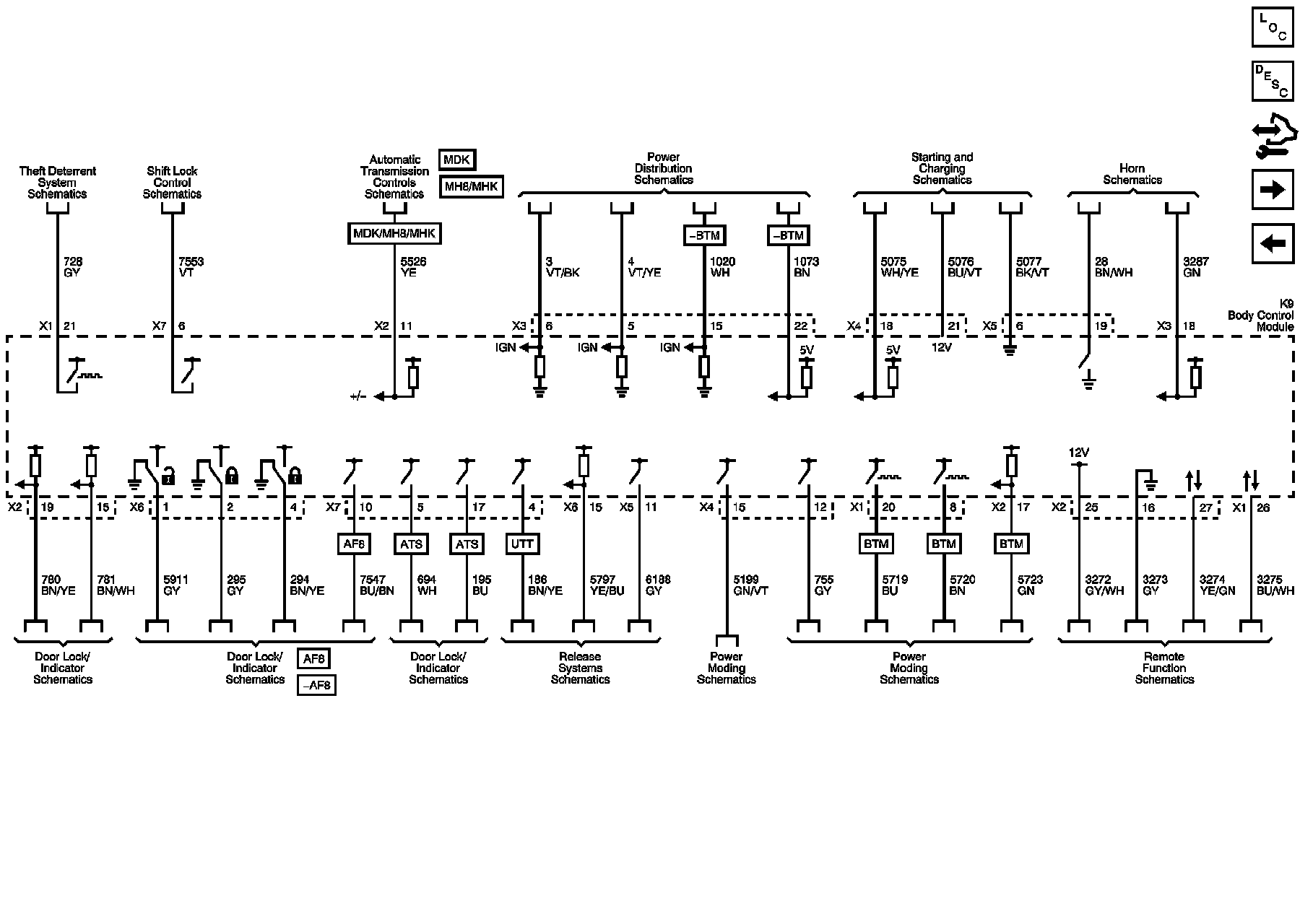

Subsystem References (1 of 3)

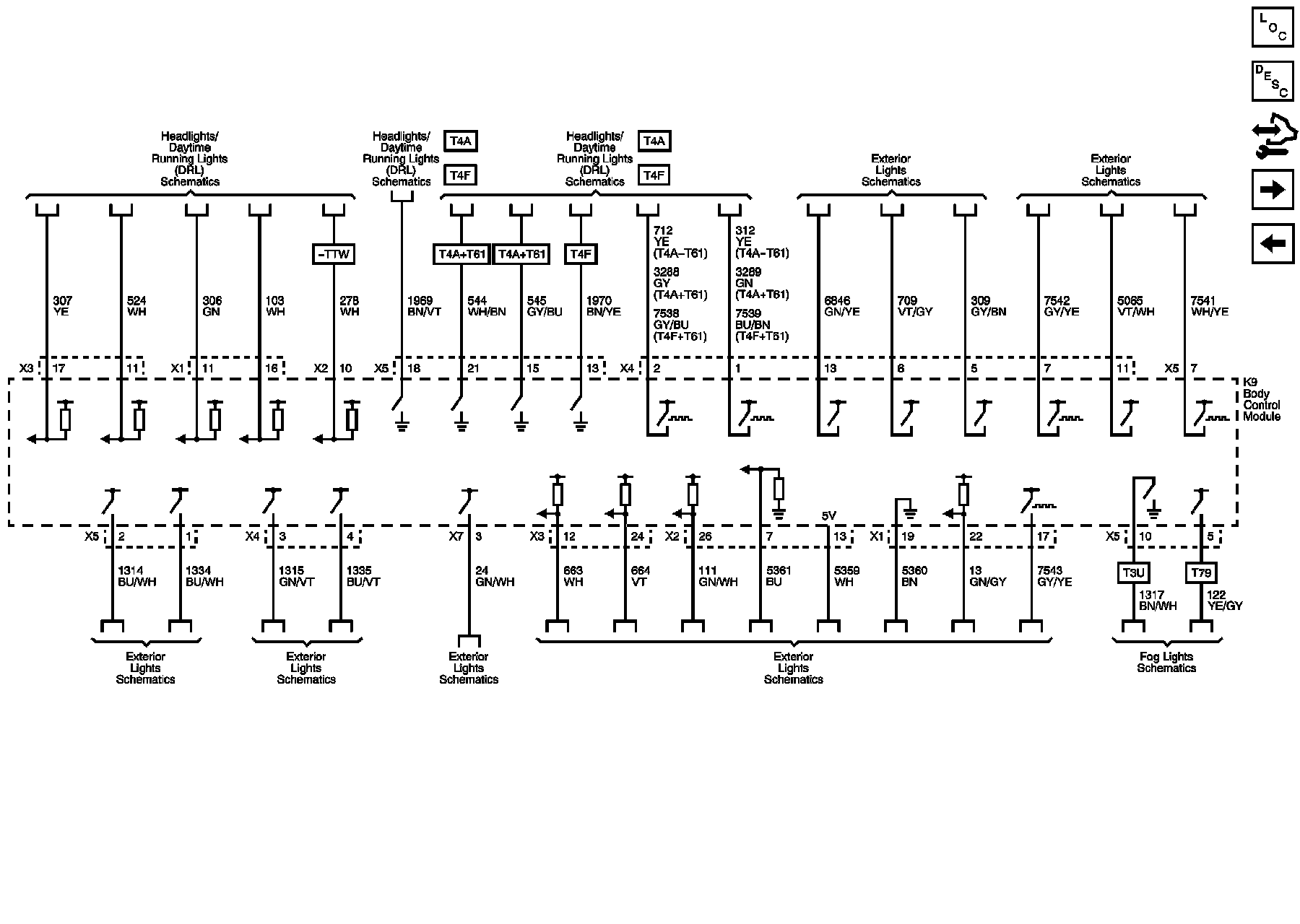

Subsystem References (2 of 3)

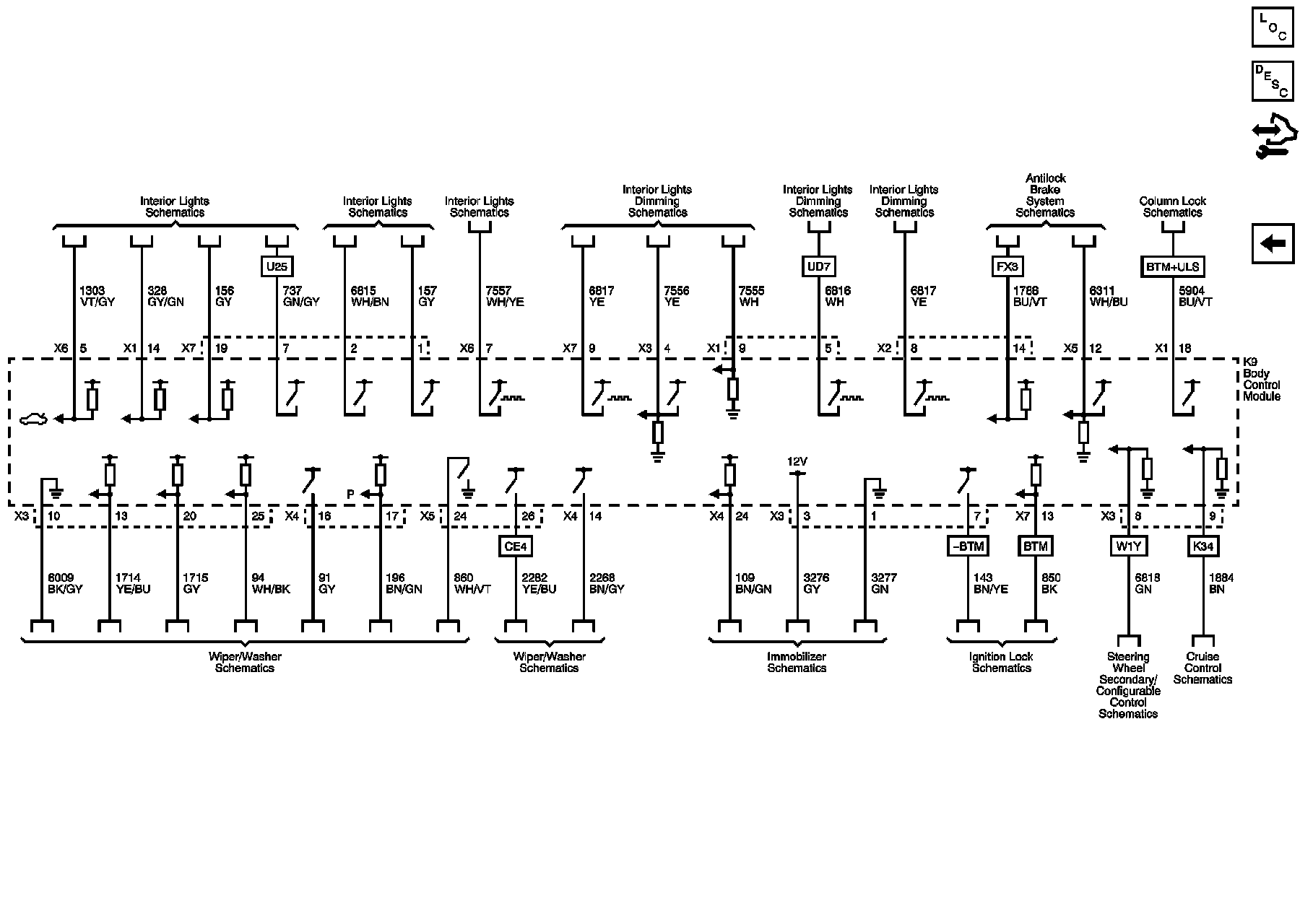

Subsystem References (3 of 3)
