Fusible Link: Locations

Harness Routing Views

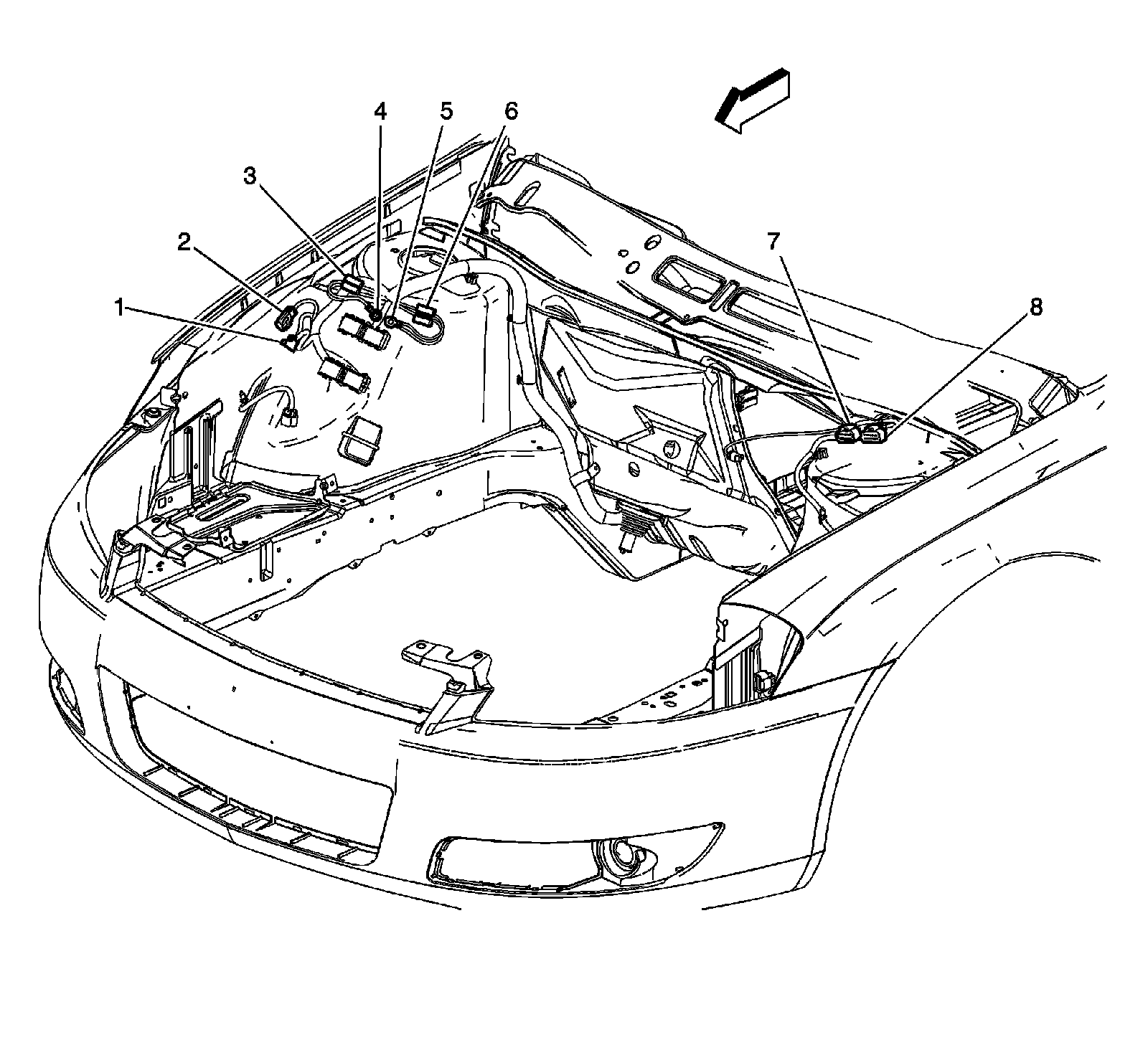

Instrument Panel Harness Routing- Engine Compartment





1 - X123 (9C1 or 9C3)

2 - X105

3 - Fusible Link (9C1 or 9C3)

4 - Positive Battery Voltage Stud (Fuse Block)

5 - Positive Battery Voltage Stud (Fuse Block)

6 - Fusible Link (9C1 or 9C3)

7 - X101

8 - X111
