Engine Compartment Fuse Block - Owners Manual

Engine Compartment Fuse Block

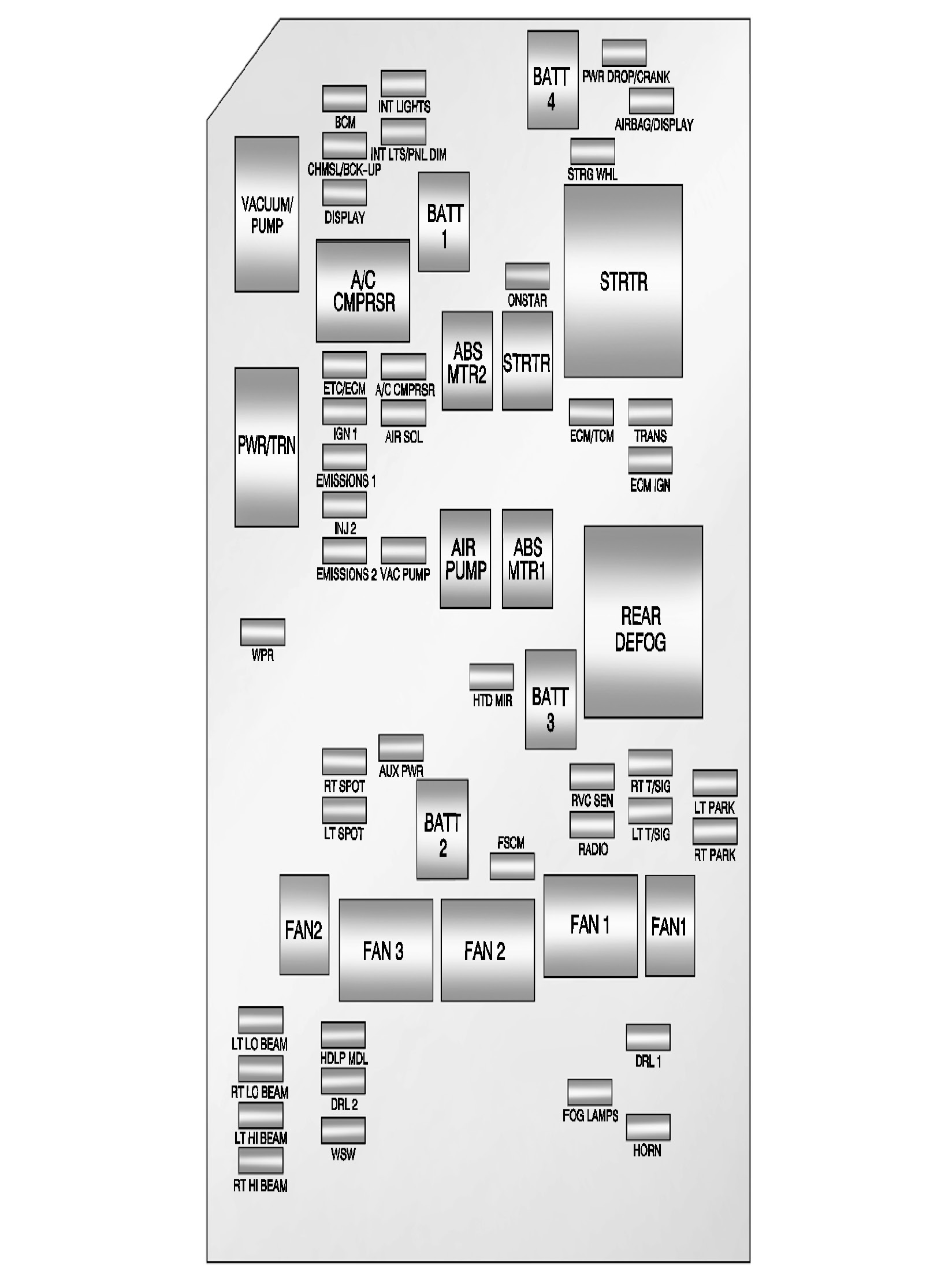

The engine compartment fuse block is located on the passenger side of the engine compartment, by the battery.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

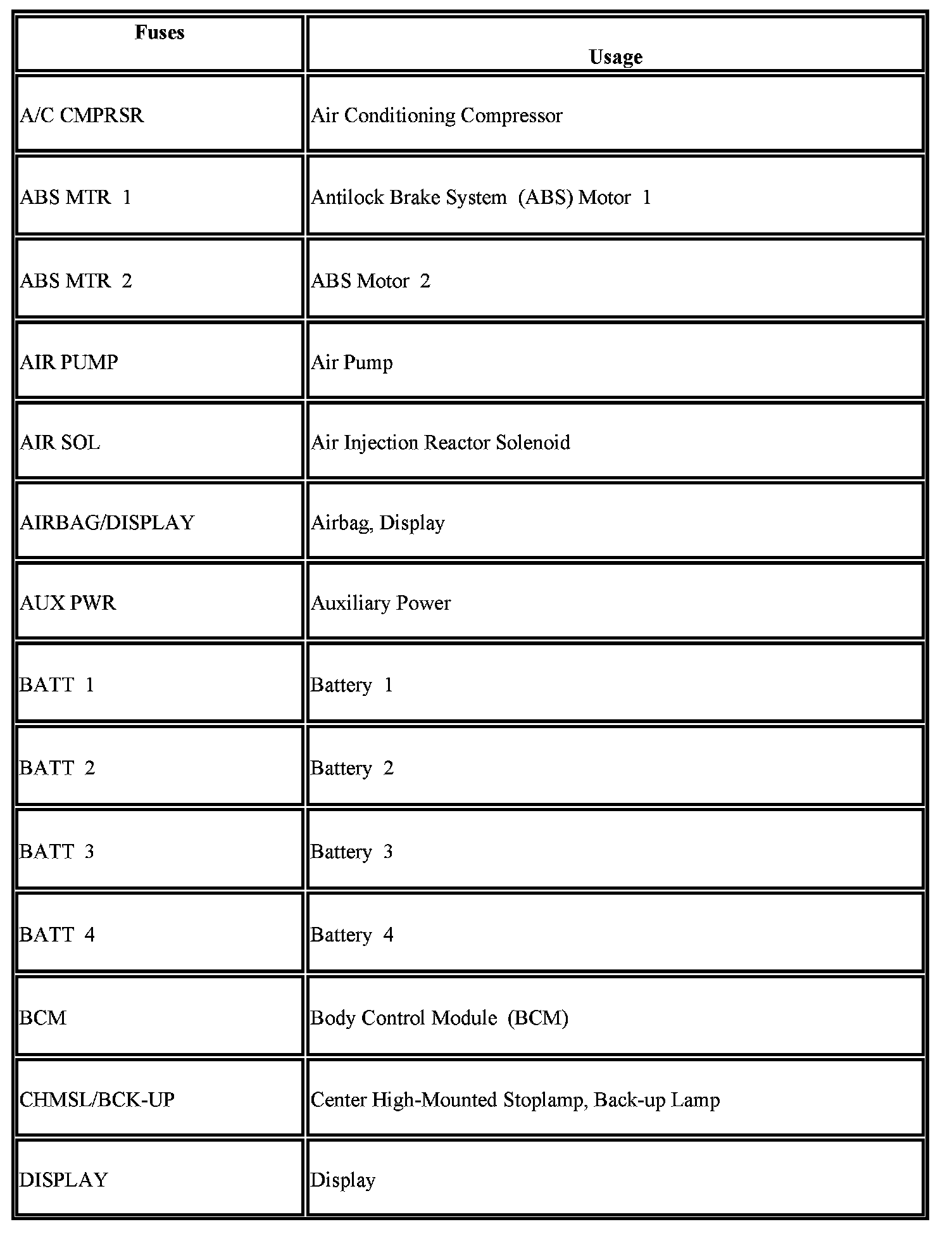

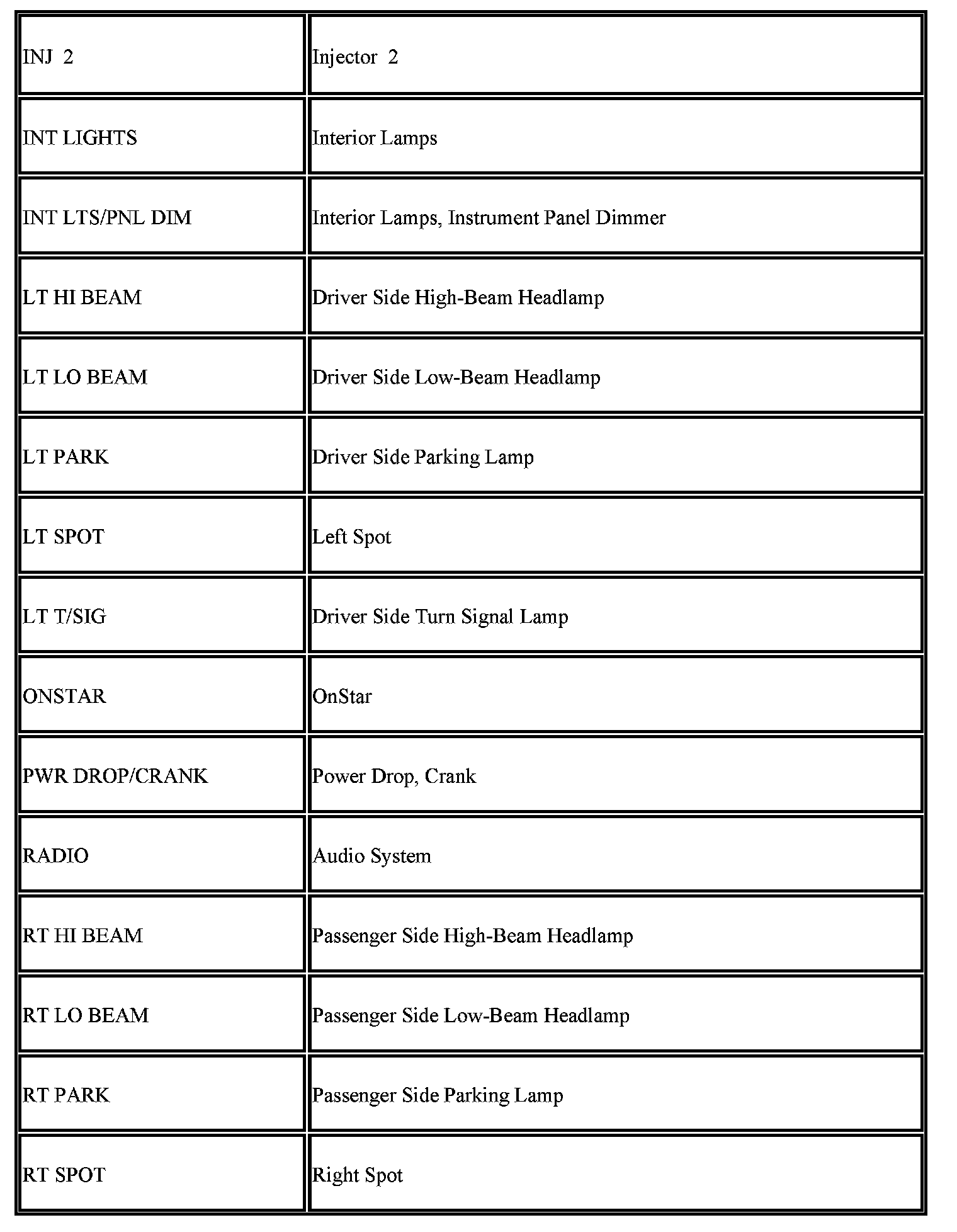

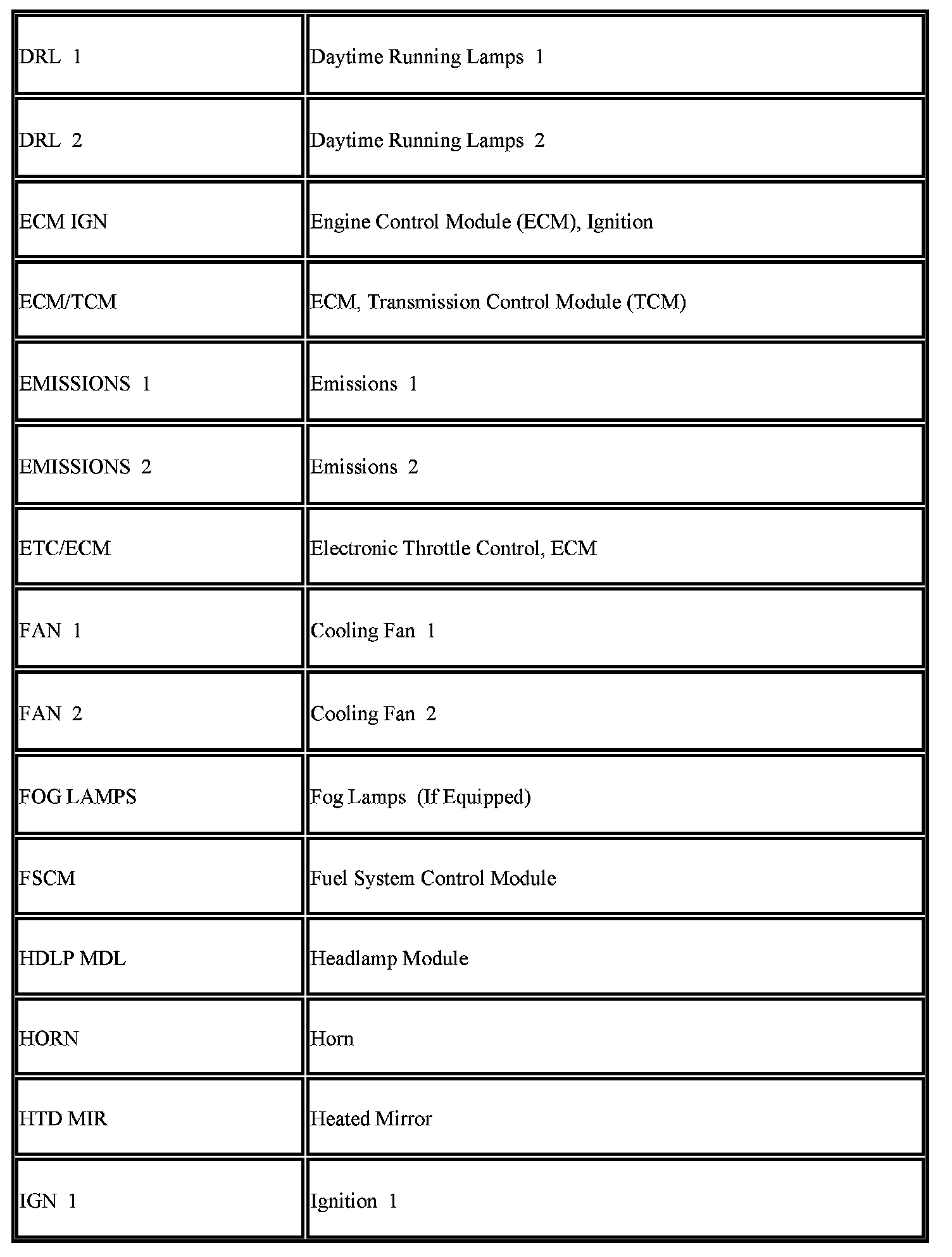

The vehicle may not be equipped with all of the fuses and relays shown.
