Left Front of Engine Components

Powertrain Component Views

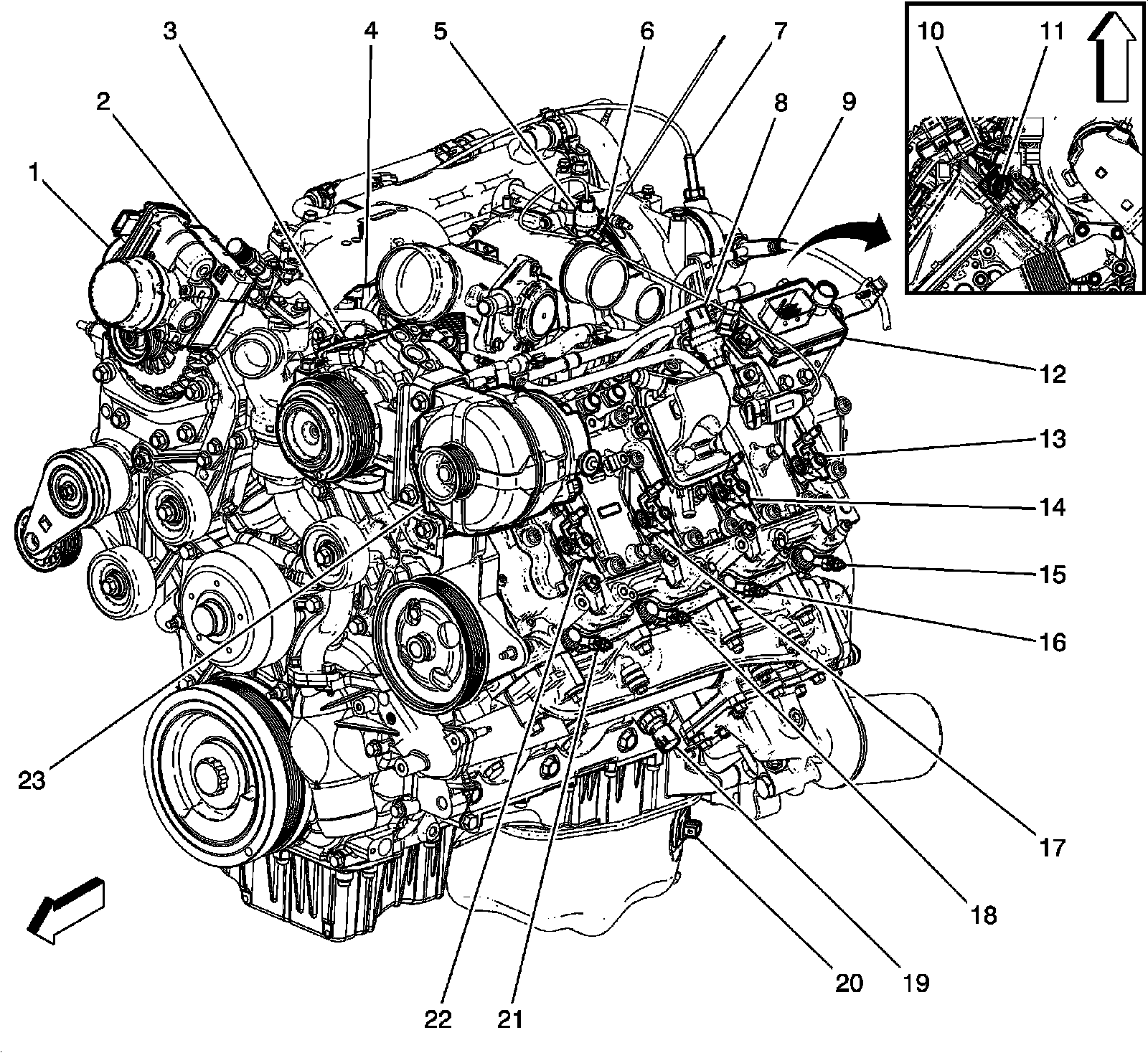

Left Front of Engine Components (RPO LGH)





1 - Intake Air Valve

2 - Intake Air Heater (IAH)

3 - A/C Compressor Clutch

4 - Exhaust Gas Recirculation (EGR) Valve

5 - Turbocharger Vane Position Sensor

6 - Charge Air Cooler Inlet Temperature Sensor

7 - Exhaust Gas Recirculation (EGR) Temperature Sensor 1

8 - Fuel Filter Pressure Switch

9 - Nitrogen Oxides Sensor 1

10 - Fuel Temperature Sensor 2

11 - Fuel Rail Pressure (FRP) Sensor

12 - Glow Plug Control Module (GPCM)

13 - Fuel Injector 8

14 - Fuel Injector 6

15 - Glow Plug 8

16 - Glow Plug 6

17 - Fuel Injector 4

18 - Glow Plug 4

19 - Engine Oil Pressure (EOP) Sensor

20 - Engine Oil Level (EOL) Switch

21 - Glow Plug 2

22 - Fuel Injector 2

23 - Generator
