Headliner Components

Headliner Components

Component Name Callout
E37M Dome/Reading Lamps - Middle 1
A3R Sunshade - Right (D6I) 2
E37F Dome/Reading Lamps - Front 3
K77 Remote Control Door Lock Receiver 4
A10 Inside Rearview Mirror 5
B24 Cellular Phone Microphone (UE1) 6
A3L Sunshade - Left (D6I) 7

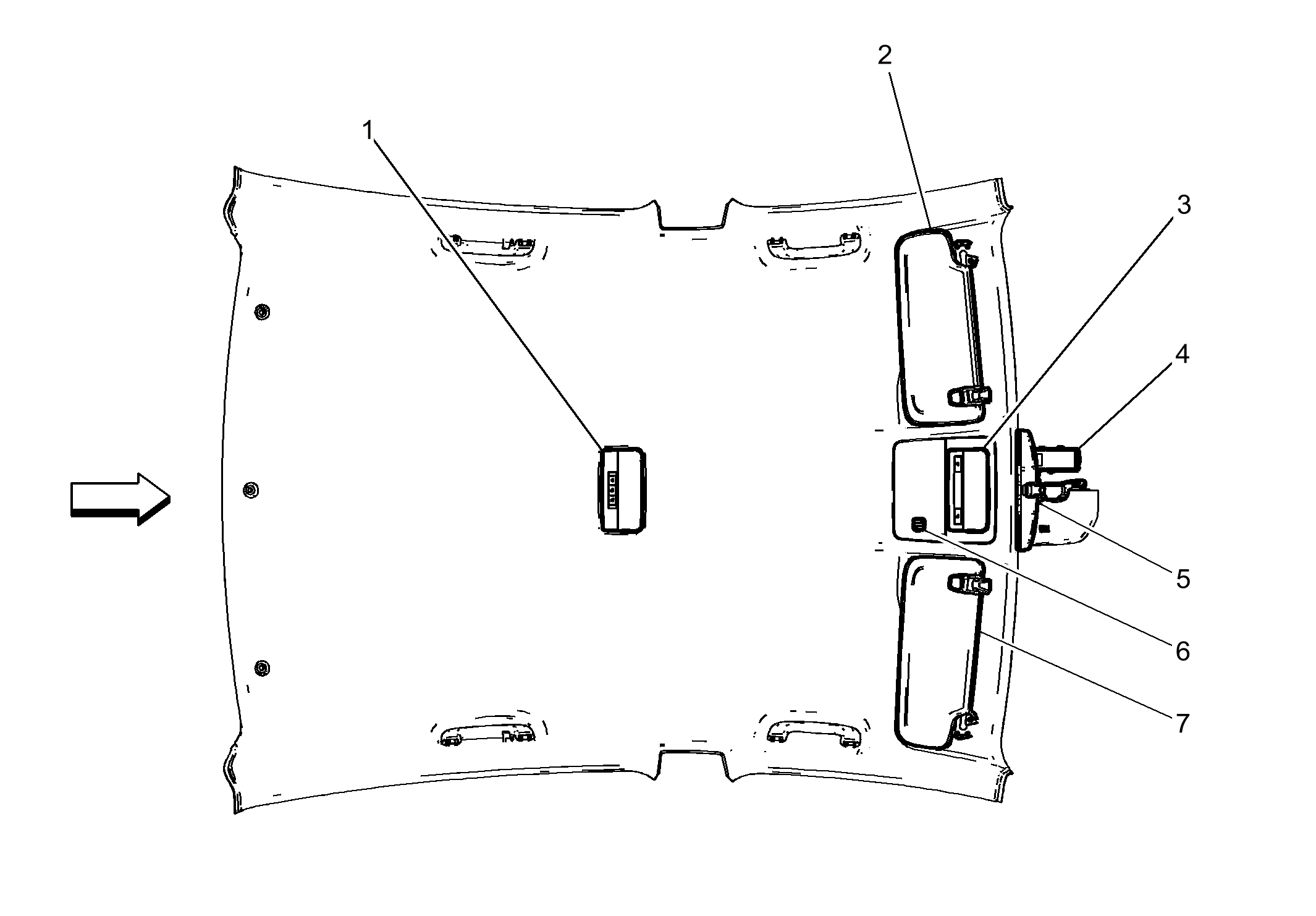

Fig 1: Headliner Components
GM2543199Courtesy of GENERAL MOTORS COMPANY
