Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

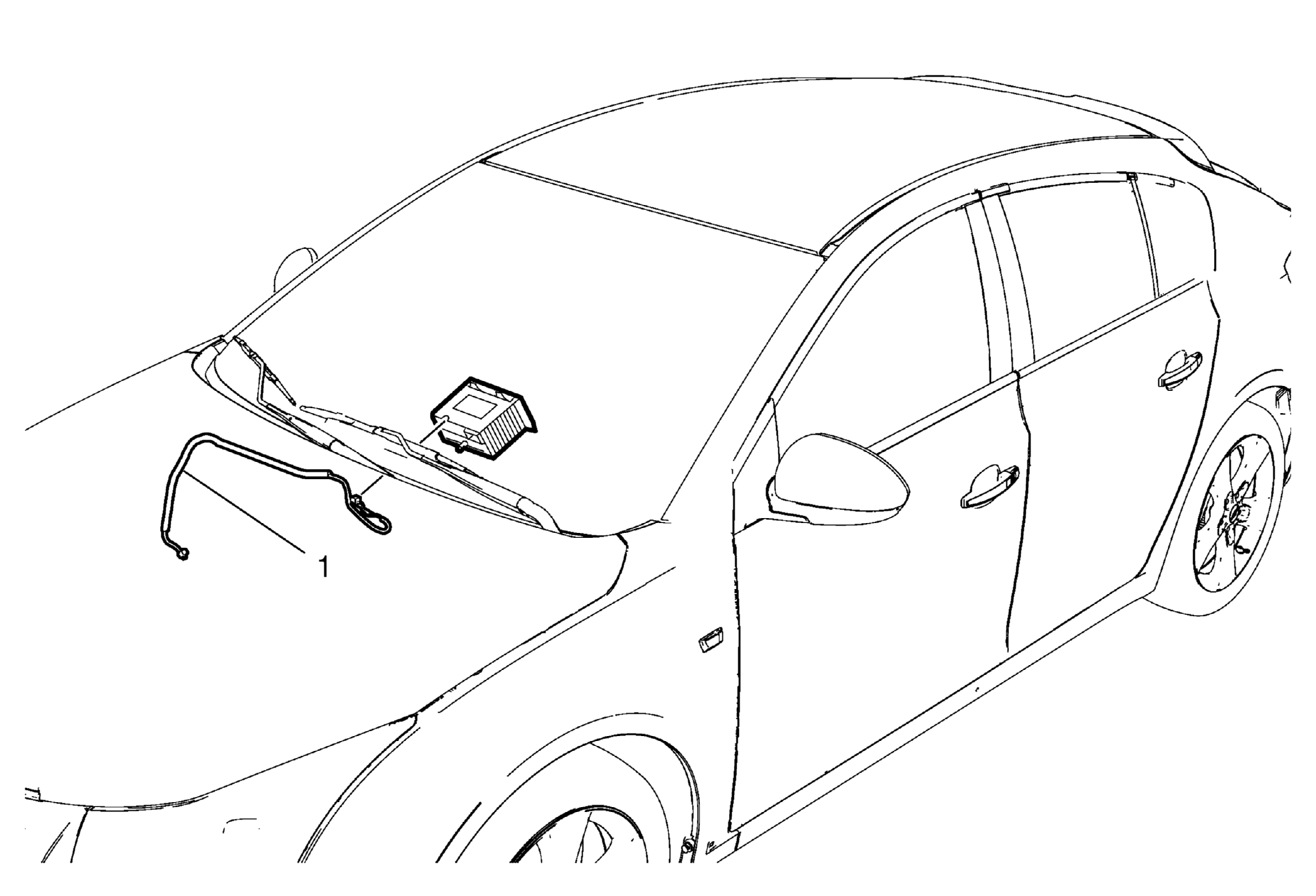

Fig 1: Radio Antenna Cable (Radio Cable)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Digital Radio Antenna Cable Procedures Locate the digital radio antenna cable in the instrument panel wiring harness assembly. Carefully cut the electrical tape. Disconnect electrical connectors. Replace the radio antenna cable. Secure the radio antenna cable within the electrical conduit.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Digital Radio Antenna Cable

Procedures

Locate the digital radio antenna cable in the instrument panel wiring harness assembly.
Carefully cut the electrical tape.
Disconnect electrical connectors.
Replace the radio antenna cable.
Secure the radio antenna cable within the electrical conduit.
