Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

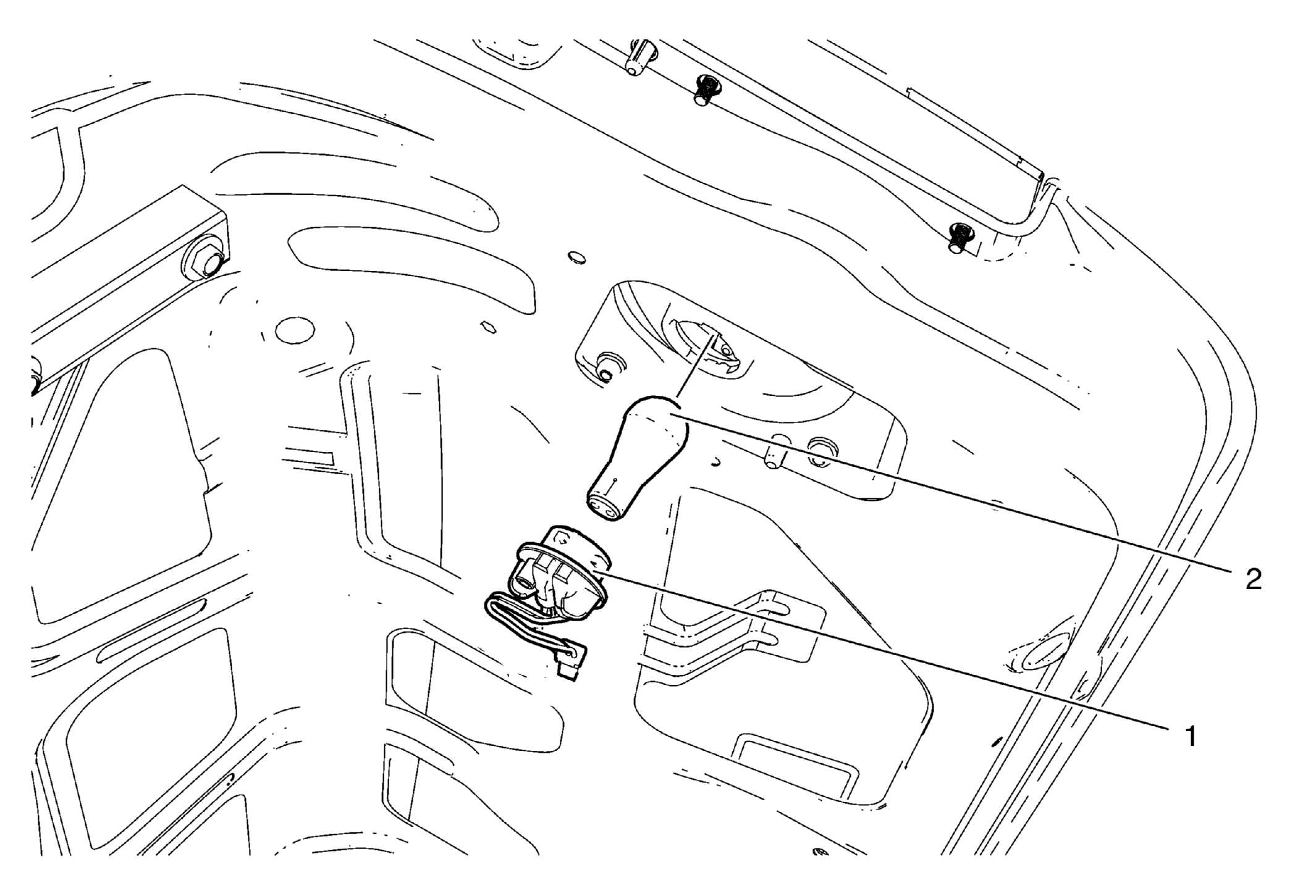

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement
1	Back Up Lamp Socket Procedure Rotate the lamp socket counterclockwise and remove from the tail lamp housing.
2	Back Up Lamp Bulb WARNING: Refer to Halogen Bulb Warning .
