Removal Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) or Headlining Trim Panel Replacement (without Sunroof) .

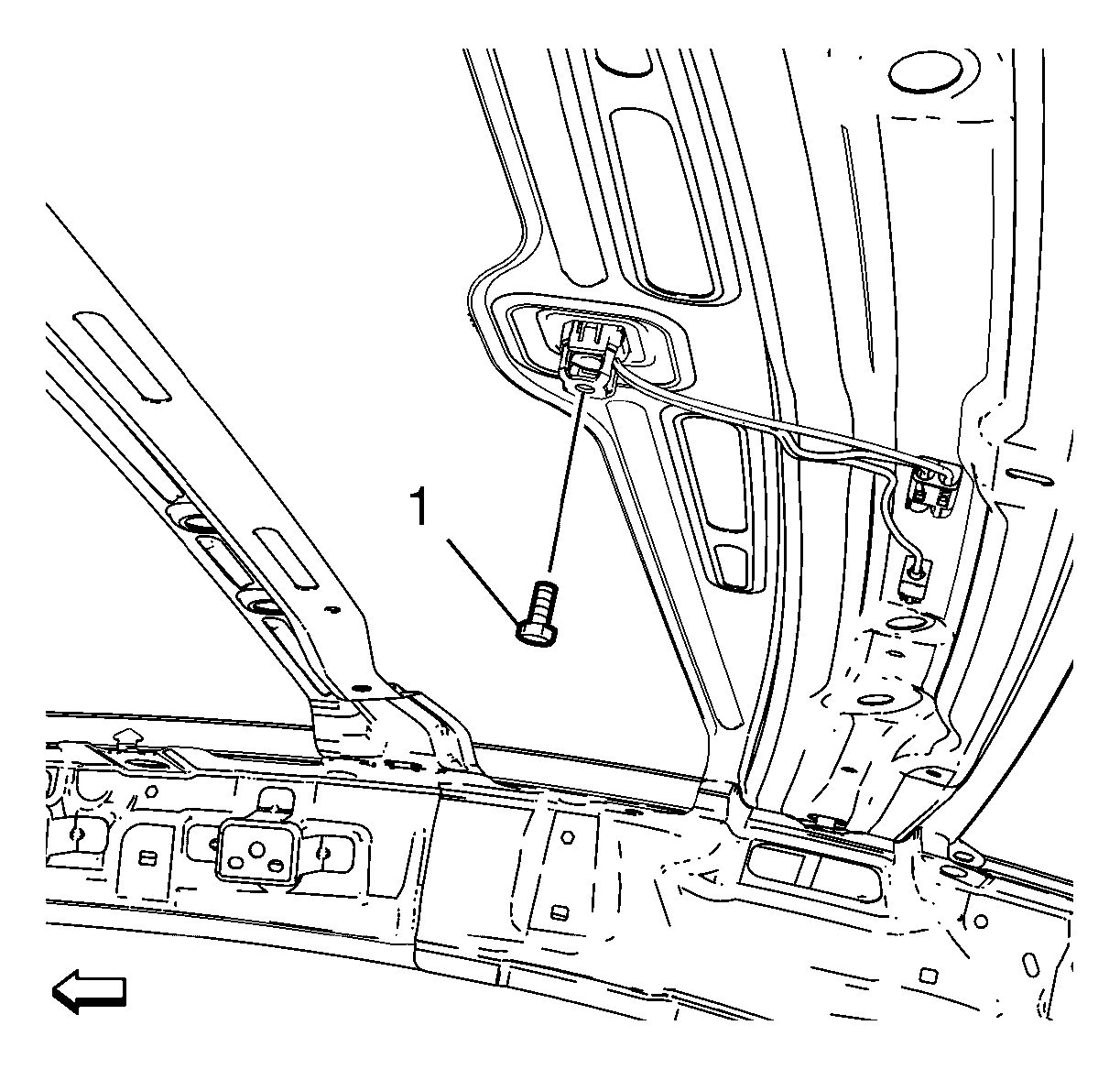

    2. Fig 1: Radio Antenna Base Bolt
    GM2371593Courtesy of GENERAL MOTORS CORP.
  2. Remove the radio antenna base bolt (1).
    3. Fig 2: Radio Antenna Base
    GM2371594Courtesy of GENERAL MOTORS CORP.
  3. Remove the radio antenna base (1).
  4. Disconnect the electrical connectors.
