Brake Fluid Level Indicator Switch Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

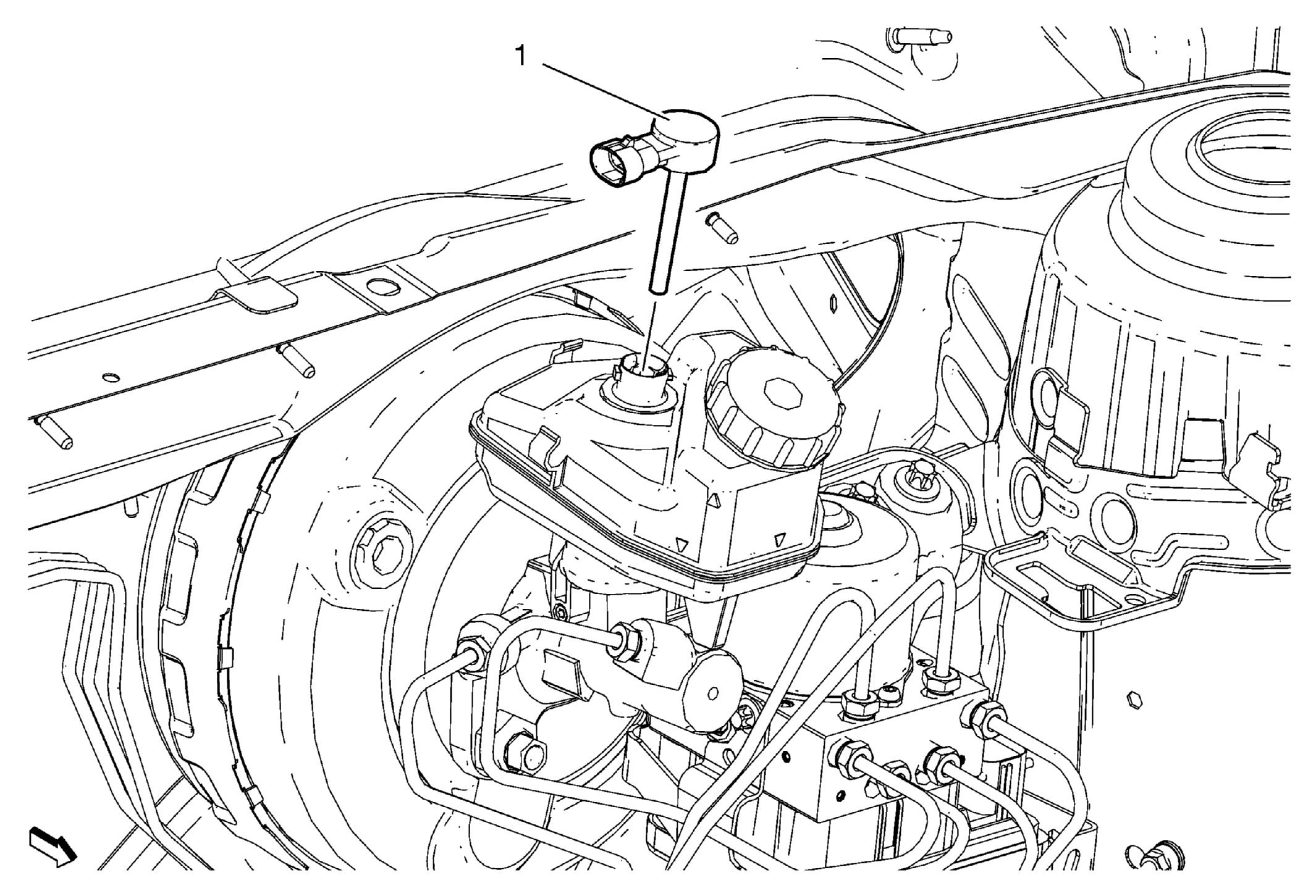

Fig 1: Brake Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedure: Remove and discard the brake fluid from the master cylinder reservoir.
1	Brake Fluid Level Indicator Switch Procedure Disconnect electrical connector. Rotate indicator switch clockwise to remove.

Callout

Component Name

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

Preliminary Procedure: Remove and discard the brake fluid from the master cylinder reservoir.

Brake Fluid Level Indicator Switch

Procedure

Disconnect electrical connector.
Rotate indicator switch clockwise to remove.
