Cruze LS, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Wirin Schematics
>>
Antilock Brake System Wiring Schematics
>>
Power, Ground, Serial Data and Traction Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power, Ground, Serial Data and Traction Control

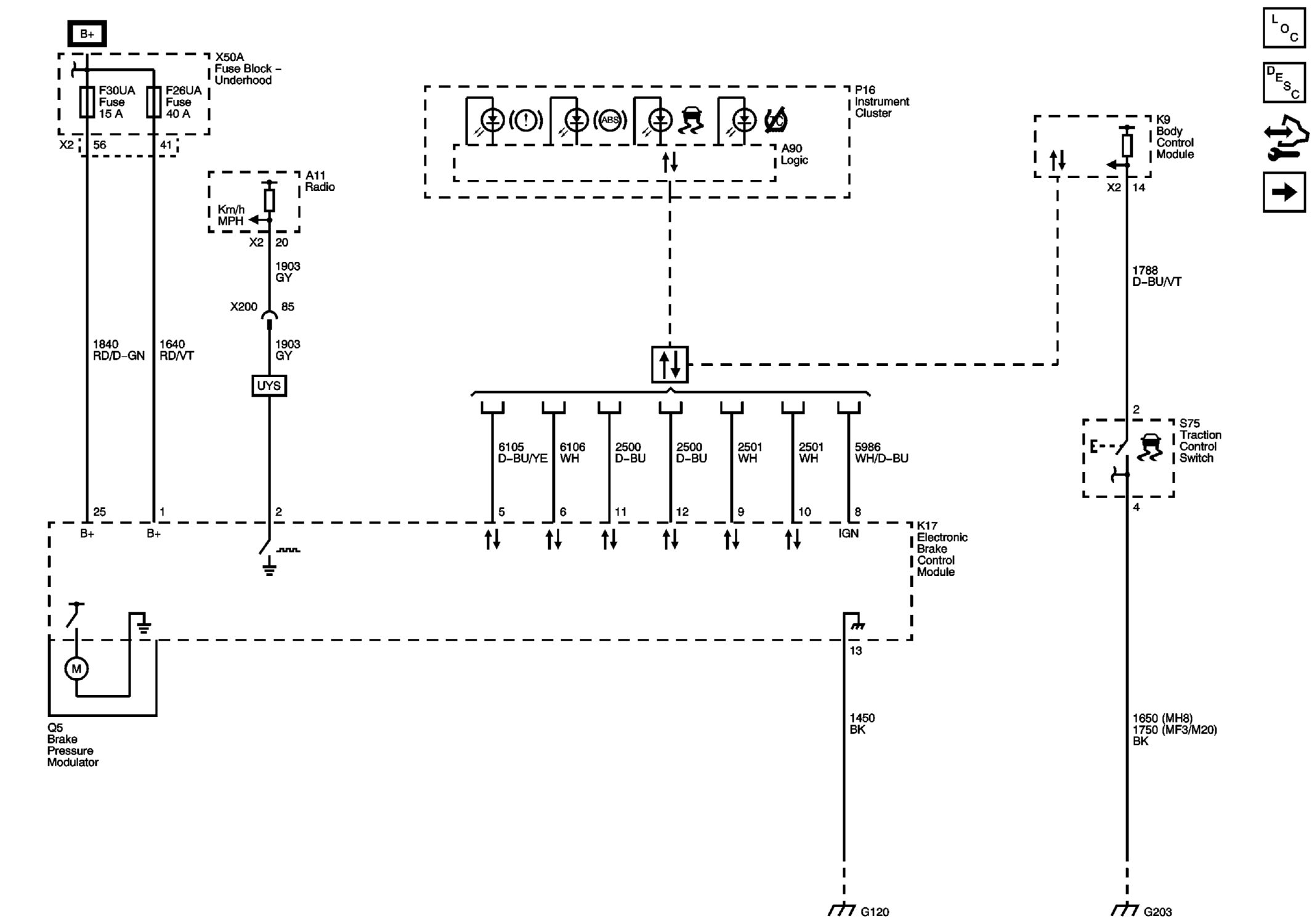

Fig 1: Power, Ground, Serial Data and Traction Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
