Door Handle Switches And References (ATH)

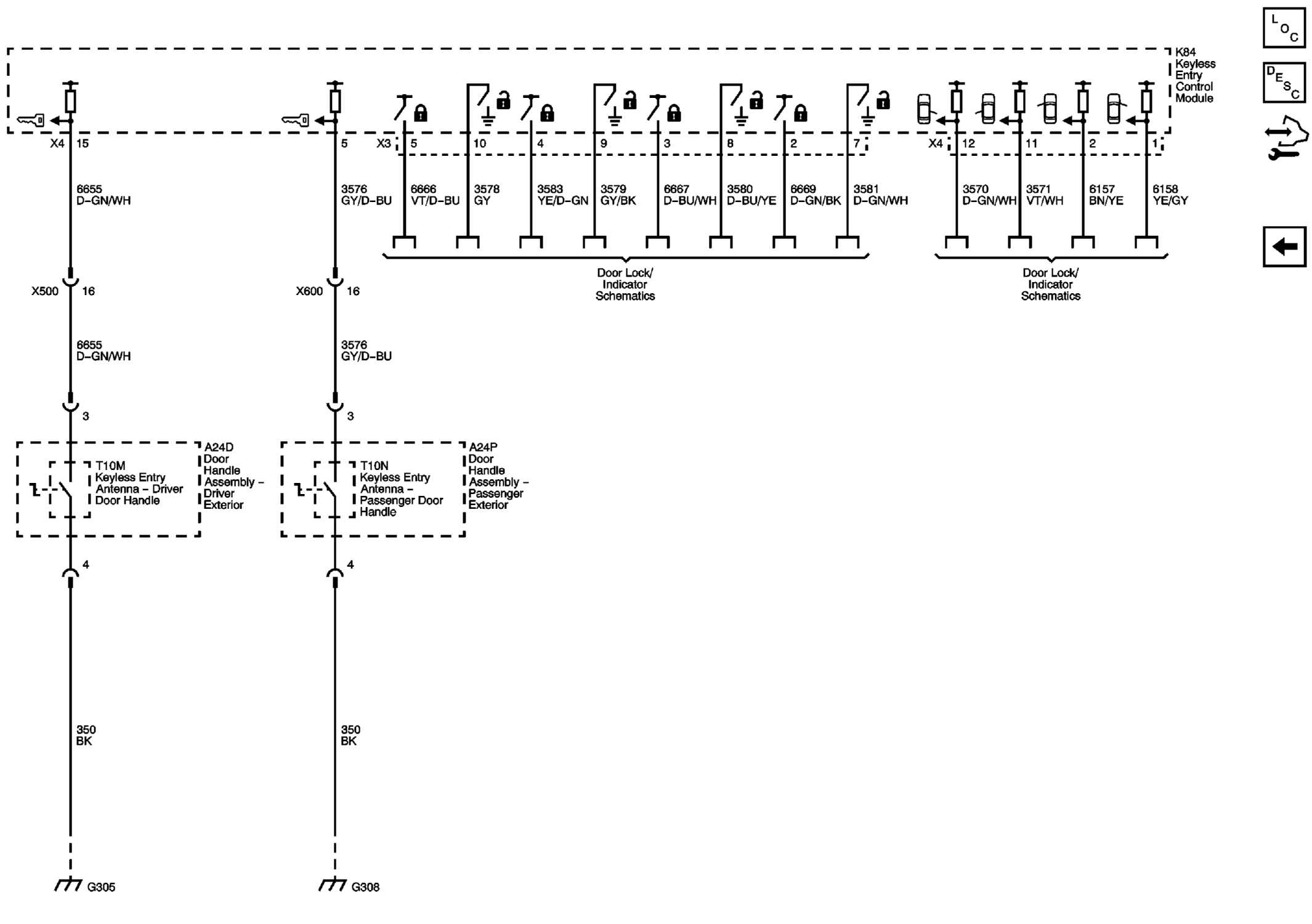

Fig 1: Door Handle Switches And References (ATH) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
