Audio Input (Without KTA)

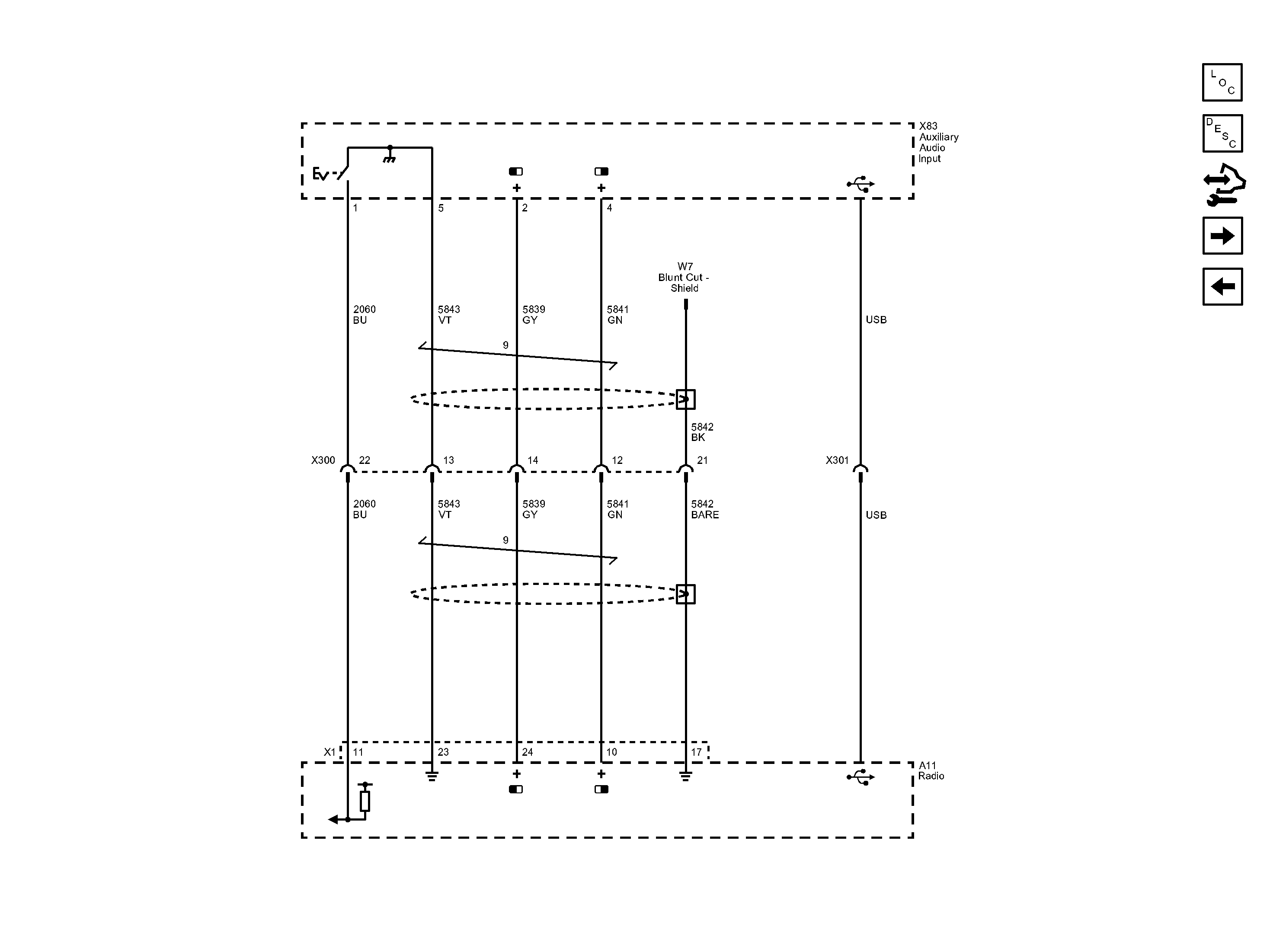

Fig 1: Audio Input (without KTA) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
