Parking Assist Control Module: Locations

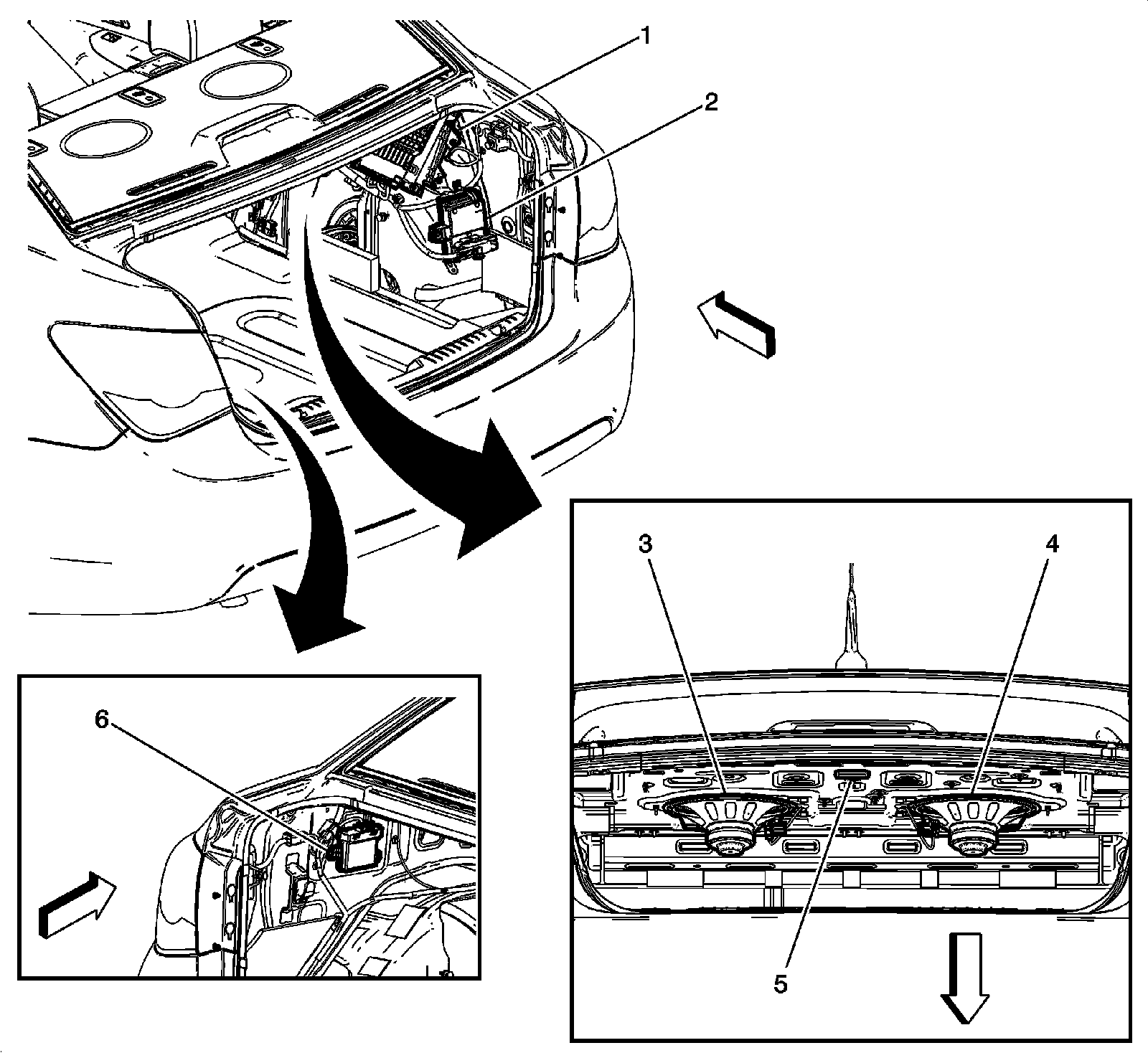

Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment Components




1 - T3 Audio Amplifier (UQA)
2 - K27 Fuel Pump Control Module
3 - P19N Speaker - Left Subwoofer
4 - P19AA Speaker - Right Subwoofer
5 - E8S Rear Compartment Courtesy Lamp
6 - K41R Rear Parking Assist Control Module (UD7)
