Engine Coolant Temperature Sensor 1

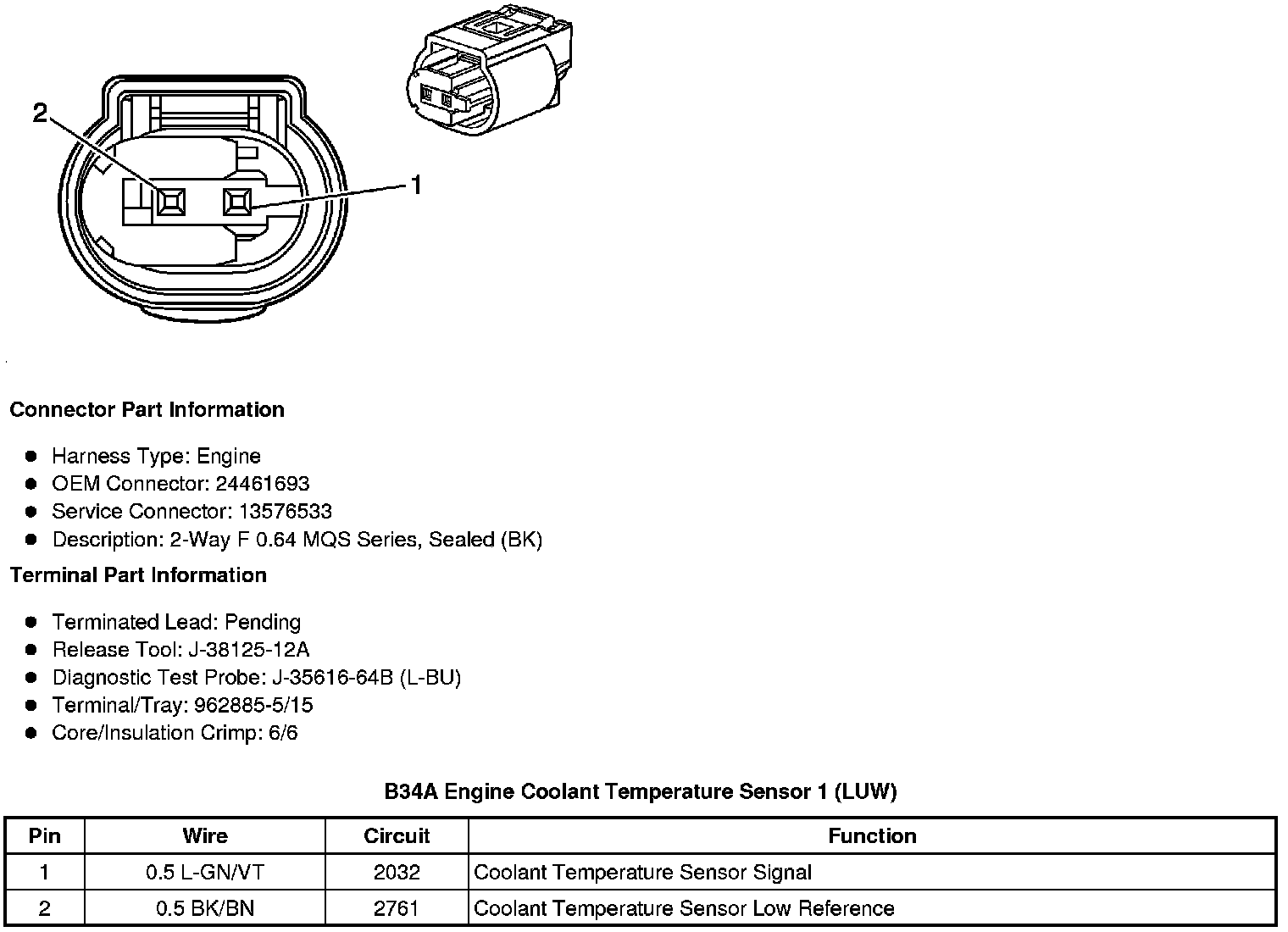

Component Connector End Views

B34A Engine Coolant Temperature Sensor 1 (LUW)
