Keyless Entry Antenna - Left
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Keyless Entry Antenna - Left

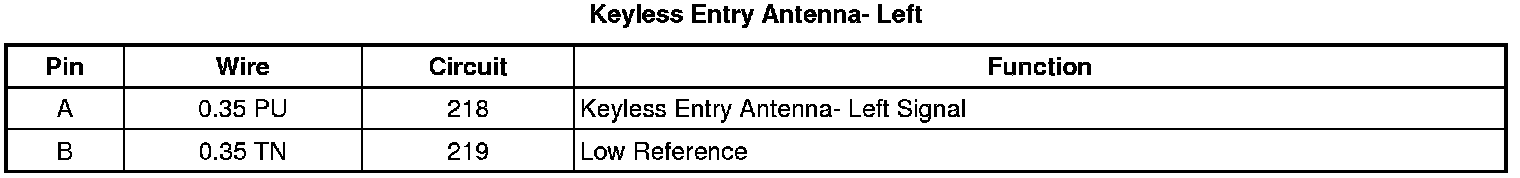

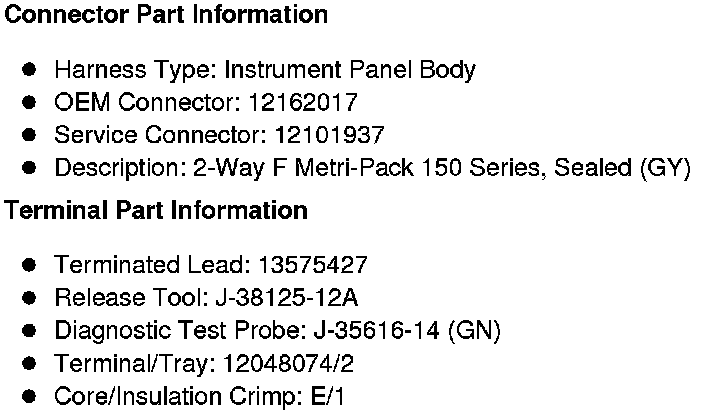

Component Connector End Views
Keyless Entry Antenna- Left
