Right Side of Engine Components

Powertrain Component Views

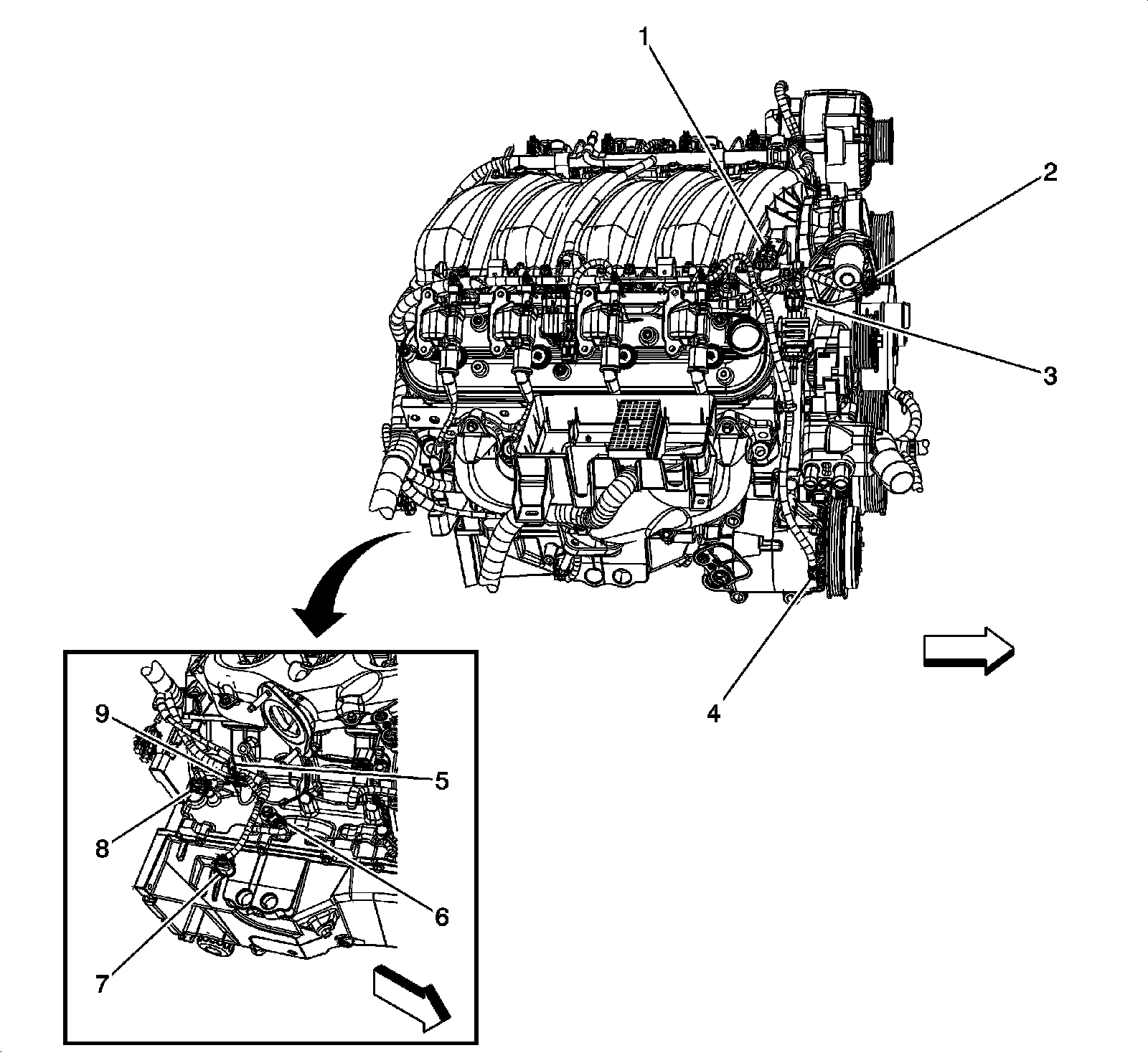

Right Side of Engine Components (LS3)

1 - Manifold Absolute Pressure (MAP) Sensor

2 - Throttle Body

3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

4 - A/C Compressor Clutch

5 - Starter Motor X1

6 - Knock Sensor (KS) 2

7 - Engine Oil Level and Temperature Sensor

8 - Crankshaft Position (CKP) Sensor

9 - Starter Motor X2
