Inflatable Restraint Side Impact Sensor Replacement

Inflatable Restraint Side Impact Sensor Replacement

Removal Procedure

Warning: Refer to SIR Inflator Module Handling and Storage Warning SIR Inflator Module Handling and Storage Warning.


1. Disable the SIR system. Refer to SIR Disabling and Enabling Service and Repair.

2. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side Front Side Door Trim Panel Replacement - Left Side or Front Side Door Trim Panel Replacement - Right Side Front Side Door Trim Panel Replacement - Right Side.




3. Remove the retaining bolts from the inflatable restraint side impact sensor.

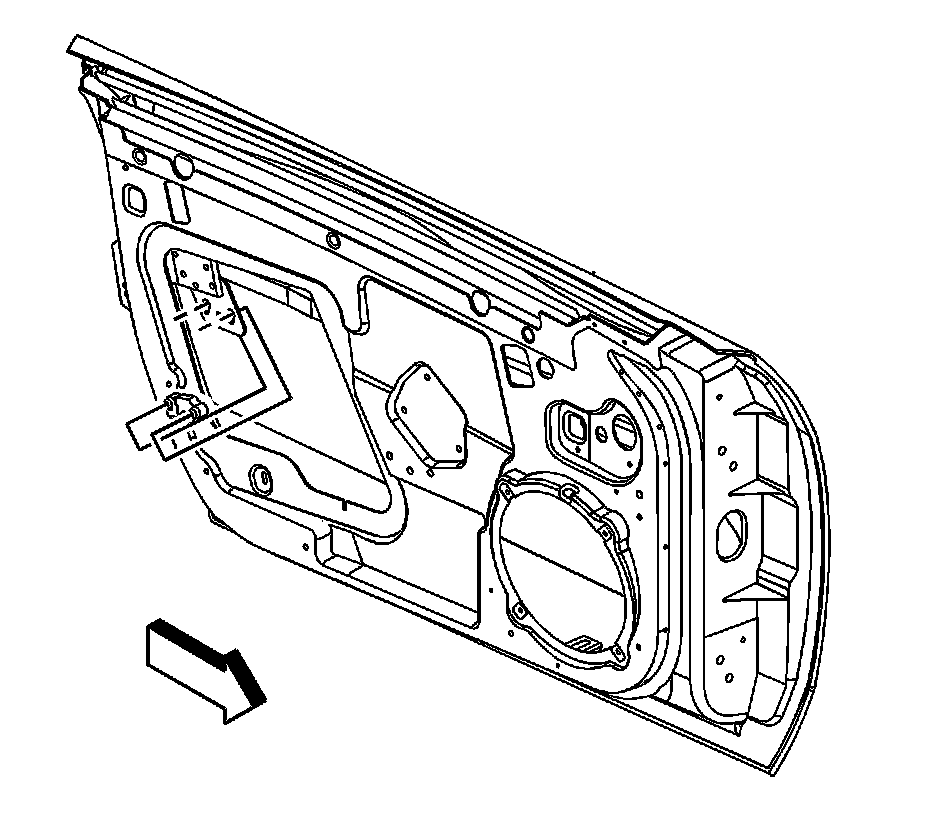

4. Remove the inflatable restraint side impact sensor (1) from the vehicle.

Installation Procedure




1. Install the inflatable restraint side impact sensor (1) to the vehicle.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the retaining bolts to the inflatable restraint side impact sensor.

Tighten the bolts to 9 Nm (80 lb in).

3. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side Front Side Door Trim Panel Replacement - Left Side or Front Side Door Trim Panel Replacement - Right Side Front Side Door Trim Panel Replacement - Right Side.

4. Enable the SIR system. Refer to SIR Disabling and Enabling Service and Repair.
