Installation Procedure

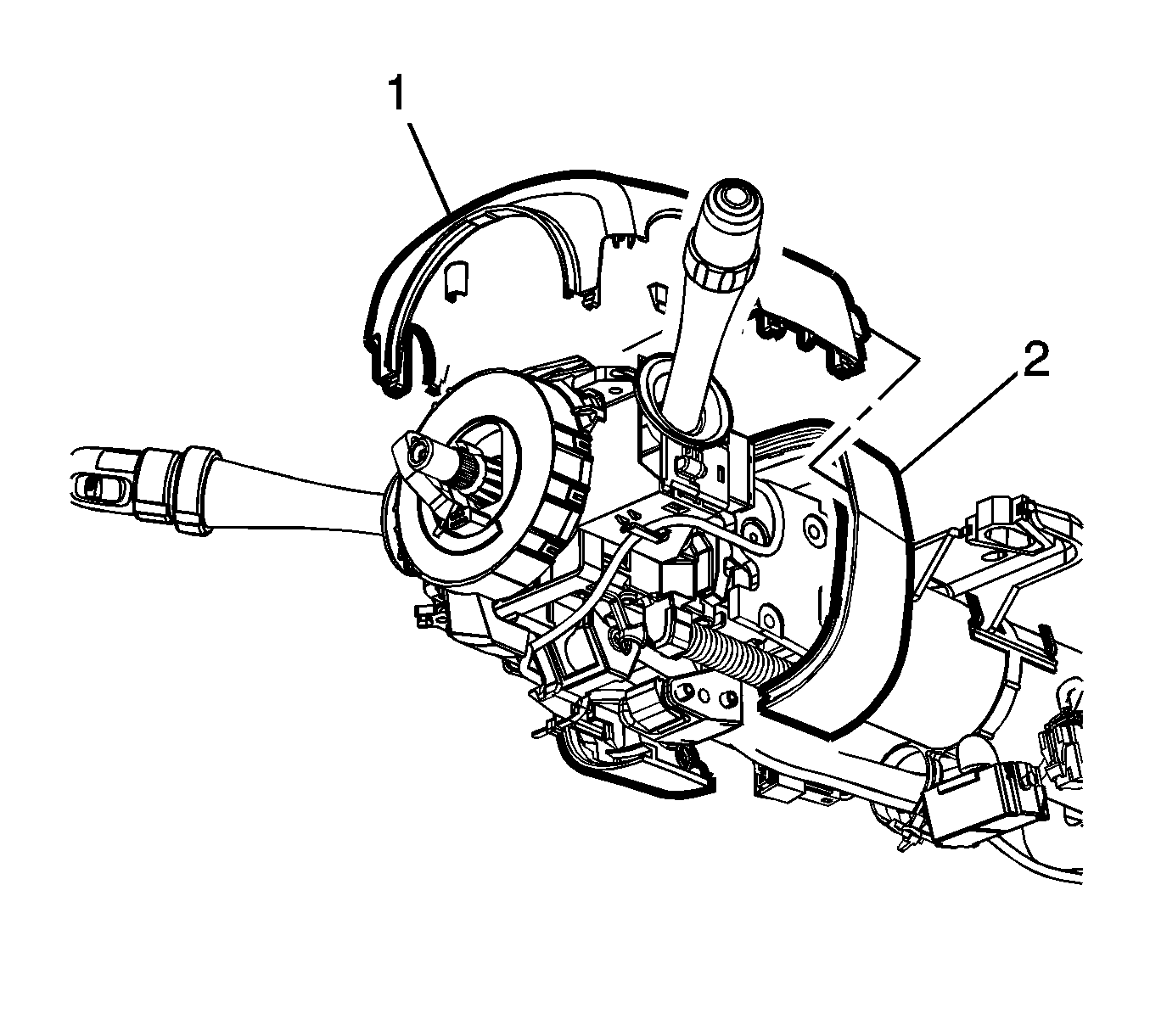

    Fig 1: Upper Steering Column Steering Column Trim Cover
    GM2713411Courtesy of GENERAL MOTORS COMPANY
  1. Install the steering column housing trim extension cover assembly (2).
  2. Install the upper steering column trim cover (1) to the steering column housing trim extension cover (2).
  3. Verify that the tabs on the upper steering column trim cover (1) are fully engaged with the slots in the steering column housing trim extension cover (2).
    4. Fig 2: Lower Steering Column Trim Cover
    GM2717700Courtesy of GENERAL MOTORS COMPANY
  4. Install the lower steering column trim cover (1) tabs into the steering column housing trim extension cover (2) and upper steering column trim cover.
  5. Verify that the tabs on the lower steering column trim cover (1) are fully engaged in the upper steering column trim cover and the slots in the steering column housing trim extension cover (2).
  6. Install the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement .
  7. Install the steering column tilt wheel release lever knob. Refer to Steering Column Tilt Wheel Release Lever Replacement .
